Product Model: HPE DL380 Gen10 8SFF CTO P19720-B21
Retail Price: US$2,377.00
Email Us To Get Special Price Today: [email protected]

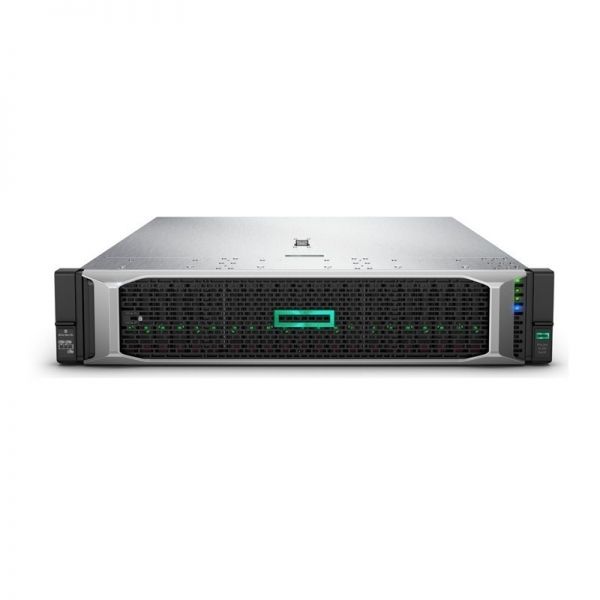

P19720-B21 is an HPE ProLiant DL380 Gen10 8-SFF NC CTO server. Adaptable for diverse workloads and environments, the secure 2P 2U HPE ProLiant DL380 Gen10 delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry’s most trusted compute platform.
Quick Spec
Table 1 shows the quick spec of DL380 Gen10 8-SFF NC CTO server.
|
Part Number |
P19720-B21 |
|
Description |
HPE ProLiant DL380 Gen10 8-SFF NC CTO server |
|
Form Factor |
2U rack |
|
Processors |
Up to 2 Intel Xeon processors |
|
Chipset |
Intel C621 Chipset |
|
Memory Type |
HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM) |
|
Memory Maximum capacity |
LRDIMM :3.0 TB, 24 x 128 GB LRDIMM @ 2933 MT/s RDIMM: 1.54 TB, 24 x 64 GB RDIMM @ 2933 MT/s Intel Optane Persistent Memory for HPE: 6.0 TB, 12 X 512 GB Memory Modules @ 2666 MT/s HPE NVDIMMs: 192 GB, 12 x 16 GB NVDIMM @ 2666 MT/s |
Product Details
Figure 1 shows the Front View – SFF chassis with optional Universal Media bay with optical and 2 NVME plus 16 NVMe shown.
Note:
|
1 |
Quick removal access panel |
|
2 |
Optional Universal Media bay. 2 USB 2.0 and Display port standard (8 SFF bay or 6 SFF+2NVMe or 8NVMe optional) |
|
3 |
Optional Optical drive. Requires Universal Media bay |
|
4 |
Optional USB 2.0 (via Universal Media Bay) |
|
5 |
Drive Bay 2. NVMe shown (8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional) |
|
6 |
8 SFF Drive Cage Bay |
|
7 |
Serial label pull tag |
|
8 |
Power On/Standby button and system power LED button |
|
9 |
Health LED |
|
10 |
NIC status |
|
11 |
UID button |
|
12 |
iLO Front Service Port |
|
13 |
USB 3.0 |
|
14 |
Box 3 |
|
15 |
Box 2 |
|
16 |
Box 1 |
|
17 |
Optional 2 SFF HDD, requires optional Universal Media bay |
|
18 |
Optional USB 2.0 (via Universal Media Bay) |
|
19 |
Optional front display port (Via Universal Media Bay) |
Figure 2 shows the back view.
Note:
|
1 |
Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown), optional 2SFF rear drives |
|
2 |
Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown, requires second riser card, and second processor). Showing optional 2 SFF rear |
|
3 |
Optional serial port |
|
4 |
Tertiary Riser (Slots 7-8). Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end) |
|
5 |
Power supply Power connection |
|
6 |
Power supply Power LED |
|
7 |
HPE Flexible Slot Power Supply bay 1 (800W shown) |
|
8 |
Power supply Power connection |
|
9 |
Power supply Power LED |
|
10 |
HPE Flexible Slot Power Supply bay 2 (800W shown) |
|
11 |
VGA connector |
|
12 |
Embedded 4 x 1GbE Network Adapter |
|
13 |
Dedicated iLO management port |
|
14 |
USB connectors 3.0 (2) |
|
15 |
Unit ID LED |
|
16 |
Optional FlexibleLOM ports (Shown: 4 x 1GbE) |
Parts Options
Table 2 shows the options of P19720-B21.
|
Part Number |
Description |
|
Processors |
|
|
P23547-B21 |
Intel Xeon-Bronze 3206R (1.9GHz/8-core/85W) FIO Processor Kit for HPE ProLiant DL380 Gen10 |
|
P23549-L21 |
Intel Xeon-Silver 4210R (2.4GHz/10-core/100W) FIO Processor Kit for HPE ProLiant DL380 Gen10 |
|
P23550-L21 |
Intel Xeon-Silver 4214R (2.4GHz/12-core/100W) FIO Processor Kit for HPE ProLiant DL380 Gen10 |
|
P15968-B21 |
Intel Xeon-Bronze 3206R (1.9GHz/8-core/85W) FIO Processor Kit for HPE ProLiant DL360 Gen10 |
|
P15974-B21 |
Intel Xeon-Silver 4210R (2.4GHz/10-core/100W) FIO Processor Kit for HPE ProLiant DL360 Gen10 |
|
P15977-B21 |
Intel Xeon-Silver 4214R (2.4GHz/12-core/100W) FIO Processor Kit for HPE ProLiant DL360 Gen10 |
|
Memory |
|
|
P00922-B21 |
HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
|
P00924-B21 |
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
|
P00926-B21 |
HPE 64GB (1x64GB) Quad Rank x4 DDR4-2933 CAS-21-21-21 Load Reduced Smart Memory Kit |
|
Hard Drive |
|
|
872479-B21 |
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) Sc 3yr Wty Digitally Signed Firmware HDD |
|
872481-B21 |
HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD |
|
870759-B21 |
HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Ds Digitally Signed Firmware HDD |
|
881457-B21 |
HPE 2.4TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD |
|
870757-B21 |
HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
P04556-B21 |
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
P04560-B21 |
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
P04564-B21 |
HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
P04566-B21 |
HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
P04556-B21 |
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
P04560-B21 |
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
Power Supply |
|
|
865408-B21 |
HPE 500W FS Plat Ht Plg LH Pwr Sply Kit |
|
865414-B21 |
HPE 800W FS Plat Ht Plg LH Pwr Sply Kit |
Compare to Similar Items
Table 3 shows the comparison.
|
Part Number |
P19717-B21 |
P19718-B21 |
P19720-B21 |
|
Description |
HPE DL380 Gen10 8LFF NC CTO Svr |
HPE DL380 Gen10 12LFF NC CTO Svr |
HPE DL380 Gen10 8SFF NC CTO Svr |
|
Processors |
Up to 2 Intel Xeon processors |
Up to 2 Intel Xeon processors |
Up to 2 Intel Xeon processors |
|
Chipset |
Intel C621 Chipset |
Intel C621 Chipset |
Intel C621 Chipset |
|
Memory Type |
HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM) |
HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM) |
HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM) |
|
Hard Drive |
8 LFF |
12 LFF |
8 SFF |
Get More Information
Do you have any question about the P19720-B21?
Contact us now via Live Chat or [email protected].
HPE DL380 Gen10 8SFF CTO P19720-B21 Datasheet
P19720-B21 Specification |
|
|
Description |
HPE ProLiant DL380 Gen10 8-SFF NC CTO server |
|
Processors |
Up to 2 Intel Xeon Scalable 8100/8200 Series Or Intel Xeon Scalable 6100/6200 Series Intel Xeon Scalable 5100/5200 Series Intel Xeon Scalable 4100/4200 Series Intel Xeon Scalable 3100/3200 Series 4 to 28 cores, depending on models |
|
Chipset |
Intel C621 Chipset |
|
Memory Type |
HPE DDR4 SmartMemory, Registered (RDIMM), Load Reduced (LRDIMM) |
|
Memory Maximum capacity |
LRDIMM :3.0 TB, 24 x 128 GB LRDIMM @ 2933 MT/s RDIMM: 1.54 TB, 24 x 64 GB RDIMM @ 2933 MT/s Intel Optane Persistent Memory for HPE: 6.0 TB, 12 X 512 GB Memory Modules @ 2666 MT/s HPE NVDIMMs: 192 GB, 12 x 16 GB NVDIMM @ 2666 MT/s |
|
Storage |
1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a and/or 1 HPE Smart Array P816i-a and/or 1 HPE Smart Array E208i-a, depending on model |
|
Dimensions |
SFF Drives: 8.73 x 44.54 x 67.94 cm / 3.44 x 17.54 x 26.75 in |
|
Rated Line Voltage |
For 1600W (Platinum): 200-240 VAC For 800W (Titanium) Power Supply: 200-240 VAC For 800W (Platinum): 100-240 VAC For 800W (Universal) Power Supply: 200-277 VAC For 800W (-48VDC): -40 Vdc to -72 Vdc 500W (Platinum) Power Supply: 100-240 VAC For 1600W (-48VDC): -40 to -72 |
|
Power Supplies |
Up to 2 HPE Flexible Slot Power Supplies |
|
Form Factor |
2U rack |
