Product Model: HPE DL380 Gen10 8SFF P06423-B21
Retail Price: US$3,602.30
Email Us To Get Special Price Today: [email protected]

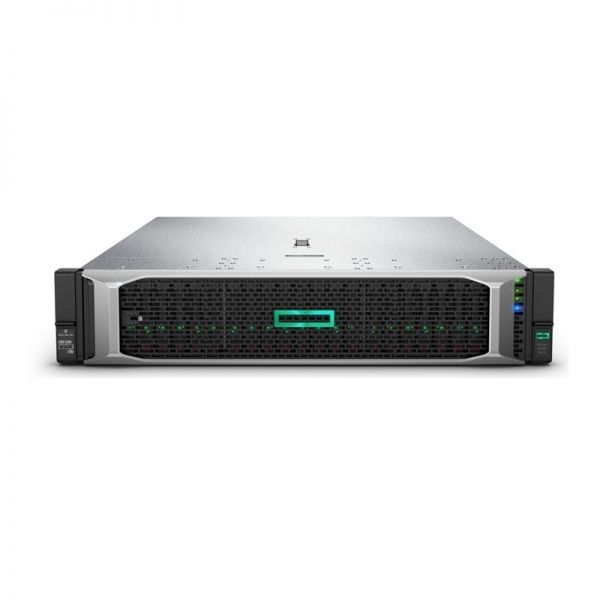

P06423-B21 is an HPE ProLiant DL380 Gen10 6130 2.1GHz 16-core 1P 64GB-R P408i-a 8SFF 800W RPS Performance Server.
Quick Spec
Table 1 shows the quick spec.
|
SKU Number |
P06423-B21 |
|
Model Name |
HPE ProLiant DL380 Gen10 6130 2.1GHz 16-core 1P 64GB-R P408i-a 8SFF 800W RPS Performance Server |
|
Chassis |
8SFF |
|
Processor |
6130 (16 core, 2.1 GHz, 125W) |
|
Number of Processors |
One processor With standard heatsink |
|
Memory |
64 GB RDIMM 2R 2666 MT/s (2x 32 GB) NOTE: Runs at 2666 MT/s. |
|
Network Controller |
HPE 1Gb Ethernet 4-Port 331i Adapter |
|
Storage Controller |
P408i-a/2GB with Smart Storage Battery |
|
PCIe Slots |
3 PCIe: 2 x16, 1 x8 |
|
Power Supply |
2x 800W |
|
Fans |
4 – Standard |
|
Management |
HPE iLO 5 |
Product Details
Figure 1 shows the Front View – SFF chassis with optional Universal Media bay with optical and 2 NVME plus 16 NVMe shown.
Note:
|
① |
Quick removal access panel |
|
② |
Optional Universal Media bay. 2 USB 2.0 and Display port standard (8 SFF bay or 6 SFF+2NVMe or 8NVMe optional) |
|
③ |
Optional Optical drive. Requires Universal Media bay |
|
④ |
Optional USB 2.0 (via Universal Media Bay) |
|
⑤ |
Drive Bay 2. NVMe shown (8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional) |
|
⑥ |
8 SFF Drive Cage Bay |
|
⑦ |
Serial label pull tag |
|
⑧ |
Power On/Standby button and system power LED button |
|
⑨ |
Health LED |
|
⑩ |
NIC status |
|
⑪ |
UID button |
|
⑫ |
iLO Front Service Port |
|
⑬ |
USB 3.0 |
|
⑭ |
Box 3 |
|
⑮ |
Box 2 |
|
⑯ |
Box 1 |
|
⑰ |
Optional 2 SFF HDD, requires optional Universal Media bay |
|
⑱ |
Optional USB 2.0 (via Universal Media Bay) |
|
⑲ |
Optional front display port (Via Universal Media Bay) |
Figure 2 shows the back view.
Note:
|
① |
Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown), optional 2SFF rear drives |
|
② |
Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown, requires second riser card, and second processor). Showing optional 2 SFF rear |
|
③ |
Optional serial port |
|
④ |
Tertiary Riser (Slots 7-8). Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end) |
|
⑤ |
Power supply Power connection |
|
⑥ |
Power supply Power LED |
|
⑦ |
HPE Flexible Slot Power Supply bay 1 (800W shown) |
|
⑧ |
Power supply Power connection |
|
⑨ |
Power supply Power LED |
|
⑩ |
HPE Flexible Slot Power Supply bay 2 (800W shown) |
|
⑪ |
VGA connector |
|
⑫ |
Embedded 4 x 1GbE Network Adapter |
|
⑬ |
Dedicated iLO management port |
|
⑭ |
USB connectors 3.0 (2) |
|
⑮ |
Unit ID LED |
|
⑯ |
Optional FlexibleLOM ports (Shown: 4 x 1GbE) |
Supported Hard Drives
Table 2 show the supported hard drives.
|
Model |
Description |
|
872475-B21 |
HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872477-B21 |
HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872479-B21 |
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
877776-B21 |
HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
872481-B21 |
HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD |
Compare to Similar item
Table 3 shows the comparison.
|
SKU Number |
P06421-B21 |
P06422-B21 |
P06423-B21 |
|
Model Name |
HPE ProLiant DL380 Gen10 4114 2.2GHz 10-core 1P 32GB-R P408i-a 8SFF 800W PS Performance Server |
HPE ProLiant DL380 Gen10 5118 2.3GHz 12-core 1P 64GB-R P408i-a 8SFF 800W RPS Performance Server |
HPE ProLiant DL380 Gen10 6130 2.1GHz 16-core 1P 64GB-R P408i-a 8SFF 800W RPS Performance Server |
|
Chassis |
8SFF |
8SFF |
8SFF |
|
Processor |
4114 (10 core, 2.2 GHz, 85W) |
5118 (12 core, 2.3 GHz, 105W) |
6130 (16 core, 2.1 GHz, 125W) |
|
Number of Processors |
One processor With standard heatsink |
One processor With standard heatsink |
One processor With standard heatsink |
|
Memory |
32 GB RDIMM 2R 2666 MT/s (1x 32 GB) NOTE: Runs at 2400 MT/s due to processor limitation. |
64 GB RDIMM 2R 2666 MT/s (2x 32 GB) NOTE: Runs at 2400 MT/s due to processor limitation. |
64 GB RDIMM 2R 2666 MT/s (2x 32 GB) NOTE: Runs at 2666 MT/s. |
|
Network Controller |
HPE 1Gb Ethernet 4-Port 331i Adapter |
HPE 1Gb Ethernet 4-Port 331i Adapter |
HPE 1Gb Ethernet 4-Port 331i Adapter |
|
Storage Controller |
P408i-a/2GB with Smart Storage Battery |
P408i-a/2GB with Smart Storage Battery |
P408i-a/2GB with Smart Storage Battery |
|
PCIe Slots |
3 PCIe: 2 x16, 1 x8 |
3 PCIe: 2 x16, 1 x8 |
3 PCIe: 2 x16, 1 x8 |
|
Power Supply |
1x 800W |
2x 800W |
2x 800W |
|
Fans |
4 – Standard |
4 – Standard |
4 – Standard |
|
Management |
HPE iLO 5 |
HPE iLO 5 |
HPE iLO 5 |
Get More Information
Do you have any question about the P06423-B21
Contact us now via Live Chat or [email protected].
HPE DL380 Gen10 8SFF P06423-B21 Datasheet
P06423-B21 Specification |
|
|
Model Name |
HPE ProLiant DL380 Gen10 6130 2.1GHz 16-core 1P 64GB-R P408i-a 8SFF 800W RPS Performance Server |
|
Chassis |
8SFF |
|
Processor |
6130 (16 core, 2.1 GHz, 125W) |
|
Number of Processors |
One processor With standard heatsink |
|
Memory |
64 GB RDIMM 2R 2666 MT/s (2x 32 GB) NOTE: Runs at 2666 MT/s. |
|
Network Controller |
HPE 1Gb Ethernet 4-Port 331i Adapter |
|
Storage Controller |
P408i-a/2GB with Smart Storage Battery |
|
Hard Drive |
None included |
|
Optical Drive |
None included |
|
PCIe Slots |
3 PCIe: 2 x16, 1 x8 |
|
Power Supply |
2x 800W |
|
Fans |
4 – Standard |
|
Management |
HPE iLO 5 |
|
Rail Kit |
SFF Easy Install with CMA |
|
Energy Star |
Energy Star 2.1 |
|
Form Factor |
2U Rack |
|
Dimensions |
8.73 x 44.54 x 67.94 cm 3.44 x 17.54 x 26.75 in |
