Product Model: HPE DL360 Gen10 8SFF P03629-B21
Retail Price: Price has expired
Email Us To Get Special Price Today: [email protected]
The HPE ProLiant DL360 Gen10 Server P03629-B21 delivers security, agility and flexibility without compromise. It supports the Intel® Xeon® Scalable processor with up to a 71% performance gain and 27% increase in cores, along with 2666 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB with an increase in performance of up to 66%. With the added performance that 12 NVDIMMs and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE iLO 5. Deploy this 2P secure platform for diverse workloads in space constrained environments.
Quick Spec

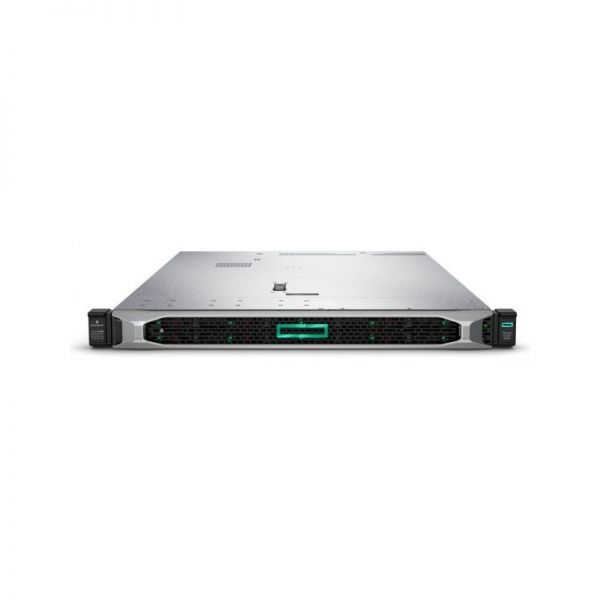

Figure 1 shows the appearance of HPE P03629-B21.
Table 1 shows the quick spec.
|
Product Model |
P03629-B21 |
|
Description |
HPE ProLiant DL360 Gen10 3204 1.7GHz 6-core 1P 16GBR S100i 8SFF 500W PS Entry Server |
|
Number of processors |
1 |
|
Processor core available |
6 |
|
Processor cache |
8.25 MB L3 |
|
Processor speed |
1.9 GHz |
|
Product dimensions (H x W x D) |
17.11 x 27.83 x 1.69 in |
Product Details
Figure 2 shows the front panel of HPE P03629-B21.
Note:
|
① |
Drive support label |
|
② |
Quick removal access panel |
|
③ |
Serial no. label pull tab |
|
④ |
Universal Media Bay Options: Option shown: +2 SFF SAS/SATA (total 10SFF) Option: +2 SFF NVMe drives Option: DVD-RW or DVD-ROM + Display port & USB 2.0 port Kit Option: +2 Dual uFF (4x M.2 cartridges) Option: Display port + USB 2.0 port Kit + Blank |
|
⑤ |
Power On/Standby button and system power LED |
|
⑥ |
Health LED |
|
⑦ |
NIC status LED |
|
⑧ |
UID button/LED |
|
⑨ |
USB 3.0 port |
|
⑩ |
iLO Service Port |
|
⑪ |
Standard 8 SAS/SATA/SSD drive bays |
Figure 3 shows the back panel of HPE P03629-B21.
Note:
|
① |
Slot 1 PCIe 3.0 port Option: Rear Drive +1 SFF or 1 uFF SSD (2x M.2 cartridges) |
|
② |
Slot 2 PCIe 3.0 |
|
③ |
Option: Slot 3 PCIe 3.0 (Requires 2nd processor) |
|
④ |
Power Supply 2 |
|
⑤ |
Power Supply 1 |
|
⑥ |
VGA port |
|
⑦ |
Embedded 4x 1GbE Adapter |
|
⑧ |
iLO Management Port |
|
⑨ |
Option: Serial Port |
|
⑩ |
USB 3.0 Ports |
|
⑪ |
Option: FlexibleLOM (Shown: 4x 1GbE) |
The Accessories
Table 2 shows the recommended elements for the HPE P03629-B21.
|
Product number |
Description |
|
872475-B21 |
HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872477-B21 |
HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
870753-B21 |
HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872479-B21 |
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
868818-B21 |
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
875503-B21 |
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
Compare to Similar Items
Table 3 shows the comparison between HPE P03629-B21 and HPE 826565-B21.
|
Product Model |
P03629-B21 |
826565-B21 |
|
Description |
HPE ProLiant DL360 Gen10 3204 1.7GHz 6-core 1P 16GBR S100i 8SFF 500W PS Entry Server |
HPE ProLiant DL380 Gen10 4114 1P 32GB-R P408i-a 8SFF 500W PS Base Server |
|
Number of processors |
1 |
1 |
|
Processor core available |
6 |
10 |
|
Processor cache |
8.25 MB L3 |
13.75 MB L3 |
|
Processor speed |
1.9 GHz |
2.2 GHz |
Get more information
Do you have any question about the HPE P03629-B21 Sever
Contact us now via Live Chat or [email protected].
HPE DL360 Gen10 8SFF P03629-B21 Datasheet
HPE P03629-B21 Specification |
|
|
Description |
HPE ProLiant DL360 Gen10 3204 1.7GHz 6-core 1P 16GBR S100i 8SFF 500W PS Entry Server |
|
Processor |
Intel® Xeon® Scalable 3204 (6 core, 1.9 GHz, 8.25 MB, 85W) |
|
Processor family |
Intel® Xeon® Scalable 3200 series |
|
Processor number |
1 |
|
Processor core available |
6 |
|
Processor cache |
8.25 MB L3 |
|
Processor speed |
1.9 GHz |
|
Form factor |
1U |
|
Power supply type |
1 HPE 500W Flex Slot Platinum hot-plug power supply kit |
|
Expansion slots |
2 PCIe 3.0, for detailed descriptions reference the QuickSpecs |
|
Maximum memory |
768 GB memory supported differs by processor selection |
|
Memory, standard |
16 GB (1x 16 GB) RDIMM |
|
Memory slots |
24 DIMM slots |
|
Included hard drives |
None ship standard, supports 8 SFF drives |
|
Optical drive type |
Optional |
|
System fan features |
5 Hot-plug standard dual rotor redundant fans |
|
Network controller |
Broadcom 4x 1GbE |
|
Storage controller |
Smart Array S100i |
|
Product dimensions (H x W x D) |
17.11 x 27.83 x 1.69 in |
|
Infrastructure management |
HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses) |
