Product Model: P02487-AA1
Retail Price: US$1,846.00
Email Us To Get Special Price Today: [email protected]

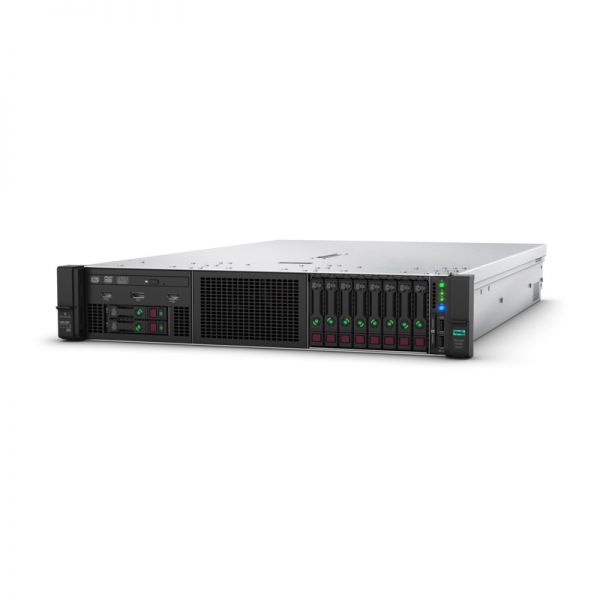

P02487-AA1 is the HPE Proliant DL388 Gen10 4210 1P 16GB-R P408i-A 8SFF 800W PS Server.
Product Details
Figure 1 shows the SFF front panel components.
Note:
|
① |
Box 1 (optional drives or universal media bay, see figure 2) |
③ |
Box 3 Drives 1-8 |
⑤ |
USB 3.0 port |
|
② |
Box 2 (optional drives) |
④ |
Serial label pull tab or optional Systems Insight Display |
⑥ |
iLO service port |
Figure 2 shows the Universal media bay components. It needs to be purchased separately.
Note:
|
① |
② |
③ |
④ |
⑤ |
|
USB 2.0 port |
Video display port |
Optical disk drive (optional) |
USB 2.0 port |
Drives (optional) |
Figure 3 shows the rear panel components. These installed drives need to be purchased separately.
Note：
|
① |
Primary riser slots 1-3 (Optional drive cage) |
⑤ |
Power supply 2 |
⑨ |
iLO management port |
|
② |
Optional riser slots 4-6 (Optional drive cage) |
⑥ |
Video port |
⑩ |
USB 3.0 ports |
|
③ |
Optional riser slots 7-8 (Optional drive cage) |
⑦ |
Serial port (optional)* |
FlexibleLOM slot |
|
|
④ |
Power supply 1 |
⑧ |
1Gb RJ-45 ports 1–4 |
|
|
*When a tertiary riser cage is installed as shown, the serial port can be installed in riser slot 6.
Supported Hard Drives
Table 1 shows the supported SFF hard drives.
|
Product number |
Description |
|
872475-B21 |
HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872477-B21 |
HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
870753-B21 |
HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872479-B21 |
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
868818-B21 |
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
875503-B21 |
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
