Product Model: HPE DL380 Gen10 8SFF P02462-B21
Retail Price: US$2,023.00
Email Us To Get Special Price Today: [email protected]
The HPE ProLiant DL380 Gen10 P02462-B21 Server delivers Intel Xeon 4208 processor (2.1GHz 8-core) , 16GB-R memory, P408ia controller, 8SFF hard drive slots and 500W power supply.
Quick Spec

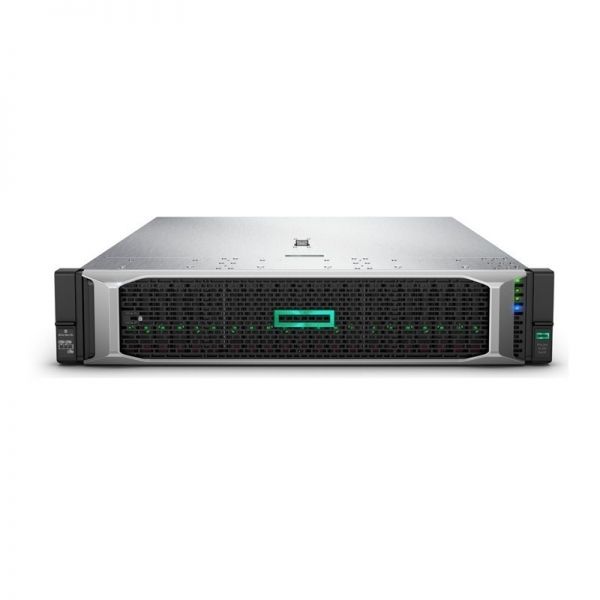

Figure 1 shows the appearance of HPE P02462-B21.
Table 1 shows the quick spec.
|
Product Model |
P02462-B21 |
|
Description |
HPE ProLiant DL380 Gen10 4208 2.1GHz 8-core 1P 16GB-R P408ia 8SFF 500W PS Server |
|
processors |
1 * Intel Xeon Silver 4208 Processor (8 core, 2.1 GHz, 11 MB, 85W） |
|
Memories |
16GB |
|
Power supply |
500W HPE Flexible Slot Power Supplies |
|
Hard Disks |
8SFF |
|
Product dimensions (H x W x D) |
17.54 x 28.75 x 3.44 in |
Product Details
Figure 2 shows the front panel of HPE P02462-B21.
Note:
|
① |
Quick removal access panel |
|
② |
Optional Universal Media bay. 2 USB 2.0 and Display port standard (8 SFF bay or 6 SFF+2NVMe or 8NVMe optional) |
|
③ |
Optional Optical drive. Requires Universal Media bay |
|
④ |
Optional 2 SFF HDD, requires optional Universal Media bay |
|
⑤ |
Drive Bay 2. NVMe shown (8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional) |
|
⑥ |
8 SFF Drive Cage Bay |
|
⑦ |
Power On/Standby button and system power LED button |
|
⑧ |
Health LED |
|
⑨ |
NIC status |
|
⑩ |
UID button |
|
⑪ |
iLO Front Service Port |
|
⑫ |
USB 3.0 |
|
⑬ |
Serial label pull tag |
|
⑭ |
Box 3 |
|
⑮ |
Box 2 |
|
⑯ |
Box 1 |
|
⑰ |
Optional front display port (Via Universal Media Bay) |
|
⑱ |
Optional USB 2.0 (via Universal Media Bay) |
Figure 3 shows the back panel of HPE P02462-B21.
Note:
|
① |
Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown), optional 2SFF rear drives |
|
② |
Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown, requires second riser card, and second processor). Showing optional 2 SFF rear |
|
③ |
Optional serial port |
|
④ |
Tertiary Riser (Slots 7-8). Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end) |
|
⑤ |
Power supply Power LED |
|
⑥ |
Power supply Power connection |
|
⑦ |
HPE Flexible Slot Power Supply bay 1 (800W shown) |
|
⑧ |
Power supply Power connection |
|
⑨ |
Power supply Power LED |
|
⑩ |
HPE Flexible Slot Power Supply bay 2 (800W shown) |
|
⑪ |
VGA connector |
|
⑫ |
Embedded 4 x 1GbE Network Adapter |
|
⑬ |
Dedicated iLO management port |
|
⑭ |
USB connectors 3.0 (2) |
|
⑮ |
Unit ID LED |
|
⑯ |
Optional FlexibleLOM ports (Shown: 4 x 1GbE) |
Compare to Similar Items
Table 2 shows the comparison between HPE P02462-B21 and HPE 826566-B21.
|
Product Model |
P02462-B21 |
826566-B21 |
|
Description |
HPE ProLiant DL380 Gen10 4208 2.1GHz 8-core 1P 16GB-R P408ia 8SFF 500W PS Server |
HPE ProLiant DL380 Gen10 5118 2P 64GB-R P408i-a 8SFF 2×800W PS Performance Server |
|
Number of processors |
1 |
2 |
|
Processor core available |
8 |
12 |
|
Processor cache |
11 MB L3 |
16.5 MB L3 |
|
Processor speed |
2.1 GHz |
2.3GHz |
|
Product dimensions (H x W x D) |
17.54 x 28.75 x 3.44 in |
17.54 x 28.75 x 3.44 in |
Get more information
Do you have any question about the HPE P02462-B21 Sever
Contact us now via Live Chat or [email protected].
HPE DL380 Gen10 8SFF P02462-B21 Datasheet
P02462-B21 Specification |
|
|
Description |
HPE ProLiant DL380 Gen10 4208 2.1GHz 8-core 1P 16GB-R P408ia 8SFF 500W PS Server |
|
Processor |
Intel Xeon Silver 4208 Processor |
|
Processor family |
Intel Xeon Scalable 4200 series |
|
Number of processors |
1 |
|
Processor core |
8 |
|
Processor cache |
11 MB L3 |
|
Processor speed |
2.1 GHz |
|
Form factor |
2U |
|
Power supply type |
HPE 500W Flex Slot Platinum hot plug power supplies |
|
Expansion slots |
3 PCIe 3.0 |
|
Maximum memory |
1.5 TB, memory supported differs by processor selection |
|
Memory |
16 GB |
|
Memory slots |
24 DIMM slots |
|
Memory type |
HPE DDR4 SmartMemory |
|
Included hard drives |
None ship standard, 8 SFF drives supported |
|
Optical drive type |
Optional via Universal Media Bay |
|
System fan features |
4 single rotor fans included |
|
Storage controller |
1 HPE Smart Array S100i and 1 HPE Smart Array P408i-a SR Gen10 controller |
|
Product dimensions (H x W x D) |
17.54 x 28.75 x 3.44 in |
|
Infrastructure management |
HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (optional) |
