Product Model: HPE DL360 Gen10 4LFF P01880-B21
Retail Price: US$1,420.35
Email Us To Get Special Price Today: [email protected]
P01880-B21 is the HPE DL360 Gen10 3104 1P 8GB 4LFF WW Svr Server.
Quick Spec

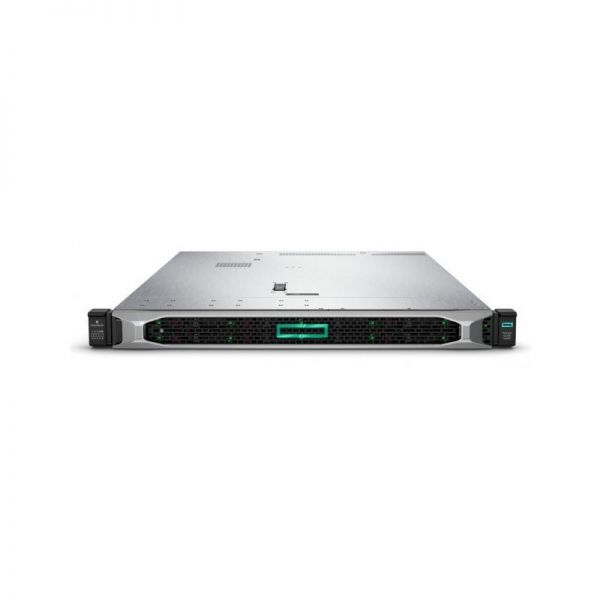

Figure 1 shows the appearance of?HPE DL360 Gen10 4 LFF Server Front View – Standard 4 LFF shown.
Table 1 shows the quick spec.
|
Product Model |
P01880-B21 |
|
Description |
HPE DL360 Gen10 3104 1P 8GB 4LFF WW Svr Server |
|
Number of processors |
1 |
|
Processor core available |
6 |
|
Processor cache |
8.25 MB L3 |
|
Processor speed |
1.7 GHz |
|
Product dimensions (H x W x D) |
1.69 x 17.11 x 29.5 in |
|
Weight |
30.36 lb minimum 37 lb maximum |
Product Details
Figure 2 shows the?front panel?of?HPE DL360 Gen10 4LFF Server Front ports.
?
Note:
|
① |
Drive support label |
|
② |
Quick removal access panel |
|
③ |
Option: DVD-RW or DVD-ROM (blank shown) |
|
④ |
Serial no. label pull tab |
|
⑤ |
Option: Display port & USB 2.0 port Kit (blank shown) |
|
⑥ |
Option: System insight Display (SID) – standard shown |
|
⑦ |
iLO Service Port |
|
⑧ |
USB 3.0 Port |
|
⑨ |
UID button/LED, Power On/Standby button and system power LED, Health LED, NIC status LED |
|
⑩ |
SAS/SATA/SSD drive bays |
Figure?3 shows the back panel of?HPE DL360 Gen10 Server Back View.
Note:
|
① |
Slot 1 PCIe 3.0 port Option: Rear Drive +1 SFF or 1 uFF SSD (2x M.2 cartridges) |
|
② |
Slot 2 PCIe 3.0 |
|
③ |
Option: Slot 3 PCIe 3.0?(Requires 2nd?processor) |
|
④ |
Power Supply 2 |
|
⑤ |
Power Supply 1 |
|
⑥ |
VGA port |
|
⑦ |
Embedded 4x 1GbE Adapter |
|
⑧ |
iLO Management Port |
|
⑨ |
Option: Serial Port |
|
⑩ |
USB 3.0 Ports |
|
? |
Option: FlexibleLOM (Shown: 4x 1GbE) |
The Accessories
Table?2?shows the recommended elements.
|
Product number |
Description |
|
846510-B21 |
HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD |
|
872487-B21 |
HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD |
|
877748-B21 |
HPE 480GB SATA 6G Read Intensive LFF (3.5in) SCC 3yr Wty Digitally Signed Firmware SSD |
|
872491-B21 |
HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD |
|
861756-B21 |
HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD |
Compare to Similar Items
Table 3 shows the comparison between P01880-B21 and 874462-S01.
|
Product Model |
P01880-B21 |
874462-S01 |
|
Description |
HPE DL360 Gen10 3104 1P 8GB 4LFF WW Svr Server |
HPE DL360 Gen10 6132 1P32G 8SFF Svr Server/S-B |
|
Number of processors |
1 |
1 |
|
Processor core available |
6 |
14 |
|
Processor cache |
8.25 MB L3 |
19.25 MB L3 |
|
Processor speed |
1.7 GHz |
2.6 GHz |
Get More Information
Do you have any question about the P01880-B21
Contact us now via Live Chat or [email protected].
HPE DL360 Gen10 4LFF P01880-B21 Datasheet
HPE P01880-B21 Specification |
|
|
Description |
HPE DL360 Gen10 3104 1P 8GB 4LFF WW Svr Server |
|
Processor |
Intel Xeon-Bronze 3104 (1.7GHz/6-core/85W) processor |
|
Processor family |
Intel® Xeon® Scalable 3100 series |
|
Number of processors |
1 |
|
Processor number |
Up to 2 |
|
Processor core available |
6 |
|
Processor cache |
8.25 MB L3 |
|
Processor speed |
1.7 GHz |
|
Form factor |
1U |
|
Power supply type |
1 HPE 500W Flex Slot Platinum hot-plug power supply kit |
|
Expansion slots |
2 PCIe 3.0 |
|
Maximum memory |
768 GB memory supported differs by processor selection |
|
Memory, standard |
16 GB (1x 16 GB) RDIMM |
|
Memory slots |
24 DIMM slots |
|
Included hard drives |
None ship standard, supports 4 LFF drives |
|
Optical drive type |
Optional |
|
System fan features |
5 Hot-plug standard dual rotor redundant fans |
|
Network controller |
Broadcom 4x 1GbE |
|
Storage controller |
Smart Array S100i |
|
Product dimensions (H x W x D) |
17.11 x 27.83 x 1.69 in |
|
Weight |
28.74 lb minimum 35.86 lb maximum |
|
Infrastructure management |
HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses) |
