N9K-C93600CD-GX – Cisco Nexus 9000 Series Price & Product Datasheet

Product Model: N9K-C93600CD-GX

Retail Price: US$11,775.00

Email Us To Get Special Price Today: [email protected]

N9K-C93600CD-GX is the Cisco Nexus 9316D Spine and Leaf switch with 28p 100/40G QSFP28 and 8p 400/100G QSFP-DD. Based on Cisco? Cloud Scale technology, the Cisco Nexus? 9300-GX switches are the next generation of fixed Cisco Nexus 9000 Series Switches. The platform introduces a fully backward-compatible 400G optical interface Quad Small Form-Factor Pluggable ¨C Double Density (QSFP-DD) to transparently migrate existing data center fabrics from 40-Gbps and 100-Gbps speeds to 400 Gbps. The platform provides investment protection for customers, delivering highly flexible layer 2 and layer 3 scalability, and performance to meet the changing needs of virtualized data centers and automated cloud environments.

Cisco provides two modes of operation for Cisco Nexus 9000 Series Switches. Organizations can deploy Cisco Application Centric Infrastructure (Cisco ACI?) or Cisco Nexus switch environments (Cisco NX-OS mode). The Cisco ACI solution is a holistic, intent-driven architecture with centralized automation and policy-based application profiles. It provides a robust, transport network for dynamic workloads and is built on a network fabric that combines time-tested protocols with new innovations to create a highly flexible, scalable, and resilient architecture of low-latency, high-bandwidth links. This fabric delivers a network that can support the most demanding and flexible data center environments.

Quick Spec

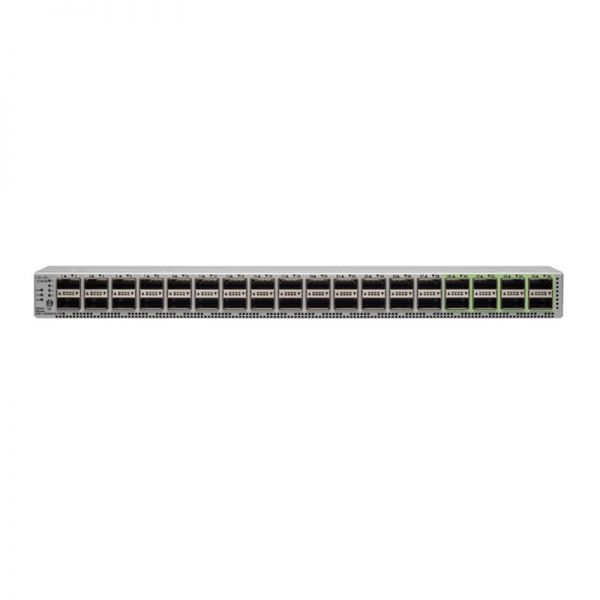

Figure 1 shows the Cisco Nexus 93600CD Switch.

Table 1 shows the quick spec.

SKU	N9K-C93600CD-GX
Ports	28 x 100/40-Gbps QSFP28 ports and 8 x 400/100-Gbps QSFP-DD ports
System memory	16 GB NX-OS, 24 GB ACI
Solid-State Disk (SSD)	128 GB
USB	1 port
RS-232 serial console ports	1
Management ports	2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)
Broadwell-DE CPU	4 cores
Dimensions (H x W x D)	1.72 x 17.37 x 25.5 in. (4.37 x 44.13 x 64.8 cm)

Product Details

Cisco ACI overview

Cisco ACI is an industry-leading secure, open, and comprehensive Software-Defined Networking (SDN) solution. It radically simplifies, optimizes, and accelerates infrastructure deployment and governance and expedites the application deployment lifecycle. Cisco ACI provides policy-driven automation through an integrated underlay and overlay, is hypervisor-agnostic; and extends policy automation to any workload, including virtual machines, physical bare-metal servers, and containers.

Cisco ACI delivers an intent-based networking framework to enable agility in the data center. It captures higher-level business and user intent in the form of a policy and translates this intent into the network constructs necessary to dynamically provision the network, security, and infrastructure services. It uses a holistic systems-based approach, with tight integration between hardware and software and physical and virtual elements, an open ecosystem model, and innovative Cisco custom ASICs to enable unique business value for modern data centers. This unique approach uses a common, policy-based operating model across the network, drastically reducing the cost and complexity in operating your network.

Cisco ¡°ACI Anywhere¡± is a comprehensive solution: with one intent, using any hypervisor, for any workload, in any location, and in any cloud. Cisco ¡°ACI Anywhere¡± offers a set of capabilities that enable seamless connectivity between an on-premises data center, remote, small-scale data centers, and geographically dispersed multiple data centers under a single-pane-of-policy orchestration. In future, these capabilities will extend to public cloud as well.

Figure 2 shows the Cisco ACI architectural building blocks.

The Cisco Nexus GX Series also introduces support of single-chip ACI spine-and-leaf functionality to enable customers to use a given GX series device, either in ACI spine or ACI leaf deployment for fully flexible deployments.

Table 2 shows the ACI support.

Item	N9K-C9316D-GX	N9K-C93600CD-GX
ACI spine	Yes	Future
ACI leaf	Future	Yes

The Accessories

Table 3 shows the recommended accessories.

Part number	Product description
Fan options
NXA-FAN-35CFM-PI	Nexus Fan, Nexus 2000, 3000, 9000 Single Fan, 35CFM, port side intake airflow
NXA-FAN-35CFM-PE	Nexus Fan, Nexus 2000, 3000, 9000 Single Fan, 35CFM, port side exhaust airflow
Power supply options
NXA-PAC-1100W-PI2	Nexus AC 1100W PSU Spare – port side intake
NXA-PAC-1100W-PE2	Nexus AC 1100W PSU Spare – port side exhaust
NXA-PDC-1100W-PI	Nexus 1100W Platinum DC PS, port side intake
NXA-PDC-1100W-PE	Nexus 1100W Platinum DC PS, port side exhaust
NXA-PHV-1100W-PI	Nexus 1100W Platinum HV-AC-DC PS, port side intake
NXA-PHV-1100W-PE	Nexus 1100W Platinum HV-AC-DC PS, port side exhaust
Accessories
N9K-C9300-RMK	Nexus 9000 Fixed Rack Mount Kit
N9K-C9300-ACK	Nexus 9000 Fixed Accessory Kit

Compare to Similar Item

Table 4 shows the comparison.

Device	N9K-C9316D-GX	N9K-C93600CD-GX
Ports	¡ñ   16 x 400/100/40-Gbps QSFP-DD ports	¡ñ   28 x 100/40-Gbps QSFP28 ports and 8 x 400/100-Gbps QSFP-DD ports
Physical	¡ñ   System memory: 16 GB NX-OS, 24 GB ACI     ¡ñ   Solid-State Disk (SSD): 128 GB     ¡ñ   USB: 1 port     ¡ñ   RS-232 serial console ports: 1     ¡ñ   Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)     ¡ñ   Broadwell-DE CPU: 4 cores     ¡ñ   Dimensions (H x W x D): 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)	¡ñ   System memory: 16 GB NX-OS, 24 GB ACI     ¡ñ   Solid-State Disk (SSD): 128 GB     ¡ñ   USB: 1 port     ¡ñ   RS-232 serial console ports: 1     ¡ñ   Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)     ¡ñ   Broadwell-DE CPU: 4 cores     ¡ñ   Dimensions (H x W x D): 1.72 x 17.37 x 25.5 in. (4.37 x 44.13 x 64.8 cm)
Packet buffer	¡ñ   80 MB centralized buffer	¡ñ   80 MB centralized buffer
