Product Model: N9K-C9336PQ

Retail Price: US$19,610.00

Email Us To Get Special Price Today: [email protected]

N9K-C9336PQ is the Nexus 9336 ACI Spine switch with 36p 40G QSFP. The Cisco Nexus 9336PQ ACI Spine Switch is a 2-Rack-Unit (2RU) spine switch for Cisco ACI that supports 2.88 Tbps of bandwidth and 2.3 billion packets per second (bpps) across 36 fixed 40 QSFP+ ports. Cisco Nexus 9300 platform leaf switches are Layer 2 and 3 nonblocking 10 and 40 Gigabit Ethernet switches with up to 2.56 Terabits per second (Tbps) of internal bandwidth.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	N9K-C9336PQ
Physical	● ? 36-port 40G QSFP ports ● ? 1200 watt (W) AC power supplies or 930W DC power supplies (up to 2) ● ? 80 Plus Platinum-rated power supplies that provide at least 90% efficiency with 20% utilization ● ? Hot-swappable, dual fan trays with redundant fans ● ? Port-side intake or Port side exhaust airflow direction ● ? System memory: 16GB ● ? SSD: 64GB ● ? USB: 2 ports ● ? RS-232 serial console ports: 1 ● ? Management ports: 1 x 10/100/1000BASE-T
Physical (H x W x D)	3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm)
Weight (chassis)	34.4 lb

Product Details

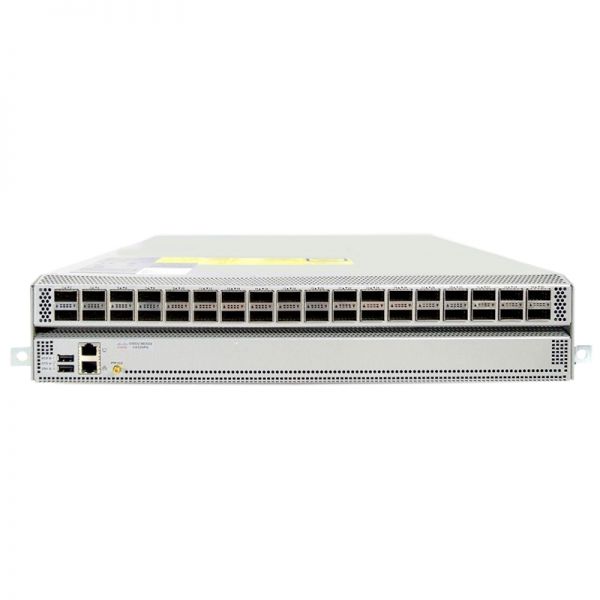

Figure 1 shows the front panel of N9K-C9336PQ.

Note: ¢Ù 36 40-Gigabit QSFP+ ports ¢Ú USB ports ¢Û Out-of-band management port (RJ-45 port) ¢Ü Console port (RJ232 port)

Figure 2 shows the back panel of N9K-C9336PQ.

Note:?¢Ù Power supplies (2) (AC power supply shown) ¢Ú Fan modules (2)

The Accessories

Table 2 shows the supported accessories.

Model	Description
N9K-C9300-FAN3	Nexus 9300 Fan 3, Port-side Intake
N9K-C9300-FAN3-B	Nexus 9300 Fan 3, Port-side Exhaust
NXA-FAN-160CFM-PI	Nexus Fan, 160CFM, port side intake airflow
NXA-FAN-160CFM-PE	Nexus Fan, 160CFM, port side exhaust airflow
NXA-FAN-35CFM-PI	Nexus Fan, 35CFM, port side intake airflow
NXA-FAN-35CFM-PE	Nexus Fan, 35CFM, port side exhaust airflow
N9K-PAC-1200W	Nexus 9300 1200W AC PS, Port-side Intake
N9K-PAC-1200W-B	Nexus 9300 1200W AC PS, Port-side Exhaust
NXA-PAC-1100W-PE2	Nexus 1100W AC PS, Port-side Exhaust
NXA-PAC-1100W-PI2	Nexus 1100W AC PS, Port-side Intake
NXA-PAC-1200W-PE	Nexus 1200W AC PS, Port-side Exhaust
NXA-PAC-1200W-PI	Nexus 1200W AC PS, Port-side Intake
N9K-PUV-1200W	Nexus 1200W, 200-277AC,240-380DC, Dual airflow PSU
UCS-PSU-6332-DC	930W -48V DC PS, Port-side Exhaust
UCSC-PSU-930WDC	930W -48V DC PS, Port-side Intake
NXA-PDC-930W-PE	Nexus 930W -48V DC PS, Port-side Exhaust
NXA-PDC-930W-PI	Nexus 930W -48V DC PS, Port-side Intake

Compare to Similar Items

Table 3 shows the comparison.

Product Code	N9K-C9336PQ	N9K-C9332C
Physical	● ? 36-port 40G QSFP ports ● ? 1200 watt (W) AC power supplies or 930W DC power supplies (up to 2) ● ? 80 Plus Platinum-rated power supplies that provide at least 90% efficiency with 20% utilization ● ? Hot-swappable, dual fan trays with redundant fans ● ? Port-side intake or Port side exhaust airflow direction ● ? System memory: 16GB ● ? SSD: 64GB ● ? USB: 2 ports ● ? RS-232 serial console ports: 1 ● ? Management ports: 1 x 10/100/1000BASE-T	● ? 32-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports ● ? 1100 watt (W) AC, DC or HVAC/HVDC power supplies (up to 2) ● ? Hot-swappable, 5 fans with redundancy ● ? System memory: 16 GB ● ? SSD: 256GB ● ? USB: 1 port ● ? RS-232 serial console ports: 1 ● ? Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+) ● ? Broadwell-DE CPU: 4 cores
Physical (H x W x D)	3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm)	1.7 x 17.3 x 22.9 in. (4.4 x 43.9 x 58.1 cm)
Weight (chassis)	34.4 lb	25.1lb (11.4kg) with power supplies and fans, 19 lb (8.6kg) without power supplies and fans

Before Purchasing

Do you have any question about the Cisco N9K-C9336PQ

Specification

N9K-C9336PQ Datasheet

N9K-C9336PQ Specification
Physical	¡ñ 36-port 40G QSFP ports ¡ñ 1200 watt (W) AC power supplies or 930W DC power supplies (up to 2) ¡ñ 80 Plus Platinum-rated power supplies that provide at least 90% efficiency with 20% utilization ¡ñ Hot-swappable, dual fan trays with redundant fans ¡ñ Port-side intake or Port side exhaust airflow direction ¡ñ System memory: 16GB ¡ñ SSD: 64GB ¡ñ USB: 2 ports ¡ñ RS-232 serial console ports: 1 ¡ñ Management ports: 1 x 10/100/1000BASE-T
Power and Cooling	¡ñ Power: 1200W AC, 930W DC or 1200W HVAC/HVDC ¡ñ Input voltage: 100 to 240V* AC or -40V to -72V DC (min?max), -48V to -60V DC (nominal) *Supports input voltage of 100-120V for a max output of 800W; 200-240V for a max output of 1200W ¡ñ Frequency: 50 to 60 Hz (AC) ¡ñ Efficiency: 90% or greater (20 to 100% load) ¡ñ RoHS compliance: Yes ¡ñ Hot swappable: Yes ¡ñ Port-side intake or port-side exhale options ¡ñ Typical power: 400W (AC) ¡ñ Maximum power: 660W (AC)
Environmental	¡ñ Physical (H x W x D): 3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm) ¡ñ Weight: 34.4 lb ¡ñ Operating temperature: 32 to 104°F (0 to 40°C) ¡ñ Nonoperating (storage) temperature: -40 to 158°F (-40 to 70°C) ¡ñ Humidity: 5 to 95% (noncondensing) ¡ñ Altitude: 0 to 13,123 ft (0 to 4000m)
Acoustics	¡ñ Fan speed at 40%: 64.4 dBA ¡ñ Fan speed at 70%: 79.6 dBA ¡ñ Fan speed at 100%: 89.8 dBA
MTBF	¡ñ 242,000 hours
Regulatory compliance	Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC
Safety	¡ñ UL 60950-1 Second Edition ¡ñ CAN/CSA-C22.2 No. 60950-1 Second Edition ¡ñ EN 60950-1 Second Edition ¡ñ IEC 60950-1 Second Edition ¡ñ AS/NZS 60950-1 ¡ñ GB4943
EMC: Emissions	¡ñ 47CFR Part 15 (CFR 47) Class A ¡ñ AS/NZS CISPR22 Class A ¡ñ CISPR22 Class A ¡ñ EN55022 Class A ¡ñ ICES003 Class A ¡ñ VCCI Class A ¡ñ EN61000-3-2 ¡ñ EN61000-3-3 ¡ñ KN22 Class A ¡ñ CNS13438 Class A
EMC: Immunity	¡ñ EN55024 ¡ñ CISPR24 ¡ñ EN300386 ¡ñ KN 61000-4 series
RoHS	The product is RoHS-6 compliant with exceptions for leaded-Ball Grid-Array (BGA) balls and lead press-fit connectors
