Product Model: N3224PX-ON
Retail Price: US$5,818.00
Email Us To Get Special Price Today: [email protected]

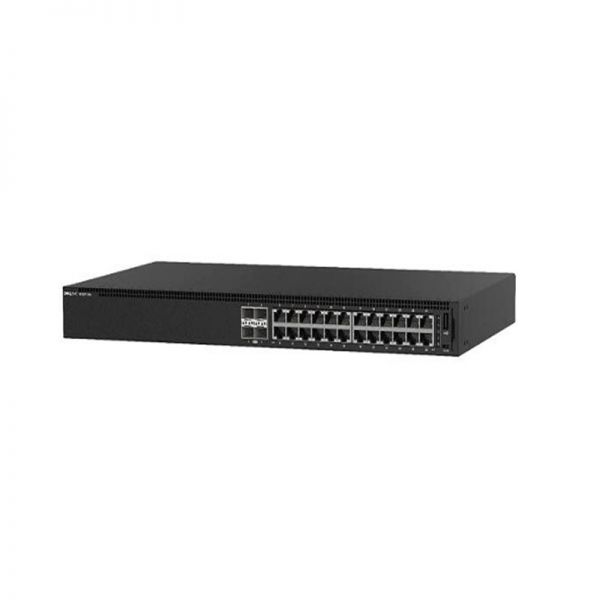

The Dell N3224PX-ON is a highly versatile and powerful network switch designed to meet the demands of modern networking environments. Featuring 24 RJ-45 ports capable of supporting 1G, 2.5G, 5G, and 10G speeds, along with 4 SFP28 and 2 QSFP28 ports, this switch offers exceptional connectivity and flexibility. With PoE support of up to 90W per port, 1 AC power supply unit, and running on OS6, the N3224PX-ON ensures efficient and reliable network performance.
Quick Spec
| RJ-45 Ports | 24x (1/2.5/5/10G) |
| SFP28 Ports | 4x 25G |
| QSFP28 Ports | 2x 100G |
| PoE | Up to 90W per port |
| Power Supply | 1x AC PSU |
Product Datasheet
- Support for multiple Ethernet speeds (1G, 2.5G, 5G, and 10G) on RJ-45 ports.
- High-speed uplinks with 4x 25G SFP28 and 2x 100G QSFP28 ports.
- Power over Ethernet (PoE) capability up to 90W per port.
- Equipped with a highly reliable AC power supply unit.
- Runs on the robust and feature-rich OS6 operating system.
Product Applications
- Ideal for high-density enterprise deployments requiring advanced connectivity and PoE support.
- Suitable for educational institutions needing flexible and scalable network solutions.
- Optimal for data centers that demand high-speed uplink capabilities and reliable performance.
Supported Options
| Transceiver Module | Model SFP-25G-SR |
| Power Supply Unit | Model PSU-AC-600W |
| Mounting Kit | Model RCK-MNT-KIT |
Compare to Similar Items
| Model | Differences |
| Dell N3248PX-ON | 48x RJ-45 ports, double the port density |
| Cisco C9200-24T | Offers 24 ports with 1G fixed speed, different OS |
| HP 5700-24XGT | No PoE support, lacks 25G and 100G uplink options |
Before Purchasing
Contact us through Live Chat or at [email protected] for further details about the Dell N3224PX-ON and its pricing.
Specification
N3224PX-ON Datasheet
Dell N3224PX-ON Specifications | |
| Brand | Dell |
| Model | N3224PX-ON |
| Ports | 24x 1/2.5/5/10G RJ-45 |
| Uplink Ports | 4x 25G SFP28, 2x 100G QSFP28 |
| PoE Support | 90W PoE |
| Power Supply | 1x AC PSU |
| Airflow Direction | IO/PS |
| Operating System | OS6 |
| Layer | Layer 2 and Layer 3 |
| Switching Capacity | 1.28 Tbps |
| Forwarding Rate | 950 Mpps |
| Packet Buffer Memory | 16 MB |
| Flash Memory | 8 GB |
| RAM | 4 GB |
| Dimensions | 1.73 in x 17.3 in x 15.16 in |
| Mounting | Rack-mountable |
| Management | Web-based, CLI, SNMP |
| Redundant power supply | Supported |
| Fans | Hot-swappable |
| Operating Temperature | 0??C to 45??C |
| Warranty | Lifetime limited warranty |
