Product Model: N3024ET-ON
Retail Price: US$2,462.00
Email Us To Get Special Price Today: [email protected]

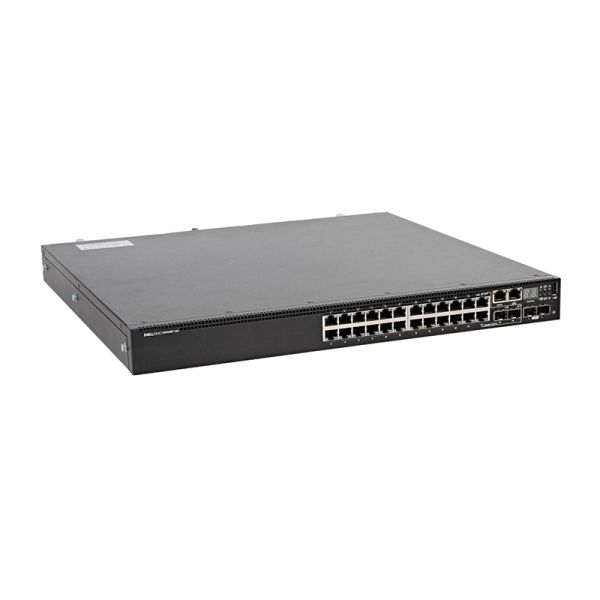

Dell N3024ET-ON offers a power-efficient and resilient Gigabit Ethernet (GbE) switching solution with integrated 10GbE uplinks for advanced Layer 3 distribution for offices and campus networks. The series has high-performance capabilities and wire-speed performance utilizing a non-blocking architecture to easily handle unexpected traffic loads.
Quick Specs
Table 1 shows the Quick Specs.
|
SKU |
N3024ET-ON |
|
Dimensions in inches |
1.7126 x 17.0866 x 16.0236 |
|
Dimensions in millimeters |
43.5 x 434.0 x 407.0 |
|
Power Supply (Watts) |
200 |
|
Max Thermal Output (BTU/hr) |
180.16 |
|
Power Consumption Max (Watts) |
52.8 |
Product Details
Dell N3024ET-ON has these features:
¢Ù24 RJ45 10/100/1000Mb auto-sensing ports
¢ÚTwo integrated 10GbE SFP+ ports
¢ÛTwo GbE combo media ports for copper or fiber flexibility
¢ÜTwo dedicated rear stacking ports
¢ÝOne hot-swap expansion module bay
¢ÞOne hot-swap power supply (200W AC)
¢ßDual hot-swap power supply bays (optional power supply available)
Figure 1 shows the front panel of N3024ET-ON.
Note:
|
¢Ù??? ? |
10/100/100BASE-T Auto-sensing Full Duplex RJ-45 Ports |
|
¢Ú??? ? |
Combo Ports |
|
¢Û??? ? |
SFP+ Ports |
|
¢Ü??? ? |
Reset Button |
|
¢Ý??? ? |
USB Port |
|
¢Þ??? ? |
Console Port |
|
¢ß??? ? |
Out-of-Band Management Port |
Compare to Similar Items
Table 2 shows the comparison.
|
Product Name |
N3024ET-ON |
N3024EF-ON |
N3024EP-ON |
N3048ET-ON |
N3048EP-ON |
|
Power Supply (Watts) |
200 |
200 |
715 or 1100 |
200 |
1100 |
|
Max Thermal Output (BTU/hr) |
180.16 |
228.96 |
4391.43 |
220.97 |
7319.04 |
|
Power Consumption Max (Watts) |
52.8 |
67.1 |
1287 |
74.8 |
2145 |
|
Integrated rear mini-SAS stacking ports |
2 x 21gbps |
2 x 21gbps |
2 x 21gbps |
2 x 21gbps |
2 x 21gbps |
|
Maximum stacking distance (meters) |
3 |
3 |
3 |
3 |
3 |
|
Maximum stacking speed (full-duplex) |
84gbps |
84gbps |
84gbps |
84gbps |
84gbps |
Before Purchasing
Do you have any question about the N3024ET-ON
Contact us – Email Live Chat or [email protected].
N3024ET-ON Datasheet
N3024ET-ON Specification |
|
|
Chassis |
|
|
Dimensions in inches |
1.7126 x 17.0866 x 16.0236 |
|
Dimensions in millimeters |
43.5 x 434.0 x 407.0 |
|
Power Supply (Watts) |
200 |
|
Max Thermal Output (BTU/hr) |
180.16 |
|
Power Consumption Max (Watts) |
52.8 |
|
Power and Cooling Hardware |
|
|
Internal power supply bays |
2 |
|
power supplies (included) |
1 |
|
Power supply redundancy |
option available |
|
Removable fans |
not available |
|
Variable speed fans |
standard |
|
Air flow |
IO to PSU (normal) |
|
Stacking Attributes |
|
|
Integrated rear mini-SAS stacking ports |
2 x 21gbps |
|
Maximum stacking distance (meters) |
3 |
|
Maximum stacking speed (full-duplex) |
84gbps |
|
Environmental Operating Conditions |
|
|
Operating Temperature in Celsius |
0° to 45° C |
|
Operating Temperature in Fahrenheit |
32° to 113° F |
|
Storage Temperature in Celsius |
-40° to 65° C |
|
Storage Temperature in Fahrenheit |
-40° to 149° F |
|
Operating Relative Humidity |
95% |
|
Storage Relative Humidity |
85% |
|
Power Supply Efficiency |
80% or better in all operating modes |
