Product Model: N2224X-ON
Retail Price: US$5,632.00
Email Us To Get Special Price Today: [email protected]

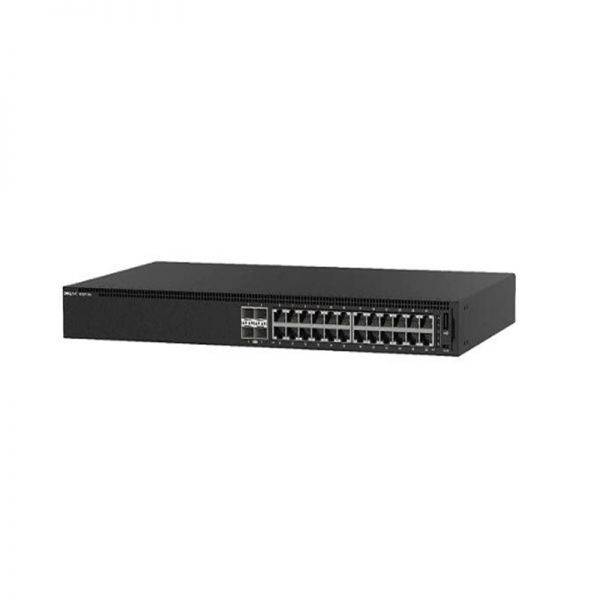

The Dell PowerSwitch N2224X-ON is an advanced networking switch designed to meet the demands of modern network environments. Offering high-speed connectivity and flexibility, it comes with 24×1/2.5G ports, 4x25G ports, 2x40G stacking ports, an AC power supply, and features IO/PS airflow. This switch operates on OS6, providing robust performance and scalability.
Quick Spec
| Model | Dell PowerSwitch N2224X-ON |
| Port Configuration | 24×1/2.5G, 4x25G, 2x40G Stacking |
| Power Supply | 1xAC PSU |
| Airflow | IO/PS |
| Operating System | OS6 |
Product Datasheet
- Dual Stack 40GbE ports for efficient stacking and high availability.
- Supports 1G/2.5G Ethernet for various device connectivity.
- Power-efficient with single AC power supply unit included.
- Optimized airflow design with IO/PS for better cooling.
- Runs on Dell??s OS6 for stable and reliable network operations.
Product Applications
- Ideal for enterprise campus networks needing high bandwidth and flexibility.
- Suitable for data center top-of-rack deployment due to high-speed stacking.
- Effective in multi-site organizations requiring simplified management and scalability.
Supported Options
| Accessory | Model |
| Additional Power Supply | Dell AC PSU 750W |
| Rack Mount Kit | Dell RMK-600 |
| SFP+ Transceiver | Dell SFP-10G-SR |
Compare to Similar Items
| Feature | N2224X-ON | N3224X-ON | N1524X-ON |
| Port Configuration | 24×1/2.5G, 4x25G, 2x40G Stacking | 24×1/10G, 4x40G, 2x100G Stacking | 24×1/2.5G, 2x25G, 2x10G Stacking |
| Power Supply | 1xAC PSU | 2xAC PSU | 1xAC PSU |
| Airflow | IO/PS | PS/IO | IO/PS |
| OS | OS6 | OS10 | OS6 |
| Stacking Bandwidth | 80 Gbps | 200 Gbps | 40 Gbps |
Before Purchasing
Contact us through Live Chat or at [email protected] for further information about the Dell PowerSwitch N2224X-ON and its pricing details.
Specification
N2224X-ON Datasheet
N2224X-ON Specifications | |
| Brand | Dell |
| Model Name | N2224X-ON |
| Ports | 24×1/2.5G |
| Uplink Ports | 4x25G |
| Stacking Ports | 2x40G |
| Power Supply | 1xAC PSU |
| Airflow | IO/PS |
| Operating System | OS6 |
| Form Factor | 1U |
| Switching Capacity | 880 Gbps |
| Forwarding Rate | 654 Mpps |
| VLAN Support | 4,094 VLANs |
| Maximum MAC Addresses | 64,000 |
| Jumbo Frames | 9,216 bytes |
| QoS | 8 Queues per Port |
| Security Features | 802.1x Authentication, ACLs |
| Operating Temperature | 0??C to 45??C |
| Management | Web, CLI, SNMP |
| Dimensions (H x W x D) | 44.5 mm x 437 mm x 254 mm |
| Warranty | Limited Lifetime |
