Product Model: MX960BASE3-DC
Retail Price: US$52,867.00
Email Us To Get Special Price Now: [email protected]

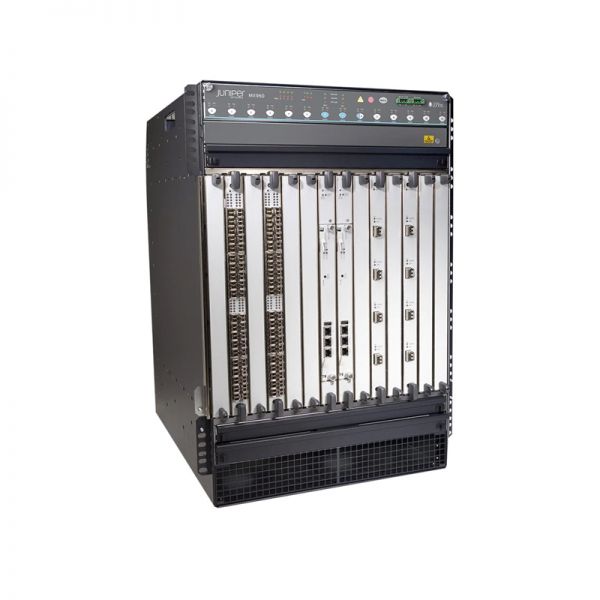

The Juniper MX960BASE3-DC is a high-capacity, 14-slot base chassis equipped with a DC power supply, designed for large-scale networking and data center environments. This versatile router supports high-speed data processing and robust security features, making it ideal for telecommunications providers and enterprises seeking reliable network solutions.
MX960BASE3-DCProduct Datasheet
- ● 14-slot modular design
- ● DC power supply
- ● High-density Ethernet
- ● Scalable architecture
- ● Carrier-grade reliability
Product Features Comparison
| Features | MX960BASE3-DC | MX480 | MX240 | ASR 9006 | CRS-1 | 7750 SR-12 | NetIron XMR 16000 |
|---|---|---|---|---|---|---|---|
| Chassis Slots | 14 | 6 | 2 | 8 | 16 | 12 | 16 |
| Power Supply | DC | AC | DC | AC | DC | AC | DC |
| Throughput | 9.92 Tbps | 5.76 Tbps | 3.84 Tbps | 8 Tbps | 1.28 Tbps | 6.4 Tbps | 10 Tbps |
| Ethernet Ports | 128x10GE | 48x10GE | 24x10GE | 80x10GE | 32x10GE | 40x10GE | 160x10GE |
| Form Factor | Modular | Compact | Compact | Modular | Modular | Modular | Modular |
| Redundancy | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
MX960BASE3-DC Product Application Scenarios
- ● Data center interconnect
- ● Carrier-grade telecom networks
- ● Large enterprise network backbone
Optional Add-ons
| Model | Description |
|---|---|
| MX-MPC3E-3D | Modular Port Concentrator for MX960 |
| MX-PWR-DC-1400 | 1400W DC Power Supply |
| MX-SCBE3 | Switch Control Board |
Get More Information
Discover unbeatable prices and fast shipping for the Juniper MX960BASE3-DC. Access the detailed MX960BASE3-DC datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].
Specification
MX960BASE3-DC Datasheet
MX960BASE3-DC Specifications | |
| Model | MX960BASE3-DC |
| Chassis Slots | 14 |
| Power Supply Type | DC |
| Height | 17.5 inches (44.45 cm) |
| Width | 17.5 inches (44.45 cm) |
| Depth | 23.5 inches (59.69 cm) |
| Input Voltage | -40 to -72 VDC |
| Power Consumption | 2800W typical, 3800W maximum |
| Operating Temperature | 0 to 40 °C (32 to 104 °F) |
| Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Relative Humidity | 5% to 90% (non-condensing) |
| Maximum Throughput | 12 Tbps |
| Redundancy | Routing Engine Redundancy |
| Cooling | Field-Replacable Fans |
| Network Interface | 10 GE, 40 GE, 100 GE |
| Supported Protocols | MPLS, L3 VPN, L2 VPN |
| Management Ports | RJ-45, Console, USB |
| Compliance | RoHS, NEBS Level 3 |
| Airflow Direction | Front to Back |
| Noise Level | Minimum 7.3 bels, typical 7.5 bels |
| MTBF | >9 years |
