Product Model: MX960BASE-AC
Retail Price: US$18,631.15
Email Us To Get Special Price Now: [email protected]

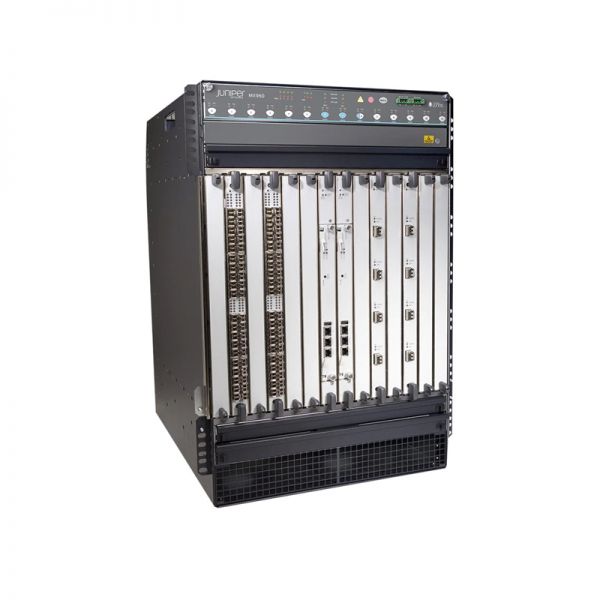

MX960BASE-AC is a Juniper 14 slot MX960 base chassis with 2 fan trays, 3 AC power supplies, 2 SCBs, 1 RE. The SDN-enabled MX960 5G Universal Routing Platform has been proven in the world’s largest service provider, cable, mobile, and data center networks. It offers up to 12 Tbps of system capacity in one-third of a standard telco rack, with support for high-density 10GbE, 40GbE, 100GbE, and 400GbE interfaces, as well as legacy SONET/SDH, ATM, and PDH connectivity.
Quick Spec
Table 1 shows the quick spec.
|
SKU |
MX960BASE-AC |
|
Description |
Juniper 14 slot MX960 base chassis with 2 fan trays, 3 AC power supplies, 2 SCBs, 1 RE |
|
System capacity |
Up to 12 Tbps |
|
Switch fabric capacity per slot |
Up to 1.5 Tbps |
|
DPCs and/or MPCs per chassis |
Up to 11 |
|
Chassis per rack |
3 |
|
Dimensions (W x H x D) |
17.37 x 27.75 x 28 in (total depth includes standard cable manager measurements) (44.11 x 70.49 (16 U) x 71.1 cm) |
|
Mounting |
Front or center |
|
Power options |
AC: 200-240 V AC |
Product Details
Figure 1 shows the front panel of MX960 chassis with installed modules. These modules should be ordered separately.
Note:
|
① |
Craft Interface |
⑦ |
Air Intake |
|
② |
SCB0 |
⑧ |
Lower Fan Tray |
|
③ |
SCB1 |
⑨ |
Air Filter Tray |
|
④ |
ESD Point |
⑩ |
DPC Slots |
|
⑤ |
DPC Slots |
⑪ |
Upper Fan Tray |
|
⑥ |
SCB2 or DPC6 |
|
|
Figure 2 shows the Rear View of a Fully Configured AC-Powered MX960 Router Chassis.
Note:
|
① |
Air Exhaust |
|
② |
AC Power Supplies |
|
③ |
Power Supply Ejectors |
Compare to Similar Items
Table 2 shows the comparison.
|
SKU |
MX204 |
MX960BASE-AC |
|
Description |
Juniper MX204 chassis with 3 fan trays and 2 power supplies incl. Junos |
Juniper 14 slot MX960 base chassis with 2 fan trays, 3 AC power supplies, 2 SCBs, 1 RE |
|
System Capacity |
400 Gbps |
Up to 12 Tbps |
|
Switch Fabric Capacity per Slot |
N/A |
Up to 1.5 Tbps |
|
DPCs and/or MPCs per Chassis |
Built-in |
Up to 11 |
|
Chassis per Rack |
42 |
3 |
Get More Information
Do you have any question about the MX960BASE-AC
Contact us now via Live Chat or [email protected].
Specification
MX960BASE-AC Datasheet
MX960BASE-AC Specification |
|
|
Description |
Juniper 14 slot MX960 base chassis with 2 fan trays, 3 AC power supplies, 2 SCBs, 1 RE |
|
System capacity |
Up to 12 Tbps |
|
Switch fabric capacity per slot |
Up to 1.5 Tbps |
|
DPCs and/or MPCs per chassis |
Up to 11 |
|
Chassis per rack |
3 |
|
Dimensions (W x H x D) |
17.37 x 27.75 x 28 in (total depth includes standard cable manager measurements) (44.11 x 70.49 (16 U) x 71.1 cm) |
|
Mounting |
Front or center |
|
Power options |
200 to 240 V AC |
|
Operating temperature |
0–104°F (0–40°C) at 6000 feet |
|
Humidity |
5 to 90 percent non-condensing |
|
Altitude |
No performance degradation to 13,000 ft/4,000 m |
|
Default memory |
2×16 MB NOR flash storage; 64 GB of DDR4 RAM; 2×50 GB SSD |
|
Number of cores |
6 cores |
|
Typical power draw (AC) |
6520 W |
