Product Model: MX65-HW
Product Special Price: US$597.00
Email Us To Get Special Price Now: [email protected]
MX65-HW Datasheet
MX65-HW Specification |
|
|
Recommended Use Cases |
Small branch |
|
Recommended Clients |
50 |
|
Stateful Firewall Throughput |
250 Mbps |
|
Advanced Security Throughput |
200 Mbps |
|
Maximum VPN Throughput |
100 Mbps |
|
Maximum Concurrent VPN Tunnels |
50 |
|
WAN Interfaces |
Dedicated: 2 x GbE RJ45 1 x USB (cellular failover) Dual-purpose: N/A |
|
LAN Interfaces |
10 x GbE RJ45 (2 x PoE+) |
|
Mounting |
Desktop or Wall mount |
|
Dimensions (W x D x H) |
10.0” x 5.2” x 1” (256mm x 132mm x 25mm) |
|
Weight |
1.98 lb (0.9 kg) |
|
Web Caching |
– |
|
Power Supply |
90W DC (included) |
|
Power Load (idle/max) |
6W / 72W |
|
Operating Temperature |
32°F to 104°F (0°C to 40°C) |
|
Humidity |
5% to 95% |
|
Power over Ethernet |
2 x PoE+ (802.3at) LAN ports 30W maximum per port |
|
Management |
– Managed via the web using the Cisco Meraki dashboard – Single pane-of-glass into managing wired and wireless networks – Zero-touch remote deployment (no staging needed) – Automatic firmware upgrades and security patches – Templates based multi-network management – Org-level two-factor authentication and single sign-on – Role based administration with change logging and alerts |
|
Network and Firewall Services |
– Stateful firewall, 1:1 NAT, DMZ – Identity-based policies – Auto VPN: Automated site-to-site (IPsec) VPN, for hub-and-spoke or mesh topologies – Client (IPsec L2TP) VPN – Multiple WAN IP, PPPoE, NAT – VLAN support and DHCP services – Static routing – User and device quarantine |
|
Regulatory |
FCC (US) CB (IEC) CISPR (Australia/New Zealand) PTCRB (US) RCM (Australia/New Zealand, Asia Pacific) GCF (EU) |

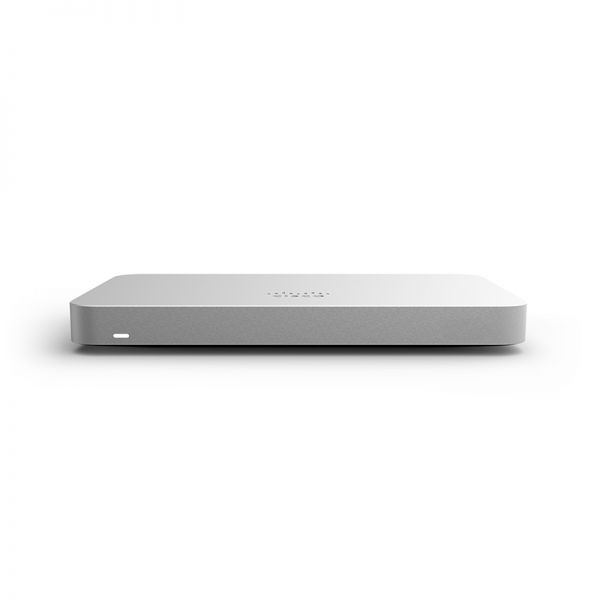

MX65-HW is a Meraki MX65 Router/Security Appliance. Cisco Meraki MX Security & SD-WAN Appliances are ideal for organizations considering a Unified Threat Management (UTM) solution for distributed sites, campuses or datacenter VPN concentration. Since the MX is 100% cloud managed, installation and remote management are simple. The MX has a comprehensive suite of network services, eliminating the need for multiple appliances. These services include SD-WAN capabilities, application-based firewalling, content filtering, web search filtering, SNORT? based intrusion detection and prevention, Cisco Advanced Malware Protection (AMP), web caching, 4G cellular failover and more. Auto VPN and SD-WAN features are available on our hardware and virtual appliances, configurable in Amazon Web Services or Microsoft Azure.
Quick Spec
Table 1 shows the quick spec.
|
Model |
MX65-HW |
|
Recommended Use Cases |
Small branch |
|
Recommended Clients |
50 |
|
Stateful Firewall Throughput |
250 Mbps |
|
Advanced Security Throughput |
200 Mbps |
|
Maximum VPN Throughput |
100 Mbps |
|
Maximum Concurrent VPN Tunnels |
50 |
|
WAN Interfaces |
Dedicated: 2 x GbE RJ45 1 x USB (cellular failover) Dual-purpose: N/A |
|
LAN Interfaces |
10 x GbE RJ45 (2 x PoE+) |
|
Mounting |
Desktop or Wall mount |
|
Dimensions (W x D x H) |
10.0�� x 5.2�� x 1�� (256mm x 132mm x 25mm) |
|
Weight |
1.98 lb (0.9 kg) |
The Accessories and Software
Table 2 shows the recommended products.
|
Model |
Description |
|
MA-PWR-90WAC |
Replacement Power Adapter (90W) for MX65, MX65W |
|
LIC-MX65-ENT-1YR |
Cisco Meraki MX65, 1 year Enterprise License and Support |
|
LIC-MX65-ENT-3YR |
Cisco Meraki MX65, 3 year Enterprise License and Support |
|
LIC-MX65-ENT-5YR |
Cisco Meraki MX65, 5 year Enterprise License and Support |
|
LIC-MX65-SEC-1YR |
Cisco Meraki MX65, 1 year Advanced Security License and Support |
|
LIC-MX65-SEC-3YR |
Cisco Meraki MX65, 3 year Advanced Security License and Support |
|
LIC-MX65-SEC-5YR |
Cisco Meraki MX65, 5 year Advanced Security License and Support |
Compare to Similar Items
Table 3 shows the comparison.
|
Model |
MX64-HW |
MX64W-HW |
MX65-HW |
MX65W-HW |
|
Description |
Meraki MX64 Router/Security Appliance |
Meraki MX64W Router/Security Appliance with 802.11ac |
Meraki MX65 Router/Security Appliance |
Meraki MX65W Router/Security Appliance with 802.11ac |
|
Recommended Use Cases |
Small branch |
Small branch |
Small branch |
Small branch |
|
Recommended Clients |
50 |
50 |
50 |
50 |
|
Stateful Firewall Throughput |
250 Mbps |
250 Mbps |
250 Mbps |
250 Mbps |
|
Advanced Security Throughput |
200 Mbps |
200 Mbps |
200 Mbps |
200 Mbps |
|
Maximum VPN Throughput |
100 Mbps |
100 Mbps |
100 Mbps |
100 Mbps |
|
Maximum Concurrent VPN Tunnels |
50 |
50 |
50 |
50 |
|
WAN Interfaces |
Dedicated: 1 x GbE RJ45 1 x USB (cellular failover) Dual-purpose: 1 x GbE RJ45 |
Dedicated: 1 x GbE RJ45 1 x USB (cellular failover) Dual-purpose: 1 x GbE RJ45 |
Dedicated: 2 x GbE RJ45 1 x USB (cellular failover) Dual-purpose: N/A |
Dedicated: 2 x GbE RJ45 1 x USB (cellular failover) Dual-purpose: N/A |
|
LAN Interfaces |
Fixed: 4 x GbE RJ45 |
Fixed: 4 x GbE RJ45 |
10 x GbE RJ45 (2 x PoE+) |
10 x GbE RJ45 (2 x PoE+) |
