Product Model: MX-MPC3E-3D-R-B
Retail Price: US$0
Email Us To Get Special Price Now: [email protected]

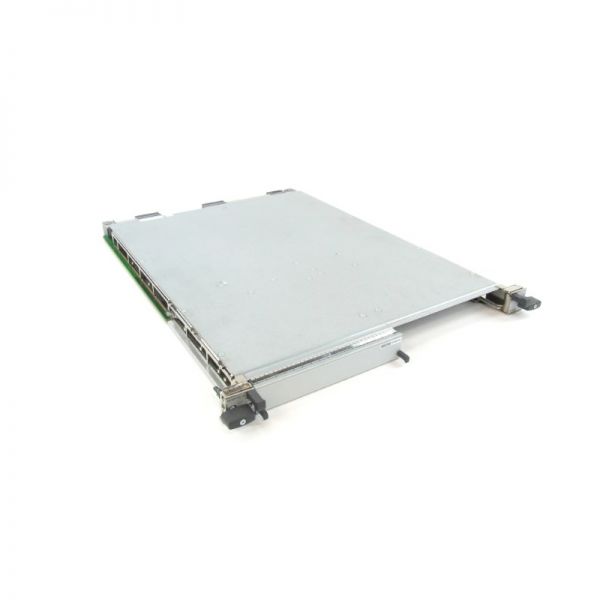

The Juniper MX-MPC3E-3D-R-B is a versatile and robust networking module designed for high-speed connectivity. This product is ideal for enterprises and service providers requiring scalable L2, L3, and L3VPN services. Its ability to support 100GE, 40GE, and 10GE interfaces makes it perfect for various demanding network environments. Optics are sold separately, allowing customization as per specific networking needs.
MX-MPC3E-3D-R-BProduct Datasheet
- ● Supports 100GE interfaces
- ● Full-scale L2/L3/L3VPN capabilities
- ● High-performance networking
- ● Scalable and customizable
- ● Optics sold separately
Product Features Comparison
| Feature | MX-MPC3E-3D-R-B | MX-MPC4E | MX-MPC5E | MX-MPC6E | Cisco ASR9000 | Huawei NE40E | Nokia SR7 |
|---|---|---|---|---|---|---|---|
| Max Slots supported | 1 | 2 | 2 | 4 | 2 | 2 | 2 |
| 100GE Support | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 40GE Support | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| 10GE Support | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| L2/L3/L3VPN | Full support | Full support | Full support | Full support | Full support | Full support | Full support |
| Optics Included | No | No | No | No | No | No | No |
MX-MPC3E-3D-R-B Product Application Scenarios
- ● Enterprise data centers
- ● ISP backbone networks
- ● High-speed cloud services
Optional Add-ons
| Model | Description |
|---|---|
| JNP-100G-SR4 | 100GbE SR4 Optic |
| JNP-40G-LR4 | 40GbE LR4 Optic |
| JNP-10G-LR | 10GbE LR Optic |
Get More Information
Discover unbeatable prices and fast shipping for the Juniper MX-MPC3E-3D-R-B. Access the detailed MX-MPC3E-3D-R-B datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].
Specification
MX-MPC3E-3D-R-B Datasheet
MX-MPC3E-3D-R-B Specifications | |
| Model Name | MX-MPC3E-3D-R-B |
| Interface Types | 100GE, 40GE, 10GE |
| Full Scale Features | L2, L3, L3VPN |
| Optics | Sold separately |
| Power Consumption | Typical: 365W |
| Form Factor | Modular |
| Supported Protocols | BGP, OSPF, ISIS, MPLS |
| Switching Capacity | Up to 920 Gbps |
| Forwarding Rate | Up to 550 Mpps |
| Chassis Compatibility | MX240, MX480, MX960 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5% to 90% (non-condensing) |
| Maximum Ports | 4x100GE, 8x40GE, 40x10GE |
| MTBF | Over 200,000 hours |
| Redundancy | Yes, with additional modules |
| Regulatory Compliance | RoHS, NEBS, CE |
| Cooling System | Front-to-back airflow |
| Memory | 6GB DRAM |
| Management Interface | CLI, SNMP, J-Web |
| Dimensions (HxWxD) | 1.75 x 8.5 x 21.25 inches |
