Product Model: MX-MPC2E-3D-P-Q-R-B
Retail Price: US$0
Email Us To Get Special Price Now: [email protected]

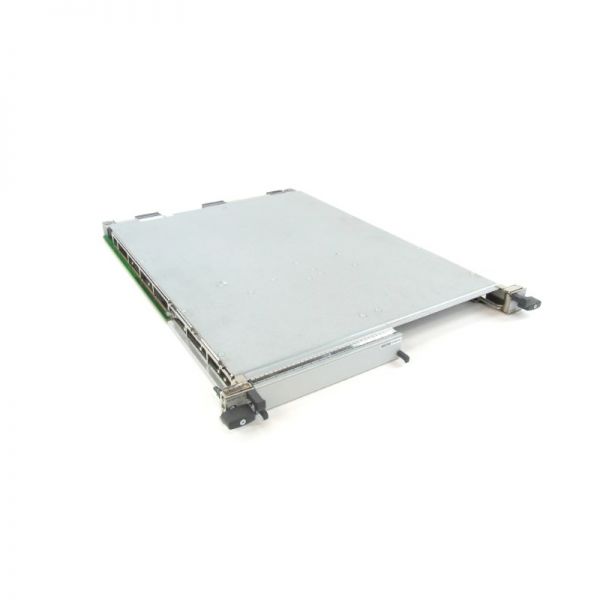

The Juniper MX-MPC2E-3D-P-Q-R-B is a high-performance line card bundle designed specifically for modern network infrastructures. This powerful component enhances Layer 2, Layer 2.5, and Layer 3 functionalities, making it an optimal choice for engineers and procurement professionals looking to boost their network capabilities. It offers superior features like 1588v2 and per-IFL HQoS support, addressing both performance and quality needs in complex networking environments.
MX-MPC2E-3D-P-Q-R-BProduct Datasheet
- ● 1588v2 Support
- ● Per-IFL HQoS
- ● 256K Queues
- ● Full-scale L2, L2.5, L3
- ● Max 128K egress queues
Product Features Comparison
| Feature | MX-MPC2E-3D-P-Q-R-B | MX-MPC3E-3D | MX-MPC4E-3D | MX-MPC5E-3D | MX-MPC7E-3D | MX-MPC10E-3D | MPC11E-GR |
|---|---|---|---|---|---|---|---|
| 1588v2 Support | Yes | No | Yes | Yes | Yes | No | Yes |
| Per-IFL HQoS | Yes | Yes | No | Yes | Yes | No | Yes |
| Max Queues | 256K | 512K | 512K | 1M | 2M | 4M | 4M |
| Full-scale L2/L2.5/L3 | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Max Egress Queues | 128K | 256K | 256K | 512K | 1M | 2M | 2M |
MX-MPC2E-3D-P-Q-R-B Product Application Scenarios
- ● High-bandwidth data centers
- ● Service provider core networks
- ● Advanced enterprise networking
Optional Add-ons
| Model | Description |
|---|---|
| EX4200-48P | 48-port Ethernet switch |
| SRX5400 | High-performance security appliance |
| QFX5100-24Q | 24-port 40GbE switch |
Get More Information
Discover unbeatable prices and fast shipping for the Juniper MX-MPC2E-3D-P-Q-R-B. Access the detailed MX-MPC2E-3D-P-Q-R-B datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].
Specification
MX-MPC2E-3D-P-Q-R-B Datasheet
MX-MPC2E-3D-P-Q-R-B Specifications | |
| Brand | Juniper |
| Model | MX-MPC2E-3D-P-Q-R-B |
| Type | Line Card Bundle |
| Included Components | 1588v2, per-IFL HQoS |
| Max Queues | 256K (max 128K egress) |
| Routing Features | Full scale L3, L2, L2.5 |
| Environment | Carrier-grade |
| Maximum Interfaces | Up to 20 ports per line card |
| Forwarding Capacity | Up to 160 Gbps per slot |
| Operating Temperature Range | 0 to 40°C (32 to 104°F) |
| Storage Temperature Range | -40 to 70°C (-40 to 158°F) |
| Power Consumption | Typically 800W |
| Reliability (MTBF) | 1.5 million hours |
| Protocol Support | OSPF, BGP, MPLS, IS-IS |
| Quality of Service | Per-IFL HQoS |
| Switching Fabric | Redundant, Load-balanced |
| Security Features | IPsec, Firewall |
| Management | Juniper Networks Junos OS |
| Compliance | RoHS, NEBS |
| Warranty | 1-Year Limited Warranty |
