Product Model: TOM1000-A10F2080P
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]

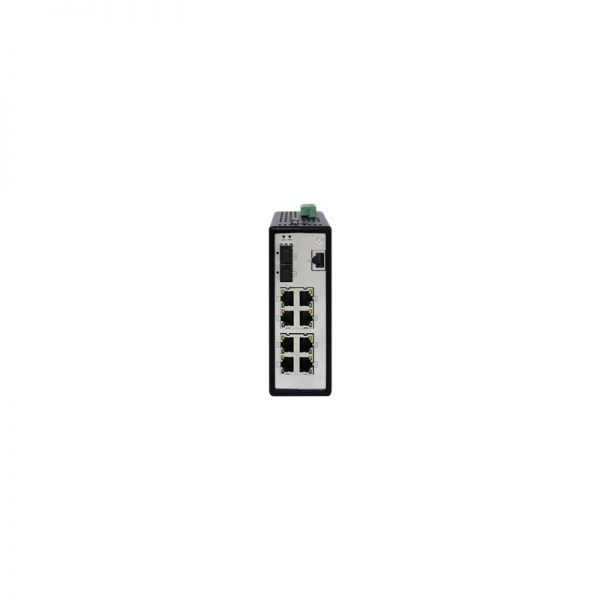

TOM1000 Unmanaged Industrial Switch made from Anti-Corrosion Casting
Aluminum Alloy. 2 100/1000BaseX SFP Ports (SFP module not included),
8 802.3af/at PoE 10/100/1000BaseT Ports. IP30 Protection Class, Operating
Temperature from -40°C to +75°C, and MTBF over 400K hours. Isolated dual
48-54VDC Power Inputs. Power Cable Order Separately.
Quick Spec
Table 1 shows the quick spec of the TOM1000-A10F2080P
| Model | TOM1000-A10F2080P |
| Interface Configuration | 2 x 100/1000BaseX SFP Ports 8 x 10/100/1000BaseT Ports |
| Input Voltage | 48-57VDC, |
| Fansless | Yes |
| Backplane Bandwidth | 20 Gbps |
| Installasion | DIN-Rail |
| IP Rating | IP30; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 52mm x 140mm x 110mm |
| 2.05 inch x 5.51 inch x 4.34inch | |
| Weight | 0.7 kg |
| 1.54 lb | |
| MTBF | ≥400,000H |
| Operating Temperature | -40 °C~ 85 °C |
| -40°F ~ 185°F | |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011; NEMA-TS2 (pending) |
| Rail Industry | EN50121-4 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010 (pending) |
| Shipbuilding Industry | GL (pending) |
Product Datasheet
¡ñ Full Gigabit Ethernet ports
¡ñ 20Gbps backplane bandwidth
¡ñ Support IEEE 802.3af/at compliant PoE
¡ñ Each PoE port provides up to 30W output power
¡ñ PoE management: PoE device detection, PoE power management
¡ñ Dual redundant power inputs design for DC models
¡ñ IP40 Die-casting aluminum alloy housing
¡ñ Fanless, -40°C to 75°C wide operating temperature range
¡ñ MTBF≥ 400,000 hours
Supported Options
Table 2 shows the supported options of the TOM1000-A10F2080P
| MDP-IE150P-54 | 150W Industrial DIN-Rail Power Supply for PoE/PoE+ (2250V Isolation) Input: 110/220 VAC/VDC (90~264VAC/88~300VDC) Output: 54VDC/2.78A Operating Temperature from -40°C to +75°C with conventional cooling |
| MRD-MGIGA-GLX | Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM |
| MRD-MGIGA-GEX | Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM |
| MRD-MGIGA-GZX | Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM |
| MRD-MGIGA-GSX-850 | Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M |
| MRD-MGIGA-GSX | Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM |
Before Purchasing
Do you have any questions about the TOM1000-A10F2080P price?
Contact us – Email Live Chat or [email protected].
TOM1000-A10F2080P Datasheet
| TOM1000-A10F2080P Specification | |
| Backplane Bandwidth | 20 Gbps |
| Processing Type | Store-and-Forward |
| MAC Table Size | 4K |
| RAM: | ¡¡ |
| Exchange Rate | 148,800 pps/100M; 1,488,000 pps/1000 M; |
| Management Mode | ¡¡ |
| Diagnosis Mode | |
| Redundancy | |
| Time Synchronization | |
| Others | |
| Connection | 1 removable 5-contact terminal block |
| Input Voltage | 48-57VDC, |
| Power Consumption | 15W£¨without POE£© |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Installasion | DIN-Rail |
| Housing | Die-casting aluminum alloy housing |
| IP Rating | IP30; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 52mm x 140mm x 110mm |
| 2.05 inch x 5.51 inch x 4.34inch | |
| Weight | 0.7 kg |
| 1.54 lb | |
| MTBF | ≥400,000H |
| Storage Temperature | -40 ¡æ ~ 85 ¡æ |
| -40¨H ~ 185¨H | |
| Operating Temperature | -40 ¡æ ~ 85 ¡æ |
| -40¨H ~ 185¨H | |
| Ambient Relative Humidity | 5 % ~ 95% (non-condensing) |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-31 |
| Circuit Board | Approved by IPC |
| EMI | FCC 47 CFR Part 15 Class A EN55032 Class A EN55035 Class A |
| EMS | IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-11, Class 4 IEC (EN )61000-4-12, Class 4 |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011(pending) |
| Rail Industry | EN50155; IEC/EN61373; EN50121 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010(pending) |
| Shipbuilding Industry | DNV-GL (pending) |
