Product Model: TNM4000-TP36HH4X12G24T
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]

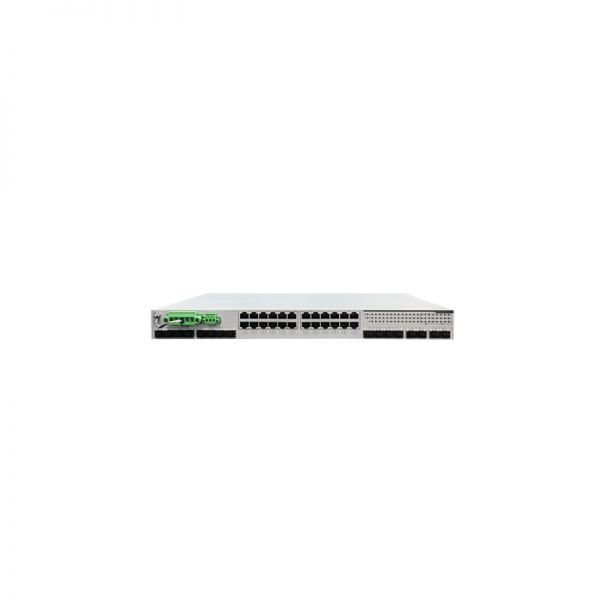

36-port Industrial Layer 3 Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 20 10/100/1000BaseT Ports, 4 100/1000Base(X/T) COMBO Ports, 8 100/1000BaseX SFP Ports (SFP module not included), and 4 100/1000/2500/10000BaseX SFP Ports (SFP module not included). Stand- ard 19-inch Rack Mount and 1U High, 1 Management Ethernet Port and 1 Management Serial CLI Port, 1 Alarm Relay Port (250VAC/125VDC 2A@250VAC/2A@30VDC), 1 SD slot, and 1 RST Bu????on. IP40 Protection Class, Operating Temperature from -40°C to +85°C. Dual Isolated 100-240V Power Inputs.
Quick Spec
Table 1 shows the quick spec of the TNM4000-TP36HH4X12G24T.
| Model | TNM4000-TP36HH4X12G24T |
| Interface Configuration | MAX 36 Ports |
| Input Voltage | 100-240VAC(50-60Hz) & 100-240VDC, Dual power inputs |
| Fansless | Yes |
| Backplane Bandwidth | 160 Gbps |
| Installasion | Rack-Mounted |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 442mm×43.8mm×335mm |
| 17.41 inch x 1.73 inch x 13.19 inch | |
| Weight | 4 kg |
| 8.82 lb | |
| MTBF | ≥800,000H |
| Operating Temperature | -40 °C~ 85 °C |
| -40°F ~ 185°F | |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011; NEMA-TS2 (pending) |
| Rail Industry | EN50121-4 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010 (pending) |
| Shipbuilding Industry | GL (pending) |
Product Datasheet
¡ñ 36 Gigabit Ethernet ports, including 4 10G Ethernet ports
¡ñ Configurable by web browser, Telnet, CLI
¡ñ With functions of data packet dropout protection and quick recovery from network failure
¡ñ Support various multicast protocols and strong safety protection mechanism
¡ñ IGMP snooping and GMRP for filtering traffic from industrial Ethernet protocols
¡ñ QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
¡ñ SNMPv1/v2c/v3 for different levels of network management
¡ñ RMON for proactive and efficient network monitoring
¡ñ Bandwidth management to prevent unpredictable network status
¡ñ Port mirroring for online debugging
¡ñ Isolated redundant power inputs
¡ñ Fanless, -40°C to 85°C operating temperature range
Supported Options
Table 2 shows the supported options of the TNM4000-TP36HH4X12G24T.
| MRD-MGIGA-GLX | Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM |
| MRD-MGIGA-GEX | Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM |
| MRD-MGIGA-GZX | Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM |
| MRD-G25-GLX | Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM |
| MRD-G25-GEX | Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM |
| MRD-G25-GZX | Industrial Grade 2500BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM |
| MRD-10GLS-LC | Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 10KM |
| MRD-10GRS-LC | Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 20KM |
| MRD-10GRS-LC | Industrial Grade 10000BaseX SFP+ Module, Singlemode(1550), Dual Fibers, DDM, 40KM |
Compare to Similar Items
Table 3 shows the comparison to similar items of the TNM4000-TP36HH4X12G24T.
| Product number | Product description |
| TNM4000-TP36HH4M12G24T | 36-port Industrial Layer 3 Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 20 10/100/1000BaseT Ports, 4 100/1000Base(X/T) COMBO Ports, 8 100/1000BaseX SFP Ports (SFP module not included), and 4 100/1000/2500BaseX SFP Ports (SFP module not included). Standard 19- inch Rack Mount and 1U High, 1 Management Ethernet Port and 1 Manage- ment Serial CLI Port, 1 Alarm Relay Port (250VAC/125VDC 2A@250VAC/2A@30VDC), 1 SD slot, and 1 RST Bu????on. IP40 Protection Class, Operating Temperature from -40°C to +85°C. Dual Isolated 100-240V Power Inputs. |
Before Purchasing
Do you have any questions about the TNM4000-TP36HH4X12G24T price?
Contact us – Email Live Chat or [email protected].
TNM4000-TP36HH4X12G24T Datasheet
| TNM4000-TP36HH4X12G24T Specification | |
| Backplane Bandwidth | 160 Gbps |
| Processing Type | Store-and-Forward |
| MAC Table Size | 32K |
| Packet Buffer Size | 32 Mbti |
| Exchange Rate | 148,800 pps/100M; 1,488,000 pps/1000 M; 14,880,000 pps/10000M |
| Management Mode | Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Pri- vate MIBs |
| Diagnosis Mode | Indicator light, journal file, relay, RMON, port mirroring, TRAP |
| Redundancy | MSTP, RSTP, port trunking |
| Time Synchronization | NTP, SNTP |
| Others | IPv4/IPv6 multicast, storm control, MC/BC protection, support Jumbo Frame |
| Connection | 5-pin terminal block |
| Input Voltage | 100-240VAC(50-60Hz) & 100-240VDC, Dual power inputs |
| Power Consumption | 35W |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Installasion | Rack-Mounted |
| Housing | Aluminum Alloy Housing |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 442mm×43.8mm×335mm |
| 17.41 inch x 1.73 inch x 13.19 inch | |
| Weight | 4 kg |
| 8.82 lb | |
| MTBF | ≥800,000H |
| Storage Temperature | -40 ¡æ ~ 85 ¡æ |
| -40¨H ~ 185¨H | |
| Operating Temperature | -40 ¡æ ~ 85 ¡æ |
| -40¨H ~ 185¨H | |
| Ambient Relative Humidity | 5 % ~ 95% (non-condensing) |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-31 |
| Circuit Board | Approved by IPC |
| EMI | FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A |
| EMS | IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 3 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 3 IEC (EN )61000-4-9, Class 5 |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011; NEMA-TS2 (pending) |
| Rail Industry | EN50121-4 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010(pending) |
| Shipbuilding Industry | GL (pending) |
