Product Model: TNM4000-TP28HH4X8G24T
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]

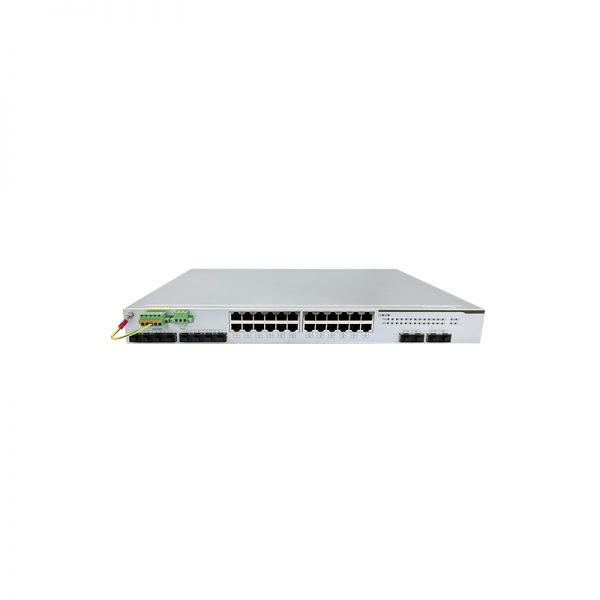

28-port Industrial Layer 3 Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 1610/100/1000BaseT Ports, 8100/1000Base(X/T) COMBO Ports, and 4100/1000/2500/10000BaseX SFP+ Ports (SFP module not included). Standard 19-inch Rack Mount and 1U High, 1 Management Ethernet Port and 1 Management Serial CLI Port, 1 Alarm Relay Port (250VAC/125VDC 2A 250VAC/2A 30VDC), 1 SD slot, and 1 RST Button. IP40 Protection Class, Operating Temperature from -40¡ãC to +85¡ãC. Dual Isolated 100-240V Power Inputs.
Quick Spec
Table 1 shows the quick spec of the TNM4000-TP28HH4X8G24T.
| Model | TNM4000-TP28HH4X8G24T |
| Interface Configuration | MAX 28 Ports |
| Input Voltage | 100-240VAC/DC, Dual power inputs |
| Fansless | Yes |
| Backplane Bandwidth | 128 Gbps |
| Installasion | Rack-Mounted |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 442mm¡Á43.8mm¡Á335mm |
| 17.41 inch x 1.73 inch x 13.19 inch | |
| Weight | 4 kg |
| 8.82 lb | |
| MTBF | ¡Ý800,000H |
| Operating Temperature | -40 ¡ãC~ 85 ¡ãC |
| -40¡ãF ~ 185¡ãF | |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011; NEMA-TS2 (pending) |
| Rail Industry | EN50121-4 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010 (pending) |
| Shipbuilding Industry | GL (pending) |
Product Datasheet
- ¡ñ EMC Class 4
- ¡ñ Industrial fanless design
- ¡ñ Dual redundancy 220V industrial power supply
- ¡ñ Support relay alarm
- ¡ñ Business port, management port, power supply and relay terminal are on the front panel, complying to industrial operation mode
- ¡ñ Support industrial rings, STP, EAPS, ERPS etc.
- ¡ñ Support CPU protection function, limiting the attack of invalid packets on the CPU
- ¡ñ Support ring network recovery time <50ms (typical value)
- ¡ñ Any two ports can be grouped into self-recovery ring, and support multiple independent self-recovery rings.
- ¡ñ Provides packet loss protection mechanism to quickly recover from network failures
- ¡ñ Support SNMP management
- ¡ñ MTBF ¡Ý800,000h
Supported Options
Table 2 shows the supported options of the TNM4000-TP28HH4X8G24T.
MRD-MGIGA-GLX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM MRD-MGIGA-GEX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM MRD-MGIGA-GZX Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM MRD-G25-GLX Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM MRD-G25-GEX Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM MRD-G25-GZX Industrial Grade 2500BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM MRD-10GLS-LC Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 10KM MRD-10GRS-LC Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 20KM MRD-10GRS-LC Industrial Grade 10000BaseX SFP+ Module, Singlemode(1550), Dual Fibers, DDM, 40KM Compare to Similar Items
Table 3 shows the comparison to similar items of the TNM4000-TP28HH4X8G24T.
Product number Product description TNM4000-TP28HH4G8G24T 28-port Industrial Layer 2 Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 16 10/100/1000BaseT Ports, 8 100/1000Base(X/T) COMBO Ports, and 4 100/1000BaseX SFP Ports (SFP module not included). Standard 19-inch Rack Mount and 1U High, 1 Management Ethernet Port and 1 Management Serial CLI Port, 1 Alarm Relay Port (250VAC/125VDC 2A@250VAC/2A@30VDC), 1 SD slot, and 1 RST Bu????on. IP40 Protection Class, Operating Temperature from -40¡ãC to +85¡ãC. Dual Isolated 100-240V Power Inputs. DS-3T3728 16 x GE + 8 x combo + 4 x 10G SFP Operating Temperature -40 ¡ãC ~ 75 ¡ãC£¨HIKVISION£© Before Purchasing
Do you have any questions about the TNM4000-TP28HH4X8G24T price?
Contact us – Email Live Chat or [email protected].
Specification
TNM4000-TP28HH4X8G24T Datasheet
| TNM4000-TP28HH4X8G24T Specification | |
| Backplane Bandwidth | 128 Gbps |
| Processing Type | Store-and-Forward |
| MAC Table Size | 16K |
| Packet Buffer Size | 108 Mbti |
| Exchange Rate | 148,800 pps/100M; 1,488,000 pps/1000 M; 14,880,000 pps/10000M |
| Management Mode | Browser, Console, Telnet, SSH 2.0, Syslog, NTP/SNTP, STD-62 SNMPv3, SNMPv2c, SNMPv1, FTP/TFTP |
| Diagnosis Mode | Indicator light, journal file, relay, RMON, port mirroring, TRAP |
| Redundancy | RSTP, STP, MSTP, MRD-Ring®, port trunking |
| Time Synchronization | NTP |
| Others | 4K VLANS, IPv4/IPv6 multicast, storm control, support Jumbo Frame |
| Connection | 5-pin terminal block |
| Input Voltage | 100-240V, Dual inputs |
| Power Consumption | 35W |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Installasion | Rack-Mounted |
| Housing | Aluminum Alloy Housing |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 442mm×43.8mm×335mm |
| 17.41 inch x 1.73 inch x 13.19 inch | |
| Weight | 4 kg |
| 8.82 lb | |
| MTBF | ≥800,000H |
| Storage Temperature | -40 ¡æ ~ 85 ¡æ |
| -40¨H ~ 185¨H | |
| Operating Temperature | -40 ¡æ ~ 85 ¡æ |
| -40¨H ~ 185¨H | |
| Ambient Relative Humidity | 5 % ~ 95% (non-condensing) |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-31 |
| Circuit Board | Approved by IPC |
| EMI | FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A |
| EMS | IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 3 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 3 IEC (EN )61000-4-9, Class 5 |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011; NEMA-TS2 (pending) |
| Rail Industry | EN50121-4 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010(pending) |
| Shipbuilding Industry | GL (pending) |
