Product Model: TNM4000-FAT40HH8X8G24
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]

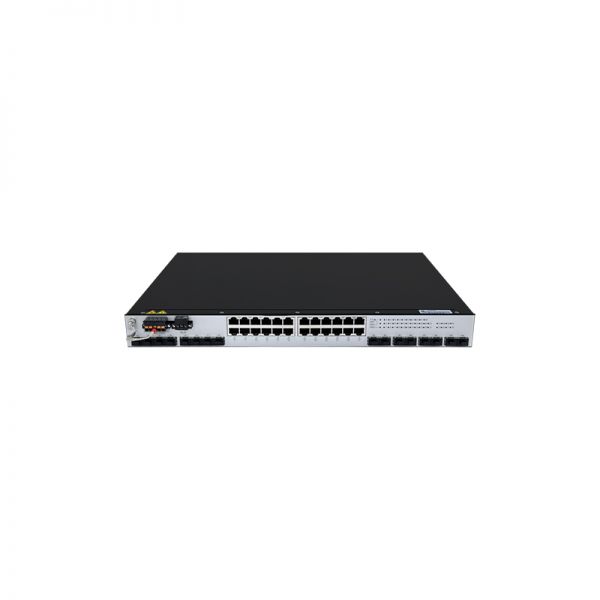

40-port Industrial Layer 3 TSN Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 24 10/100/1000BaseT Ports, 4 100/1000/2500/1000BaseX Ports, 4 1000/2500/10000BaseX SFP ports, 8 100/1000BaseX SFP Ports (SFP module not included). Standard 19-inch Rack Mount and 1U High, 1 Management Ethernet Port and 1 Management Serial CLI Port, 1 Alarm Relay Port (250VAC/125VDC 2A@250VAC/2A@30VDC), 1 SD slot, and 1 ZTP Button. IP40 Protection Class, Operating Temperature from -40°C to +85°C. Dual Isolated 100-240V Power Inputs. CENTAURI enabled.
Quick Spec
Table 1 shows the quick spec of the TNM4000-FAT40HH8X8G24
| Model | TNM4000-FAT40HH8X8G24 |
| Interface Configuration | 8 x 100/1000BaseX SFP 4 x 1000/2500/10000BaseX SFP 4 x 100/1000/2500/10000BaseX SFP 24 x 10/100/1000BaseT |
| Input Voltage | 100-240VAC(50-60Hz) & 100-240VDC, Dual power inputs |
| Fansless | Yes |
| Backplane Bandwidth | 224 Gbps |
| Installasion | Rack-Mounted |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 442mm×43.8mm×335mm |
| 17.41 inch x 1.72 inch x 13.19inch | |
| Weight | 4 kg |
| 8.82 lb | |
| MTBF | ≥600,000H |
| Operating Temperature | -40 °C~ 85 °C |
| -40°F ~ 185°F | |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011; NEMA-TS2 (pending) |
| Rail Industry | EN50121-4 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010 (pending) |
| Shipbuilding Industry | GL (pending) |
Product Datasheet
? 40GigabitEthernetports,including810GEthernetports
? Configurablebywebbrowser,Telnet,CLI
? Withfunctionsofdatapacketdropoutprotectionandquickrecoveryfromnetworkfailure ? Supportvariousmulticastprotocolsandstrongsafetyprotectionmechanism
? IGMPsnoopingandGMRPforfilteringtrafficfromindustrialEthernetprotocols
? QoS(IEEE802.1p/1QandTOS/DiffServ)toincreasedeterminism
? SNMPv1/v2c/v3fordifferentlevelsofnetworkmanagement
? Bandwidthmanagementtopreventunpredictablenetworkstatus
? Portmirroringforonlinedebugging
? Isolatedredundantpowerinputs
? Fanless,-40°Cto85°Coperatingtemperaturerange
? MTBF≥600,000h
Supported Options
Table 2 shows the supported options of the TNM4000-FAT40HH8X8G24
| MRD-MGIGA-GLX | Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM |
| MRD-MGIGA-GEX | Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM |
| MRD-MGIGA-GZX | Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM |
| MRD-G25-GLX | Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM |
| MRD-G25-GEX | Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM |
| MRD-G25-GZX | Industrial Grade 2500BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM |
| MRD-10GLS-LC | Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 10KM |
| MRD-10GRS-LC | Industrial Grade 10000BaseX SFP+ Module, Singlemode(1310), Dual Fibers, DDM, 20KM |
| MRD-10GRS-LC | Industrial Grade 10000BaseX SFP+ Module, Singlemode(1550), Dual Fibers, DDM, 40KM |
Before Purchasing
Do you have any questions about the TNM4000-FAT40HH8X8G24 price?
Contact us – Email Live Chat or [email protected].
TNM4000-FAT40HH8X8G24 Datasheet
| TNM4000-FAT40HH8X8G24 Specification | |
| Backplane Bandwidth | 224 Gbps |
| Switch Architecture | MIPS32 |
| Processing Type | Store-and-Forward |
| MAC Table Size | 32K |
| Packet Buffer Size | 32 Mbti |
| Exchange Rate | 148, 800 pps/100M ports; 1, 488, 000 pps/1000M ports; 14, 880, 000 pps/10000M ports |
| Management Mode | Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC3636 MAU, RFC2925 Ping MIB, MRD Private MIBs, SSH, HTTPS, Telnet |
| Diagnosis Mode | Indicator light, journal file, Relay, port mirroring, TRAP |
| Redundancy | MSTP, RSTP, port trunking, HIPER-RING, MRP |
| Time Synchronization | SNTP, PTPv2 |
| Others | IPv4/IPv6 multicast, storm control, MC/BC protection, support Jumbo Frame |
| Connection | 5-pin terminal block |
| Input Voltage | 100-240VAC(50-60Hz) & 100-240VDC, Dual power inputs |
| Power Consumption | 44W£¨without POE£© |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Installasion | Rack-Mounted |
| Housing | Die-casting aluminum alloy housing |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 442mm×43.8mm×335mm |
| 17.41 inch x 1.72 inch x 13.19inch | |
| Weight | 4 kg |
| 8.82 lb | |
| MTBF | ≥600,000H |
| Storage Temperature | -40 ¡æ ~ 85 ¡æ |
| -40¨H ~ 185¨H | |
| Operating Temperature | -40 ¡æ ~ 85 ¡æ |
| -40¨H ~ 185¨H | |
| Ambient Relative Humidity | 5 % ~ 95% (non-condensing) |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-31 |
| Circuit Board | Approved by IPC |
| EMI | FCC 47 CFR Part 15 Class A EN55032 Class A EN55035 Class A |
| EMS | IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 3 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 3 IEC (EN )61000-4-8, Class 5 |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | EN50121-4 |
| Rail Industry | EN50121-4 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010(pending) |
| Shipbuilding Industry | DNV-GL (pending) |
