Product Model: TNM4000-F-Chassis
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]

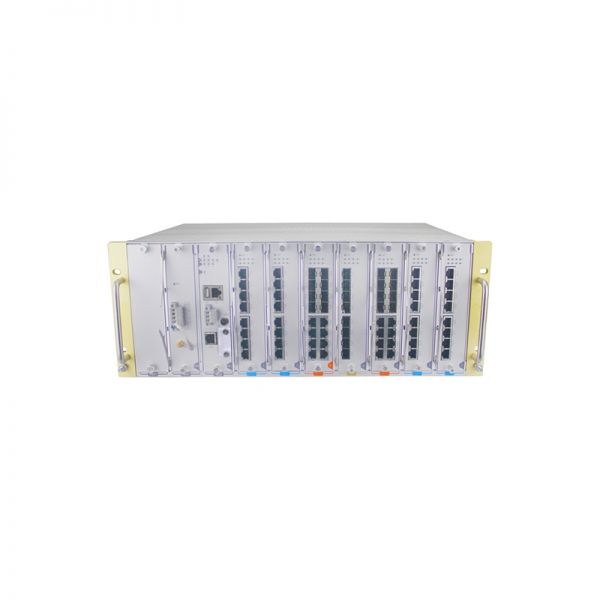

Total-Fanless TNM4000 Industrial Multi-Layer Multi-Protocol BackBone Switch Mainframe made from Anti-Corrosion Aluminum Alloy and Stainless Steel. Support up to 72 Ports. Standard 19-inch Rack Mount and 4U Height with 10 slots. 1 MSU slot (Including 1 T4K-MGT-II Module), and 7 Port Mod- ule slots (4 1.0G-slot, 2 2.5G-slot, 1 10G-slot), and 2 PSU slots (1+1 Redun- dant). IP30 Protection Class.
Quick Spec
Table 1 shows the quick spec of the TNM4000-F-Chassis.
| Model | TNM4000-F-Chassis |
| Interface Configuration | MAX 72 Ports |
| Fansless | Yes |
| Backplane Bandwidth | 304 Gbps |
| Installasion | Rack-Mounted |
| IP Rating | IP30; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 440mm¡Á177mm¡Á343mm |
| 17.33 inch x 6.97 inch x 13.51 inch | |
| Weight | 12 kg |
| 26.56 lb | |
| MTBF | ¡Ý800,000H |
| Operating Temperature | -40 ¡ãC~ 85 ¡ãC |
| -40¡ãF ~ 185¡ãF | |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011; NEMA-TS2 (pending) |
| Rail Industry | EN50121-4 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010 |
| Shipbuilding Industry | GL (pending) |
Product Datasheet
¡ñ Modular industrial switches with multiple slots for flexible configuration and high performance
¡ñ Support MRD-Ring? network redundancy for < 50 ms recovery time
¡ñ Any two ports can establish a self-recovery ring and support multiple independent self-recovery rings
¡ñ Built-in unified MicOS real-time operating systems for all MRDTM switches
¡ñ With functions of data packet dropout protection and quick recovery from network failure
¡ñ Multi-Protocol layer 3 routing meets the requirement of private network and provides smooth transition
¡ñ Support various multicast protocols and strong safety protection mechanism
¡ñ Provide bandwidth service with different levels in Ethernet service by speed limiting and traffic shaping in QoS of layer 2
¡ñ Support function of the static and dynamic allocation as well as limitation of CPU and real-time monitor the key operating parameters, including CPU utilization rate, RAM, supply voltage and mainboard voltage.
¡ñ Provide a full set of professional network management, monitoring and alarm system and support OPC
¡ñ Fanless, -40 to 85¡ãC wide operating temperature range
¡ñ MTBF >800, 000 hours
Supported Options
Table 2 shows the supported options of the TNM4000-F-Chassis.
| T4K-MGT-II | TYPE-II MSU Module for TNM4000 Modular BackBone Switch with 1 Man- agement Ethernet Port and 1 Management Serial CLI Port, 1 Alarm Relay Port, 1 PPS port. 1 USB slot and 1 SD slot for ACA adaptors. |
| T4K-LM-I-I | 1.0G-slot Port Module with 8 100/1000BaseT Ports. |
| T4K-LM-II-I | 2.5G-slot Port Module with 8 1000/2500BaseX Port (SFP module not includ- ed). |
| T4K-LM-II-II | 2.5G-slot Port Module with 8 100/1000Base(X/T) COMBO Ports (SFP mod- ule not included). |
| T4K-LM-III-IV | 10G-slot Port Module with 8 1000/2500/10000BaseX Ports (SFP module not included). |
| T4K-120W-HV | Power Supply Unit for TNM4000 Modular Core Switch. Built to last with Passive Cooling. 120W Output with Isolated 100-240VAC Input. |
| T4K-PAN-BLK | Blank Panel for TNM4000 Modular Core Switch. |
Before Purchasing
Do you have any questions about the TNM4000-F-Chassis price?
Contact us – Email Live Chat or [email protected].
TNM4000-F-Chassis Datasheet
| TNM4000-F-Chassis Specification | |
| Backplane Bandwidth | 304 Gbps |
| CPU | MIPS32 |
| Processing Type | Store-and-Forward |
| MAC Table Size | 16K |
| Packet Buffer Size | 2 Mbti |
| Exchange Rate | 148,800 pps/100M; 1,488,000 pps/1000 M; 14,880,000 pps/10000M |
| Management Mode | Browser, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Pri- vate MIBs |
| Diagnosis Mode | Indicator light, journal file, relay, RMON, port mirroring, TRAP |
| Redundancy | MRD-Ring®, MSTP, RSTP, port trunking |
| Time Synchronization | NTP, SNTP |
| Others | 4K VLANS, IPv4/IPv6 Multicast, storm control, support Jumbo Frame |
| Connection | |
| Input Voltage | |
| Power Consumption | |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Installasion | Rack-Mounted |
| Housing | Aluminum Alloy Housing |
| IP Rating | IP30; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 440mm×177mm×343mm |
| 17.33 inch x 6.97 inch x 13.51 inch | |
| Weight | 12 kg |
| 26.56 lb | |
| MTBF | ≥800,000H |
| Storage Temperature | -40 ¡æ ~ 85 ¡æ |
| -40¨H ~ 185¨H | |
| Operating Temperature | -40 ¡æ ~ 85 ¡æ |
| -40¨H ~ 185¨H | |
| Ambient Relative Humidity | 5 % ~ 95% (non-condensing) |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-31 |
| Circuit Board | Approved by IPC |
| EMI | FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A |
| EMS | IEC(EN)61000-4-2, Class 4 IEC(EN)61000-4-4, Class 4 IEC(EN)61000-4-5, Class 4 IEC(EN)61000-4-11, Class 4 IEC(EN)61000-4-12, Class 4 |
| Product Safety | CE.CB.IEC.IECEE IEC/EN60950-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011; NEMA-TS2 (pending) |
| Rail Industry | EN50121-4 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010 |
| Shipbuilding Industry | GL (pending) |
