Product Model: TCC4100-FAB24UC0C0
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]

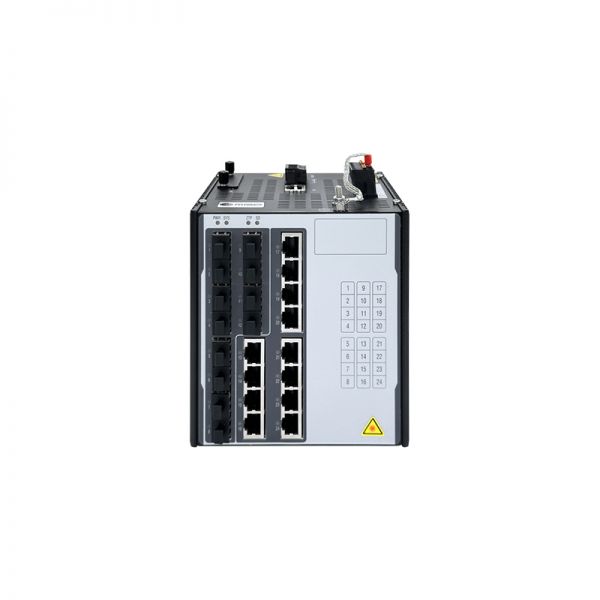

Layer2 industrial switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel, 12 100/1000BaseX SFP Port (SFP module not included) and 12 10/100/1000BaseT Ports. 1 management serial CLI port, 1 alarm relay port (250VAC, 2A@250VAC or 125VDC, 2A@30VDC). Isolated Dual Universal 18~300VDC or 90~264VAC Power Inputs. IP40 Protection Class. Working temperature-40°C ~+85°C.CENTAURIenabled.
Quick Spec
Table 1 shows the quick spec of the TCC4100-FAB24UC0C0
| Model | TCC4100-FAB24UC0C0 |
| Interface Configuration | 12 x 100/1000BaseX SFP Ports 12 x 10/100/1000BaseT Ports |
| Input Voltage | 18~300VDC or 90~264VAC |
| Fansless | Yes |
| Backplane Bandwidth | 52 Gbps |
| Installasion | DIN-Rail |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 130mm×140mm×110mm |
| 5.12 inch x 5.51 inch x 4.34inch | |
| Weight | 1.5 kg |
| 3.11 lb | |
| MTBF | ≥400,000H |
| Operating Temperature | -40 °C~ 85 °C |
| -40°F ~ 185°F | |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011; NEMA-TS2 (pending) |
| Rail Industry | EN50121-4 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010 (pending) |
| Shipbuilding Industry | GL (pending) |
Product Datasheet
? Supportupto1210/100/1000BaseTPortsand12100/1000BaseXSFPPorts
? Configurablebywebbrowser,Telnet,CLI
? Withfunctionsofdatapacketdropoutprotectionandquickrecoveryfromnetworkfailure ? Supportvariousmulticastprotocolsandstrongsafetyprotectionmechanism
? IGMPsnoopingandGMRPforfilteringtrafficfromindustrialEthernetprotocols
? QoS(IEEE802.1P/1QandTOS/DiffServ)toincreasedeterminism
? SNMPv1/v2c/v3fordifferentlevelsofnetworkmanagement
? RMONforproactiveandefficientnetworkmonitoring
? Bandwidthmanagementtopreventunpredictablenetworkstatus ? Portmirroringforonlinedebugging
? Isolatedredundantdualinputspower
? Fanless,-40°Cto85°Coperatingtemperaturerange
Supported Options
Table 2 shows the supported options of the TCC4100-FAB24UC0C0
| MRD-MGIGA-GLX | Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM |
| MRD-MGIGA-GEX | Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM |
| MRD-MGIGA-GZX | Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM |
| MRD-MGIGA-GSX-850 | Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M |
| MRD-MGIGA-GSX | Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM |
Before Purchasing
Do you have any questions about the TCC4100-FAB24UC0C0 price?
Contact us – Email Live Chat or [email protected].
TCC4100-FAB24UC0C0 Datasheet
| TCC4100-FAB24UC0C0 Specification | |
| Backplane Bandwidth | 52 Gbps |
| Processing Type | Store-and-Forward |
| MAC Table Size | 8K |
| RAM: | ¡¡ |
| Exchange Rate | 148,800 pps/100M; 1,488,000 pps/1000 M; |
| Management Mode | Web, Serial Port, STD-17 MIB-II, STD-58 SMIv2, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC3636 MAU, RFC2925 Ping MIB, MRD Private MIBs, SSH, HTTPs, Telnet |
| Diagnosis Mode | Indicator light, journal file, Relay, port mirroring, TRAP |
| Redundancy | STP, MSTP, RSTP, port trunking |
| Time Synchronization | NTP |
| Others | 4K VLANS, IPv4/IPv6 multicast, storm control, support Jumbo Frame |
| Connection | 1 removable 5-contact terminal block |
| Input Voltage | 18~300VDC or 90~264VAC |
| Power Consumption | 15W£¨without POE£© |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Installasion | DIN-Rail |
| Housing | Die-casting aluminum alloy housing |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 130mm×140mm×110mm |
| 5.12 inch x 5.51 inch x 4.34inch | |
| Weight | 1.5 kg |
| 3.11 lb | |
| MTBF | ≥400,000H |
| Storage Temperature | -40 ¡æ ~ 85 ¡æ |
| -40¨H ~ 185¨H | |
| Operating Temperature | -40 ¡æ ~ 85 ¡æ |
| -40¨H ~ 185¨H | |
| Ambient Relative Humidity | 5 % ~ 95% (non-condensing) |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-31 |
| Circuit Board | Approved by IPC |
| EMI | FCC 47 CFR Part 15 Class A EN55032 Class A EN55035 Class A |
| EMS | IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 3 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 3 IEC (EN )61000-4-8, Class 5 |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011(pending) |
| Rail Industry | EN50155; IEC/EN61373; EN50121 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010(pending) |
| Shipbuilding Industry | DNV-GL (pending) |
