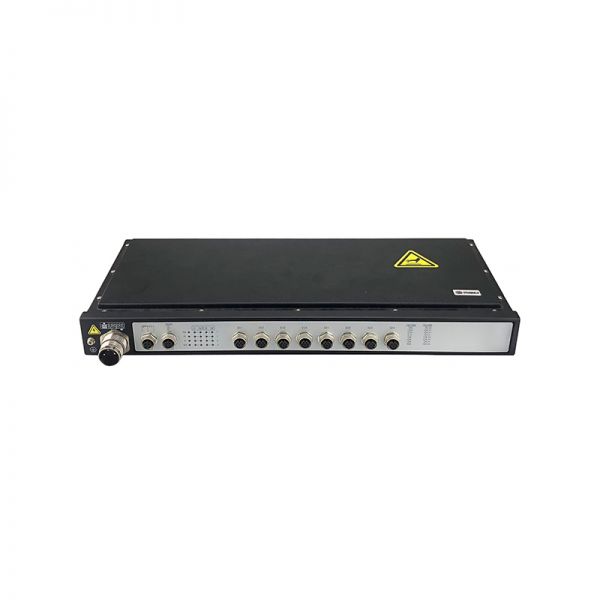

Product Model: TCC4100-EHR0080I
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]
Enhanced Layer3, 8 M12 A-Code 10/100/1000BaseT Ports (M12 connector not included). Isolated 100-240V Power Supply.
Quick Spec
Table 1 shows the quick spec of the TCC4100-EHR0080I
| Model | TCC4100-EHR0080I |
| Interface Configuration | 8 x M12 X-code 10/100/1000BaseT |
| Input Voltage | 100-240V |
| Fansless | Yes |
| Backplane Bandwidth | 68 Gbps |
| Installasion | Rack-Mounted |
| IP Rating | IP54/IP67 |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 440mm x 44.2mm x 200mm |
| 17.32 inch x 1.74 inch x 7.87 inch | |
| Weight | 2 kg |
| 4.41 lb | |
| MTBF | ≥600,000H |
| Operating Temperature | -40 °C~ 85 °C |
| -40°F ~ 185°F | |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011; |
| Rail Industry | EN50155; IEC/EN61373; EN50121;EN45545 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010 |
| Shipbuilding Industry | GL (pending) |
Product Datasheet
¡ñ Linear switches with high performance and flexible configuration
¡ñ Support up to 68Gbps backplane bandwidth
¡ñ Support up to 8 PoE ports
¡ñ Support Power-over-Ethernet (compliant with IEEE 802.3af/at standards)
¡ñ Each PoE port provides up to 30W output power
¡ñ PoE management: PoE device detection, PoE power management
¡ñ Support MRD-Ring® network redundancy for < 50 ms recovery time
¡ñ Support Media Redundancy Protocol (compliant with IEC62439)
¡ñ Support BYPASS function for be????er network reliability
Compare to Similar Items
Table 2 shows the comparison to similar items of the TCC4100-EHR0080I
| Product number | Product description |
| TCC4100-EMR0080I | Enhanced Layer3, 8 M12 A-Code 10/100/1000BaseT Ports (M12 connector not included). Isolated Dual 100-240V Power Supply. |
| TCC4100-EHR00C0IBP | Enhanced Layer3, 12 M12 A-Code 10/100/1000BaseT Ports (M12 connector not included, 4 Ports support BY-PASS Function). Isolated 100-240V Power Supply. |
| TCC4100-EMR00C0IBP | Enhanced Layer3, 12 M12 A-Code 10/100/1000BaseT Ports (M12 connector not included, 4 Ports support BY-PASS Function). Isolated Dual 100-240V Power Supplies. |
| TCC4100-EHR00C0IP130BP | Enhanced Layer3, 8 M12 A-Code 802.3af/at PoE 10/100/1000BaseT Ports (M12 connector not included) and 4 M12 A-Code 10/100/1000BaseT Ports (Support BY-PASS Function). Isolated 100-240V Power Supply with Internal 130W PoE budget. |
Before Purchasing
Do you have any questions about the TCC4100-EHR0080I price?
Contact us – Email Live Chat or [email protected].
TCC4100-EHR0080I Datasheet
| TCC4100-EHR0080I Specification | |
| Backplane Bandwidth | 68 Gbps |
| CPU | 333MHz RISC |
| Processing Type | Store-and-Forward |
| MAC Table Size | 16K |
| Packet Buffer Size | 4Mbti |
| Exchange Rate | 148,800 pps/100M; 1,488,000 pps/1000 M |
| Management Mode | Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2925 Ping MIB, MRD Private MIBs |
| Diagnosis Mode | Indicator light, journal file, relay, RMON, port mirroring, TRAP |
| Redundancy | MRD-Ring®, MSTP, RSTP, port trunking |
| Time Synchronization | SNTP |
| Others | 4K VLANS, IPv4/IPv6 multicast, storm control, MC/BC protection, support Jumbo Frame |
| Connection | |
| Input Voltage | |
| Power Consumption | 35W |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Installasion | Rack-Mounted |
| Housing | Aluminum Alloy Housing |
| IP Rating | IP54/IP67 |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 440mm x 44.2mm x 200mm |
| 17.32 inch x 1.74 inch x 7.87 inch | |
| Weight | 2 kg |
| 4.41 lb | |
| MTBF | ≥600,000H |
| Storage Temperature | -40 ¡æ ~ 85 ¡æ |
| -40¨H ~ 185¨H | |
| Operating Temperature | -40 ¡æ ~ 85 ¡æ |
| -40¨H ~ 185¨H | |
| Ambient Relative Humidity | 5 % ~ 95% (non-condensing) |
| Vibration and Shock | IEC 60068-2-6 £¬ IEC 60068-2-27 |
| Freefall | IEC 60068-2-31 |
| Circuit Board | Approved by IPC |
| EMI | FCC 47 CFR Part 15 Class A EN55032 Class A EN55035 Class A |
| EMS | IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-3, Class 4 IEC (EN )61000-4-4, Class 4 IEC (EN )61000-4-5, Class 4 IEC (EN )61000-4-6, Class 4 IEC (EN )61000-4-9, Class 4 |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011; |
| Rail Industry | EN50121, EN50155, IEC/EN61373 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010 |
| Shipbuilding Industry | GL (pending) |
