Product Model: TCC4100-CU80G0
Retail Price: US$5,429.00
Email Us To Get Special Price Today: [email protected]

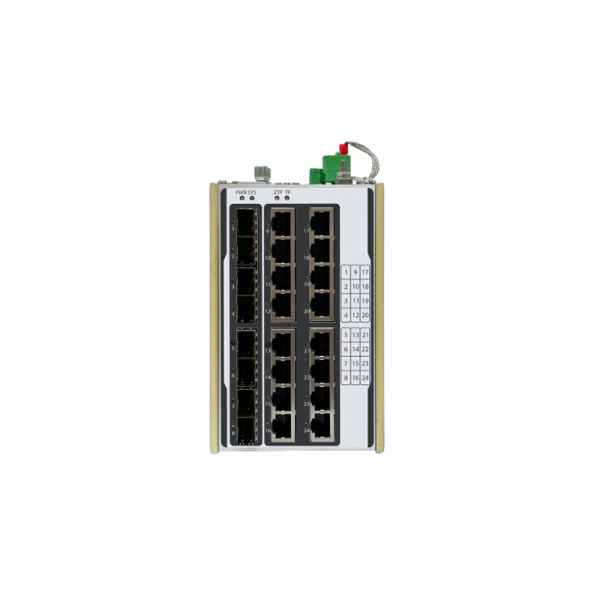

TCC4100 Layer3 Industrial Switch made from Anti-Corrosion Aluminum Alloy and Stainless Steel. 8100/1000/2500BaseX SFP Ports (SFP module not included) and 16 10/100/1000BaseT Ports, Isolated Dual Universal Power Inputs (18~300VDC or 90~264VAC ). IP40 protection class. Working Temperature ¨C40¡ãC ~ +85¡ãC.
Quick Spec
Table 1 shows the quick spec of the TCC4100-CU80G0.
| Model | TCC4100-CU80G0 |
| Interface Configuration | 8 x 100/1000/2500BaseX SFP Ports 16 x 10/100/1000BaseT Ports |
| Input Voltage | 18~300VDC or 90~264VAC |
| Fansless | Yes |
| Backplane Bandwidth | 72 Gbps |
| Installasion | DIN-Rail |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 88mm x 140mm x 110mm |
| 3.47 inch x 5.51 inch x 4.34inch | |
| Weight | 1.4 kg |
| 3.09 lb | |
| MTBF | ¡Ý600,000H |
| Operating Temperature | -40 ¡ãC~ 85 ¡ãC |
| -40¡ãF ~ 185¡ãF | |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011; NEMA-TS2 (pending) |
| Rail Industry | EN50121-4 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010 |
| Shipbuilding Industry | GL (pending) |
Product Datasheet
¡ñ Linear switches with high performance and flexible configuration
¡ñ Support MRD-Ring? network redundancy for < 50 ms recovery time
¡ñ Support Media Redundancy Protocol (compliant with IEC62439)
¡ñ Any two ports can establish a self-recovery ring and support multiple independent self-recovery rings
¡ñ Support Dying gasp function and initiatively report power-down state through SNMP protocol
¡ñ Built-in unified MicOS real-time operating systems for all MRD? switches
¡ñ Dual redundant power inputs design
¡ñ Fanless, -40 to 85¡ãC wide operating temperature range
¡ñ MTBF >600, 000 hours
Supported Options
Table 2 shows the supported options of the TCC4100-CU80G0.
| MRD-MGIGA-GLX | Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM |
| MRD-MGIGA-GEX | Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM |
| MRD-MGIGA-GZX | Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM |
| MRD-G25-GLX | Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM |
| MRD-G25-GEX | Industrial Grade 2500BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM |
| MRD-G25-GZX | Industrial Grade 2500BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM |
Compare to Similar Items
Table 3 shows the comparison to similar items of the TCC4100-CU80G0.
| Product number | Product description |
| MDS-G4020-T | 16 x FE(MOXA) +4 x GE |
Before Purchasing
Do you have any questions about the TCC4100-CU80G0 price?
Contact us – Email Live Chat or [email protected].
TCC4100-CU80G0 Datasheet
| TCC4100-CU80G0 Specification | |
| Backplane Bandwidth | 72 Gbps |
| CPU | 333MHz RISC |
| Processing Type | Store-and-Forward |
| MAC Table Size | 16K |
| Packet Buffer Size | 4Mbit |
| Exchange Rate | 148,800 pps/100M; 1,488,000 pps/1000 M; |
| Management Mode | Web, serial port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Pri- vate MIBs, SSH, HTTPS, Telnet |
| Diagnosis Mode | Indicator light, journal file, relay, RMON, port mirroring, TRAP |
| Redundancy | MRD-Ring® , MRP, RSTP, port trunking |
| Time Synchronization | SNTP |
| Others | 4K VLANS, IPv4/IPv6 multi-cast, storm control, MC/BC protection, support Jumbo Frame |
| Connection | 5-pin terminal block |
| Input Voltage | 18~300VDC or 90~264VAC |
| Power Consumption | 28W |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Installasion | DIN-Rail |
| Housing | Aluminum Alloy Housing |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 88mm x 140mm x 110mm |
| 3.47 inch x 5.51 inch x 4.34inch | |
| Weight | 1.4 kg |
| 3.09 lb | |
| MTBF | ≥600,000H |
| Storage Temperature | -40 ¡æ ~ 85 ¡æ |
| -40¨H ~ 185¨H | |
| Operating Temperature | -40 ¡æ ~ 85 ¡æ |
| -40¨H ~ 185¨H | |
| Ambient Relative Humidity | 5 % ~ 95% (non-condensing) |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-31 |
| Circuit Board | Approved by IPC |
| EMI | FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A |
| EMS | IEC (EN)61000-4-2, Class 4 IEC (EN)61000-4-4, Class 3 IEC (EN)61000-4-5, Class 4 IEC (EN)61000-4-8, Class 5 IEC (EN)61000-4-11, Class 4 IEC (EN)61000-4-12, Class 3 |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| Transportaon Industry | JT/T817-2011 |
| Rail Industry | EN50155; IEC/EN61373; EN50121 |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Industrial Control Industry | UL/cUL61010 |
| Shipbuilding Industry | DNV-GL (pending) |
