Product Model: SRS2000-SC28HH4X8C16F
Retail Price: US$888.42
Email Us To Get Special Price Today: [email protected]

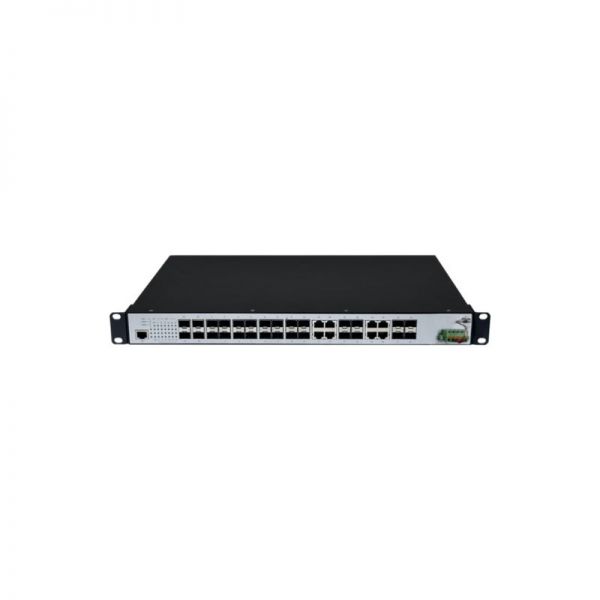

28-port Layer 3 industrial switch made from Anti-corrosion aluminum alloy, support 16 10/100/1000BaseX SFP ports + 8 100/1000Base(X/T) Combo ports + 4 100/1000/10000BaseX SFP ports. 1U high, rack-mounted. IP30 protection class, operating temperature -40 ¡ã C ~ +75 ¡ã C. Dual isolated power inputs (100~240V).
Quick Spec
Table 1 shows the quick spec of the SRS2000-SC28HH4X8C16F
| Model | SRS2000-SC28HH4X8C16F |
| Interface Configuration | 16 10/100/1000BaseX SFP ports + 8 100/1000Base(X/T) Combo ports + 4 100/1000/10000BaseX SFP |
| Input Voltage | 100 ~ 240V, dual inputs |
| Fansless | Yes |
| Backplane Bandwidth | 108 Gbps |
| Installasion | Rack-Mounted |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 440mm ¡Á 43.8mm ¡Á 200mm |
| 17.33 inch x 1.73 inch x 7.87 inch | |
| Weight | 1.7 kg |
| 3.75 lb | |
| MTBF | ¡Ý400,000H |
| Operating Temperature | -40 ¡ãC~ 75 ¡ãC |
| -40¡ãF ~ 167¡ãF | |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A |
Product Datasheet
- ¡ñ All 1000M ports
¡ñ 56Gbps backplane bandwidth
¡ñ Wide and varied power supply range
¡ñ Non-rust aluminum alloy housing and torx screws
¡ñ Support network management
¡ñ All ports support line speed forwarding and automatic turnover, supporting long-distance transmission
¡ñ Support one-click factory setting restoration and restart
¡ñ Support uploading and downloading configuration files
¡ñ Support IEEE 802.3af/at PoE
¡ñ Each PoE supports 802.1af and 802.1at
¡ñ Lightning protection: power port ¡À4KV, RJ45 port ¡À4KV
¡ñ IP40 protection classSupported Options
Table 2 shows the supported options of the SRS2000-SC28HH4X8C16F
MRD-MGIGA-GLX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM MRD-MGIGA-GEX Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM MRD-MGIGA-GZX Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM MRD-MGIGA-GSX-850 Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M MRD-MGIGA-GSX Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM Before Purchasing
Do you have any questions about the SRS2000-SC28HH4X8C16F price?
Contact us – Email Live Chat or [email protected].
Specification
SRS2000-SC28HH4X8C16F Datasheet
| SRS2000-SC28HH4X8C16F Specification | |
| Backplane Bandwidth | 108 Gbps |
| Processing Type | Store-and-Forward |
| MAC Table Size | 16K |
| Packet Buffer Size | 12Mbti |
| Exchange Rate | 148,800pps/100M port, 1,488,000pps/1000M port, 1,488,000,000pps/10000M |
| Management Mode | WEB browser, Console, Telnet, SSH 2.0, Syslog, NTP/SNTP, STD-62 SNMPv3, SNMPv1, SNMPv2, FTP/TFTP |
| Diagnosis Mode | |
| Redundancy | RSTP, STP, MSTP, Port Trunking, MRD-Ring |
| Time Synchronization | NTP |
| Others | 4K VLANS, IPv4/IPv6 Multicast, storm control, support Jumbo Frame |
| Connection | 5-PIN terminal block |
| Input Voltage | 100 ~ 240V, dual inputs |
| Power Consumption | 37W£¨without POE£© |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Installasion | Rack-Mounted |
| Housing | Aluminum Alloy Housing |
| IP Rating | IP40; |
| Conformal Coated | Optional |
| Dimensions (W x H x D) | 440mm ¡Á 43.8mm ¡Á 200mm |
| 17.33 inch x 1.73 inch x 7.87 inch | |
| Weight | 1.7 kg |
| 3.75 lb | |
| MTBF | ¡Ý300,000H |
| Storage Temperature | -40 ¡æ ~ 85 ¡æ |
| -40¨H ~ 185¨H | |
| Operating Temperature | -40 ¡æ~ 75 ¡æ |
| -40¨H ~ 167¨H | |
| Ambient Relative Humidity | 5 % ~ 95% (non-condensing) |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-31 |
| Circuit Board | Approved by IPC |
| EMI | FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A |
| EMS | IEC(EN)61000-4-2, Class 4 IEC(EN)61000-4-3, Class 3 IEC(EN)61000-4-4, Class 4 IEC(EN)61000-4-5, Class 4 IEC(EN)61000-4-6, Class 3 IEC(EN)61000-4-8, Class 5 |
| Product Safety | EN/IEC62368-1 |
| EMC | EN 55032 EN 55035 EN IEC61000-3-2 EN61000-3-3 FCC Part 15 Subpart B Class A |
| Others | Test Report from Ministry of Public Security, Network Access License, RoHS |
