MRD SDS300-W12R4080 Price & Product Datasheet

Product Model: SDS300-W12R4080

Retail Price: US$171.95

Email Us To Get Special Price Today: [email protected]

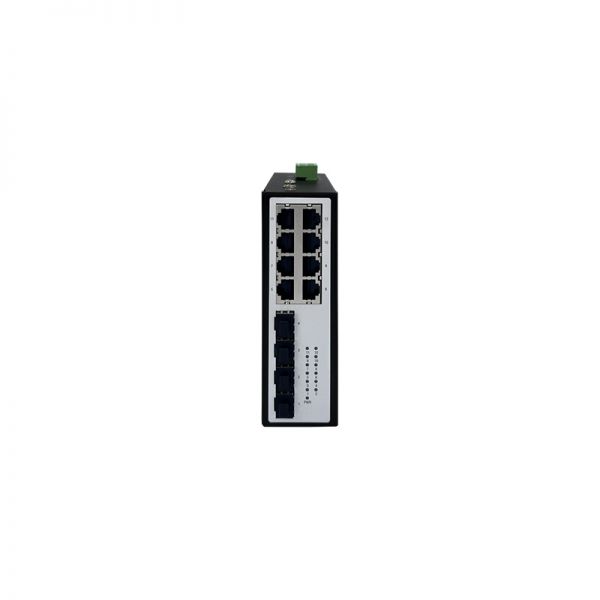

12-Port DIN-Rail WEB Managed Industrial Switch made from Anti-Corrosion aluminum alloy, support 4 100/1000BaseX SFP ports (SFP module not included) + 8 10/100/1000BaseT ports. IP40 protection class. Operating temperature -25¡ãC ~ +75¡ãC. Dual redundant power inputs, 9.6~60VDC & 18~30VAC.

Quick Spec

Table 1 shows the quick spec of the SDS300-W12R4080

Model	SDS300-W12R4080
Interface Configuration	4 x 10/100/1000 BaseX SFP 8 x 10/100/1000 BaseT
Input Voltage	9.6 ~ 60VDC & 18 ~ 30VAC, dual inputs
Fansless	Yes
Backplane Bandwidth	52 Gbps
Installasion	DIN-rail mounting
IP Rating	IP40;
Conformal Coated	Optional
Dimensions (W x H x D)	42mm ¡Á 140mm ¡Á 110mm
	1.65 inch x 5.51 inch x 4.33 inch
Weight	0.6 kg
	1 lb
MTBF	¡Ý300,000H
Operating Temperature	-40 ¡ãC~ 75 ¡ãC
	-40¡ãF ~ 167¡ãF
Product Safety	CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A

Product Datasheet

• ● All 1000M ports
• ● 52 Gbps backplane bandwidth
• ● Wide and varied power supply range
• ● Non-rust aluminum alloy housing and torx screws
• ● Support WEB Management
• ● All ports support line speed forwarding and automatic turnover, supporting long-distance transmission
• ● Support one-click port isolation and self-healing ring network
• ● Support one-click factory settings restoration and restart
• ● Support uploading and downloading configuration files
• ● Lightning protection: power supply ¡À4KV, RJ45 port ¡À4KV

  Supported Options

  Table 2 shows the supported options of the SDS300-W12R4080

  MDP-IE50W-24	50W Industrial DIN-Rail Power Supply. Input: 110/220 VAC/VDC (90~264VAC/88~300VDC) Output: 24VDC/2.08A Operating Temperature from -40¡ãC to +75¡ãC with conventional cooling Class 2 Power Supply
  MRD-MGIGA-GLX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 20KM
  MRD-MGIGA-GEX	Industrial Grade 1000BaseX SFP Module, Singlemode(1310), Dual Fibers, DDM, 40KM
  MRD-MGIGA-GZX	Industrial Grade 1000BaseX SFP Module, Singlemode(1550), Dual Fibers, DDM, 80KM
  MRD-MGIGA-GSX-850	Industrial Grade 1000BaseX SFP Module, Multimode(850), Dual Fibers, DDM, 550M
  MRD-MGIGA-GSX	Industrial Grade 1000BaseX SFP Module, Multimode(1310), Dual Fibers, DDM, 2KM

  Compare to Similar Items

  Table 3 shows the comparison to similar items of the SDS300-W12R4080

  Product number	Product description
  DS-3T1500	4 x GX SFP + 8 x GE MTBF=100,000h. Input DC 12-36 V

  Before Purchasing

  Do you have any questions about the SDS300-W12R4080 price?

  Contact us – Email Live Chat or [email protected].

  Specification

  SDS300-W12R4080 Datasheet

  SDS300-W12R4080 Specification
  Backplane Bandwidth	52 Gbps
  Processing Type	Store-and-Forward
  MAC Table Size	8K
  Packet Buffer Size	4.1 Mbit
  Exchange Rate	1,488,000 pps/1000M ports
  Management Mode	WEB based on HTTP, SNMPv1, SNMPv2
  	Diagnosis Mode
  Redundancy	RSTP
  DIP Switch:	VLAN, RSTP
  Others	4K VLANS, IPv4 Multicast, storm control, support Jumbo Frame
  Connection	5-PIN terminal block
  Input Voltage	9.6~60 VDC & 18~30 VAC
  Power Consumption	10W
  Overload Current Protection	Supported
  Reverse Polarity Protection	Supported
  Installasion	DIN-rail mounting
  Housing	Die-casting aluminum alloy housing
  IP Rating	IP40;
  Conformal Coated	Optional
  Dimensions (W x H x D)	42mm ¡Á 140mm ¡Á 110mm
  	1.65 inch x 5.51 inch x 4.33 inch
  Weight	0.6 kg
  	1 lb
  MTBF	¡Ý300,000H
  Storage Temperature	-40 ¡æ ~ 85 ¡æ
  	-40¨H ~ 185¨H
  Operating Temperature	-40 ¡æ~ 75 ¡æ
  	-40¨H ~ 167¨H
  Ambient Relative Humidity	5 % ~ 95% (non-condensing)
  Vibration	IEC 60068-2-6
  Shock	IEC 60068-2-27
  Freefall	IEC 60068-2-31
  Circuit Board	Approved by IPC
  EMI	FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A
  EMS	IEC(EN)61000-4-2, Class 4 IEC(EN)61000-4-3, Class 3 IEC(EN)61000-4-4, Class 4 IEC(EN)61000-4-5, Class 4 IEC(EN)61000-4-6, Class 3 IEC(EN)61000-4-8, Class 5
  Product Safety	EN/IEC62368-1
  EMC	EN 55032 EN 55035 EN IEC61000-3-2 EN61000-3-3 FCC Part 15 Subpart B Class A
  Others	Test Report from Ministry of Public Security, Network Access License, RoHS
