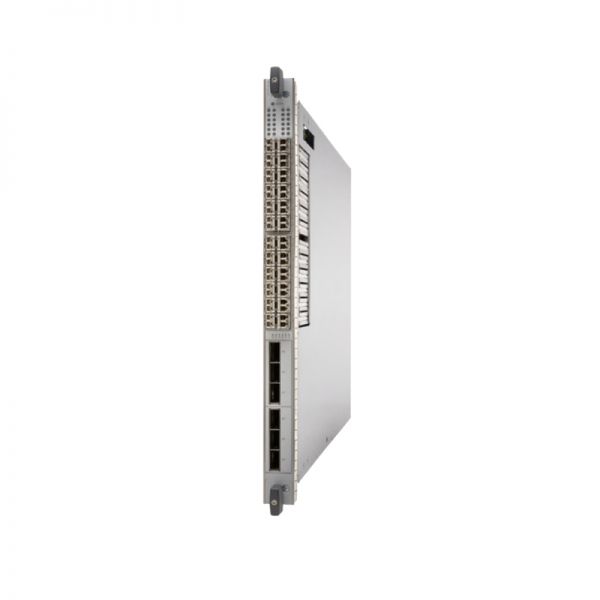

Product Model: MPC5E-40G10G
Retail Price: US$200,752.00
Email Us To Get Special Price Now: [email protected]
The Juniper MPC5E-40G10G is a versatile network module suitable for engineers and procurement personnel seeking efficient L2/L2.5 and reduced L3 features. It accommodates up to 2 million routes in the FIB and 6 million routes in the RIB, making it ideal for complex networking environments.
MPC5E-40G10GProduct Datasheet
- ● Full L2/L2.5 support
- ● Reduced L3 features
- ● 2M routes in FIB
- ● 6M routes in RIB
- ● 32 L3VPN instances
Product Features Comparison
| Feature | MPC5E-40G10G | MPC7E-10G | MPC1E-10G | MPC3E-10G | MPC7E-100G | MPC5E-100G |
|---|---|---|---|---|---|---|
| Full L2/L2.5 Support | Yes | Yes | Yes | Yes | Yes | Yes |
| Reduced L3 Features | Yes | No | No | No | No | No |
| FIB Routes | 2M | 4M | 1M | 2M | 8M | 4M |
| RIB Routes | 6M | 10M | 2M | 6M | 15M | 10M |
| L3VPN Instances | 32 | 64 | 16 | 32 | 128 | 64 |
| Optics Required | Sold Separately | Sold Separately | Included | Sold Separately | Included | Sold Separately |
MPC5E-40G10G Product Application Scenarios
- ● High-capacity routing environments
- ● Data center interconnects
- ● Service provider edge routing
Optional Add-ons
| Accessory Model | Description |
|---|---|
| EX-SFP-10GE-LRM | 10GBASE-LRM SFP+ transceiver |
| EX-QSFP-100G-LR4 | 100GBASE-LR4 QSFP28 transceiver |
| EX-QSFP-40G-SR4 | 40GBASE-SR4 QSFP+ transceiver |
Get More Information
Discover unbeatable prices and fast shipping for the Juniper MPC5E-40G10G. Access the detailed MPC5E-40G10G datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].
Specification
MPC5E-40G10G Datasheet
MPC5E-40G10G Specifications | |
| Brand | Juniper |
| Model | MPC5E-40G10G |
| Layer 2 Features | Full scale |
| Layer 2.5 Features | Full scale |
| Layer 3 Features | Reduced scale |
| Forwarding Information Base (FIB) Capacity | Up to 2M routes |
| Routing Information Base (RIB) Capacity | Up to 6M routes |
| L3VPN Instances per Card | Up to 32 instances |
| Optics | Sold separately |
| Interfaces Supported | 40G/10G |
| Power Consumption | Depends on configuration and optics |
| Operating Temperature Range | -40°C to +65°C |
| Storage Temperature Range | -40°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Compliance | NEBS, ETSI, IEEE |
| Dimensions | 30.48 cm x 40.64 cm x 7.37 cm |
| Maximum Number of LSPs | 320K |
| Maximum Number of LDP Sessions | 4000 |
| Maximum Number of BGP Sessions | 10,000 |
| Initial Price | Includes L2/L2.5 full scale, L3 reduced scale |
| Warranty | 1 year limited |
