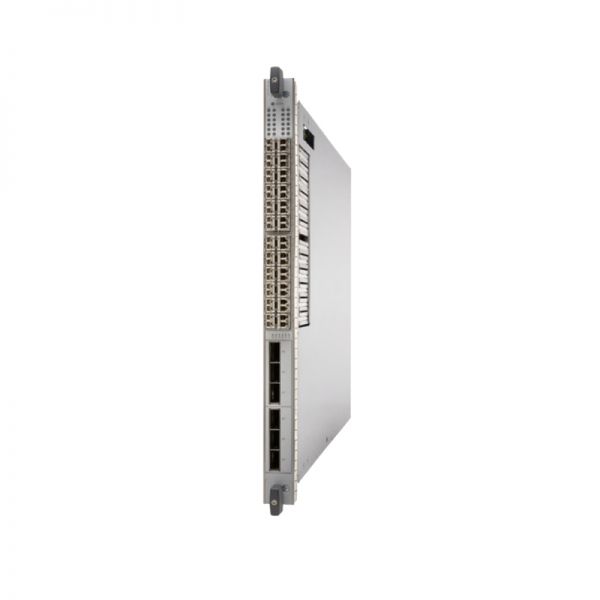

Product Model: MPC5E-40G10G-IRB
Retail Price: US$0
Email Us To Get Special Price Now: [email protected]
The Juniper MPC5E-40G10G-IRB is an advanced network card in the MPC category designed for high-performance data transfer and processing. Ideal for engineers and procurement personnel, it offers extensive Layer 2, Layer 2.5, and Layer 3 functionality, including 32 L3VPN licenses, making it suitable for robust network environments.
MPC5E-40G10G-IRBProduct Datasheet
- ● High-speed data transfer
- ● Supports L2, L2.5, L3
- ● Includes 32 L3VPN licenses
- ● Scalable network solution
- ● Optics sold separately
Product Features Comparison
| Feature | MPC5E-40G10G | MPC4E-3D-40G | MPC3E-3D-20GE | MPC7E-MRATE | MPC2E-3D-Q | MPC1E-3D | MPC6E-3D-100G |
|---|---|---|---|---|---|---|---|
| Data Transfer Rate | 40G/10G | 40G | 20G | MRATE | 100G | 10G | 100G |
| Layer Support | L2, L2.5, L3 | L2, L3 | L3 | L2, L3 | L3 | L2 | L2, L3 |
| L3VPN Licenses | 32 | 16 | 8 | 20 | 5 | 10 | 25 |
| Scalability | Full-scale | Full-scale | Partial | Full-scale | Limited | Limited | Full-scale |
| Optics | Sold Separately | Included | Sold Separately | Included | Included | Sold Separately | Included |
MPC5E-40G10G-IRB Product Application Scenarios
- ● Data center interconnects
- ● High-traffic enterprise networks
- ● Advanced network services
Optional Add-ons
| Model | Description |
|---|---|
| SRX-MPC3-10G | 10G Modular Port Concentrator |
| SRX-FPC3-40G | 40G Flexible PIC Concentrator |
| EX4600-24F | 24-Port 10GbE SFP+ Switch |
Get More Information
Discover unbeatable prices and fast shipping for the Juniper MPC5E-40G10G-IRB. Access the detailed MPC5E-40G10G-IRB datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].
Specification
MPC5E-40G10G-IRB Datasheet
MPC5E-40G10G-IRB Specifications | |
| Model | MPC5E-40G10G-IRB |
| Brand | Juniper |
| Included Licenses | Full scale L2, L2.5, L3 & 32 L3VPN licenses |
| Optics | Sold separately |
| Form Factor | Modular |
| Port Types | 40G and 10G |
| Interface Type | 10GbE and 40GbE |
| Port Density | 40 ports of 10GbE or 4 ports of 40GbE |
| Switching Capacity | 1.28 Tbps |
| Forwarding Rate | 960 Mpps |
| Route Scale | 1 million routes |
| L3VPN Scale | 64,000 members |
| Queue Configurations | 12,000 queues per port |
| Power Consumption | 500 Watts |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| MTBF | 490,000 hours |
| Compliance | CE, FCC, VCCI, BSMI, RoHS-6 |
| Dimensions | (H x W x D) 1.75 x 19 x 17.5 inches |
