Product Model: MPC5E-100G10G-IRB
Retail Price: US$0
Email Us To Get Special Price Now: [email protected]

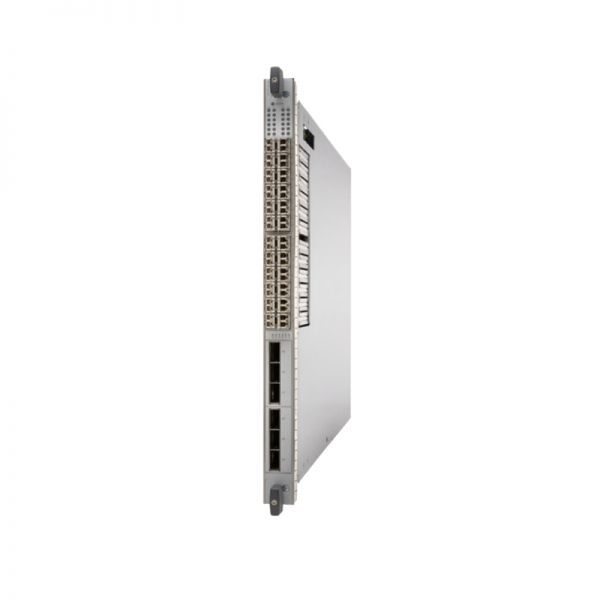

The Juniper MPC5E-100G10G-IRB is a next-generation MPC suitable for high-demand network environments, offering comprehensive L2, L2.5, and L3 functionalities with 32 L3VPN licenses included. Targeted toward service providers and large enterprises, this unit excels in maximizing performance and flexibility. Note: Optics are sold separately.
MPC5E-100G10G-IRBProduct Datasheet
- ● Full L2, L2.5, L3 support
- ● 32 L3VPN licenses included
- ● High-performance networking
- ● Scalable and flexible
- ● Optics sold separately
Product Features Comparison
| Features | MPC5E-100G10G-IRB | MPC4E-3D-EX | MPC7E-10G | MX-MPC2E-3D | MPC8E-10G | MPC2E-NG | MPC3E-3D |
|---|---|---|---|---|---|---|---|
| Max CFP Ports | 2 | 1 | 4 | 2 | 4 | 2 | 2 |
| L3VPN Licenses | 32 | 16 | 48 | 16 | 64 | 16 | 32 |
| Max Throughput | 120 Gbps | 80 Gbps | 240 Gbps | 80 Gbps | 300 Gbps | 100 Gbps | 60 Gbps |
| Layer Support | L2, L2.5, L3 | L2, L3 | L2, L2.5, L3 | L2, L3 | L2, L2.5, L3 | L2, L3 | L2, L3 |
| Optics | Sold Separately | Sold Separately | Included | Sold Separately | Included | Sold Separately | Sold Separately |
MPC5E-100G10G-IRB Product Application Scenarios
- ● High-density data centers
- ● Large-scale enterprise networks
- ● Service provider core networks
Optional Add-ons
| Model | Description |
|---|---|
| QSFP-100GBASE-SR4 | 100 Gbps SR4 Optics Module |
| SFP-10G-SR | 10 Gbps SR Optics Module |
| CFP-100G-LR4 | 100 Gbps LR4 Optics Module |
Get More Information
Discover unbeatable prices and fast shipping for the Juniper MPC5E-100G10G-IRB. Access the detailed MPC5E-100G10G-IRB datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].
Specification
MPC5E-100G10G-IRB Datasheet
MPC5E-100G10G-IRB Specifications | |
| Brand | Juniper |
| Model | MPC5E-100G10G-IRB |
| Licenses Included | Full scale L2, L2.5, L3 & 32 L3VPN |
| Optics | Sold separately |
| Ethernet Ports | 10 x 10GbE and 2 x 100GbE |
| Hardware Type | Modular Port Concentrator |
| Interface Type | 10 Gigabit Ethernet, 100 Gigabit Ethernet |
| Supported Protocols | Layer 2, Layer 2.5, Layer 3 |
| Max Throughput | 400 Gbps |
| Packet Forwarding Rate | Up to 960 Mpps |
| Jitter | < 1 microsecond |
| Redundancy | AC/DC power supply, fan modules |
| Form Factor | Slot-based |
| Power Consumption | Up to 300 Watts |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% to 90% (non-condensing) |
| MTBF | 200,000 hours |
| Compliance | RoHS, CE, FCC |
| Dimensions (HxWxD) | 21.8 x 8.6 x 9.8 inches |
| Warranty | 1-year limited warranty |
