Product Model: MIC3-3D-2X40GE-QSFPP
Retail Price: US$29,291.00
Email Us To Get Special Price Now: [email protected]

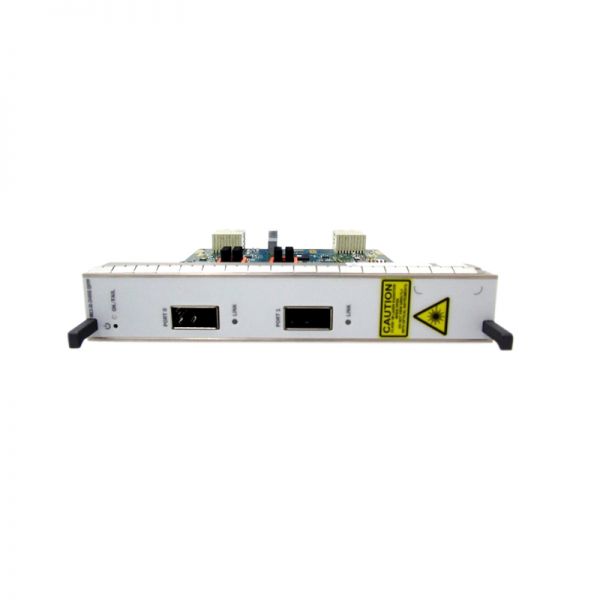

Introducing the Juniper MIC3-3D-2X40GE-QSFPP, a versatile Modular Interface Card with two 40GE QSFP+ interfaces. This product caters to high-speed networking demands, often used by large enterprises and data centers aiming to enhance their network performance. Optics are sold separately, providing flexibility in configuration to meet specific networking requirements.
MIC3-3D-2X40GE-QSFPPProduct Datasheet
- ● 2x40GE QSFP+ interfaces
- ● High-speed connectivity
- ● Modular design
- ● Scalable performance
- ● Optics sold separately
Product Features Comparison
| Feature | MIC3-3D-2X40GE-QSFPP | MIC3-3D-20GE-SFP | MIC3-3D-4X10GE-SFPP | MIC3-100G-20E | MIC3-100G-ADAPT | MIC2-100GE-DWDM | MIC2-1X100GE-CXP |
|---|---|---|---|---|---|---|---|
| Interfaces | 2x40GE QSFP+ | 20x1GE SFP | 4x10GE SFPP | 1x100GE | 1x100GE adaptable | 100GE DWDM | 1x100GE CXP |
| Max. Speed | 80 Gbps | 20 Gbps | 40 Gbps | 100 Gbps | 100 Gbps | 100 Gbps | 100 Gbps |
| Modular | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Optics Included | No | No | No | Yes | No | Yes | No |
| Target Application | Data centers | Enterprise LAN | Enterprise LAN | Data centers | High bandwidth | Long haul | High throughput |
MIC3-3D-2X40GE-QSFPP Product Application Scenarios
- ● Data center aggregation
- ● Enterprise backbone
- ● High-speed server connections
Optional Add-ons
| Model | Description |
|---|---|
| JNP-QSFP-40G-LR4 | 40GE QSFP+ LR4 Optics |
| QFX-QSFP-DAC-3M | 40GE QSFP+ Direct Attach Cable, 3m |
| EX-QSFP-40GE-IR4 | 40GE QSFP+ IR4 Optics |
Get More Information
Discover unbeatable prices and fast shipping for the Juniper MIC3-3D-2X40GE-QSFPP. Access the detailed MIC3-3D-2X40GE-QSFPP datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].
Specification
MIC3-3D-2X40GE-QSFPP Datasheet
MIC3-3D-2X40GE-QSFPP Specifications | |
| Model Number | MIC3-3D-2X40GE-QSFPP |
| Interface Types | 2x40GE QSFP+ |
| Optics | Sold Separately |
| Port Speed | 40 Gbps |
| Compliance | RoHS-6 Compliant |
| Jumbo Frames Support | Yes |
| Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Humidity Range | 10% to 85% (non-condensing) |
| Dimensions (HxWxD) | 1.72 x 8.46 x 9.79 inches (4.4 x 21.5 x 24.9 cm) |
| Power Consumption | 35W |
| Firmware Compatibility | JunOS 11.4 or later |
| MTBF | 1,200,000 hours |
| Forwarding Capacity | 1.44 Tbps |
| Buffer Memory | 12 MB per port |
| Connector Type | QSFP+ |
| Regulatory Approvals | FCC Class A, CE, UL/CUL |
| Layer | Layer 2 and 3 |
| MAC Address Table Size | 128k entries |
| Maximum VLANs | 4,096 |
| Warranty | 5 years |
| Deployment Options | Racked, Shelved |
| QoS Policing/Shaping | Supported |
