Product Model: LS-S5328C-HI
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]
Huawei S5300 Series Switch S5328C-HI Mainframe 24 10/100/1000 Gigabit Ethernet ports , Chassis, Dual Slots of power, Power redundancy, Without Flexible Card and Power Module.
Quick Specs

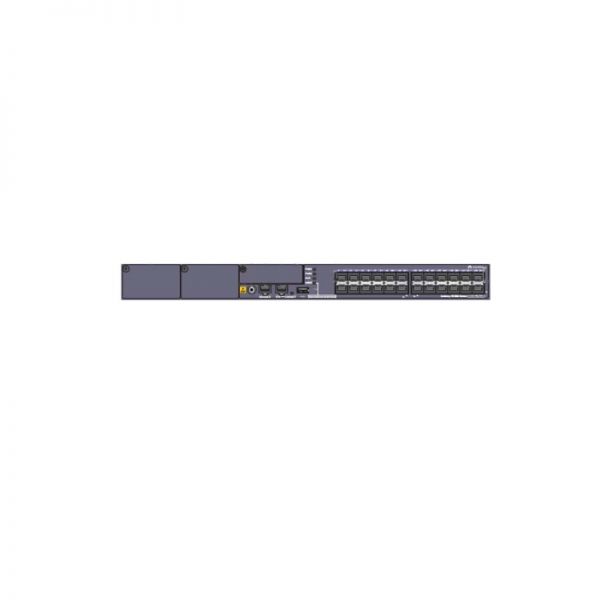

Figure 1 shows the appearance of LS-S5328C-HI.
Table 1 shows the Quick Specs.
|
Product Code |
LS-S5328C-HI |
|
Part Number |
02352763 |
|
Description |
24 10/100/1000Base-T ports |
|
slot |
1 interface slot |
|
power supplies |
Double swappable AC/DC power supplies |
|
Forwarding performance |
96 Mpps |
|
Subcards supported:? |
4x1000Base-X SFP subcard, 2x10GE, SFP+ subcard, and 4x10GE SFP+ subcard |
|
MAC |
32K MAC address entries |
|
Description |
S5328C-HI Mainframe (24 10/100/1000Base-T, Chassis, Dual Slots of power, Without Flexible Card and Power Module) |
|
Net Dimension(D*W*H mm) |
442*220*43 |
|
Typic Power(W) |
45.902 |
Compare to Similar Items
Table 2 shows the comparison of LS-S5328C-EI and LS-S5328C-HI.
|
Product Code |
LS-S5328C-EI |
LS-S5328C-HI |
|
Part Number |
02351610 |
02352763 |
|
Description |
S5328C-EI Mainframe(24 10/100/1000Base-T,Chassis,Dual Slots of power,Without Flexible Card and Power Module) |
S5328C-HI Mainframe (24 10/100/1000Base-T, Chassis, Dual Slots of power, Without Flexible Card and Power Module) |
Before Purchasing
Do you have any question about the LS-S5328C-HI?
Contact us – Email Live Chat or [email protected].
LS-S5328C-HI Datasheet
LS-S5328C-HI Specification |
|
| Fixed port | 24 10/100/1000Base-T ports |
| Forwarding performance |
96 Mpps |
| Extended slot | provides an extended slot for an uplink subcard |
| MAC address table | IEEE 802.1d |
| 128K MAC address entries | |
| MAC address learning and aging | |
| Static, dynamic, and blackhole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| VLAN | 4K VLANs |
| Guest VLAN and voice VLAN | |
| VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports | |
| VLAN mapping | |
| MPLS | MPLS, MPLS VLL,L3VPN |
| VPLS | Martini VPLS |
| IP routing | Static routing, RIPv1, RIPv2, OSPF, IS-IS, BGP, and ECMP |
| IPv6 features | Neighbor Discovery (ND) |
| Path maximum transmission unit (PMTU) | |
| IPv6 Ping, IPv6 Tracert, and IPv6 Telnet,?MLD v1/v2 snooping | |
| ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports or protocol types |
|
| 6to4 tunnel, ISATAP tunnel, and manually configured tunnel | |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave |
| Multicast forwarding in a VLAN and multicast replication between VLANs | |
| Multicast load balancing among member ports of a trunk | |
| Controllable multicast | |
| Port-based multicast traffic statistics | |
| IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM | |
| QoS/ACL | Rate limiting on packets sent and received by an interface |
| Packet redirection,?WRED | |
| Port-based traffic policing and two-rate three-color CAR | |
| Eight queues on each port | |
| WRR, DRR, PQ, WRR+PQ, and DRR+PQ queue scheduling algorithms | |
| Re-marking of the 802.1p priority and DSCP priority | |
| Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID | |
| Rate limiting in each queue and traffic shaping on ports | |
| Security?features | User privilege management and password protection |
| DoS attack defense, ARP attack defense, and ICMP attack defense | |
| Binding of the IP address, MAC address, interface, and VLAN | |
| Port isolation, port security, and sticky MAC | |
| Blackhole MAC address entries | |
| Limit on the number of learned MAC addresses | |
| 802.1x authentication and limit on the number of users on an interface | |
| AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2 |
|
| Hypertext Transfer Protocol Secure (HTTPS) | |
| CPU defense | |
| Blacklist and whitelist | |
| Reliability | RRPP ring topology and RRPP multi-instance |
| Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover | |
| SEP,?ERPS(G.8032 v2),?E-Trunk,?iStack | |
| STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s) | |
| BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM | |
| BPDU protection, root protection, and loop protection | |
| OAM |
Hardware implementation -EFM OAM -CFM OAM -Y.1731 performance test supports hardware-level delay and jitter detection |
| Management?and Maintenance |
MAC Forced Forwarding (MFF) |
| Virtual cable test | |
| Port mirroring and RSPAN (remote port mirroring) | |
| Remote configuration and maintenance by using Telnet | |
| SNMP v1/v2/v3,?RMON,?Web NMS, GVRP, MUX VLAN, 802.3az EEE | |
| System logs and alarms of different levels | |
| Operating environment |
Operating temperature: 0¡ãC¨C50¡ãC(long term); -5¡ãC¨C55¡ãC(short term) Relative humidity: 10%¨C90% (non-condensing) |
| Input voltage |
AC: Rated voltage range: 100 V to 240 V AC, 50/60 Hz Maximum voltage range: 90 V to 264 V AC, 50/60 Hz DC: Rated voltage range: ¨C48 V to ¨C60 V, DC Maximum voltage range: ¨C36 V to ¨C72 V, DC |
| Dimensions (mm) | 442 mm x 220 mm x 43.6 mm |
| Typical power?consumption | < 76 W? |
