Product Model: JL678A
Retail Price: US$698.00
Email Us To Get Special Price Today: [email protected]
The Aruba CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks.
Quick Specs

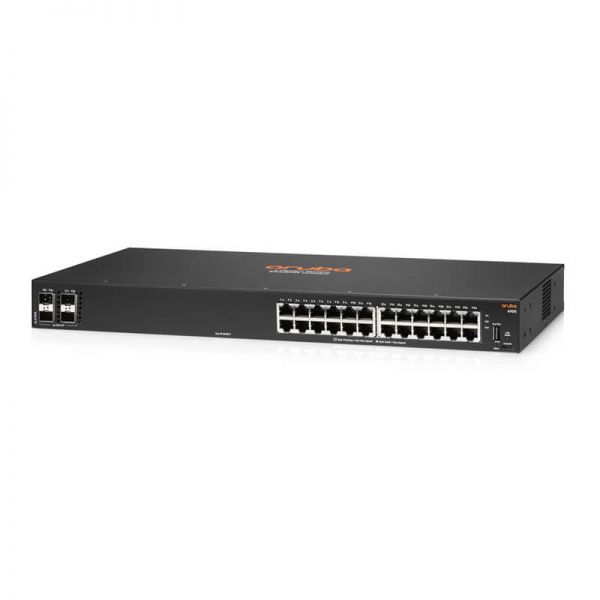

Figure 1 shows the appearance of JL678A.
Table 1 shows the Quick Specs.
|
Product Code |
JL678A |
|
Product type |
Managed Switch |
|
Ports |
24 x 10/100/1000BASE-T |
|
Power supply |
Internal |
Product Details
Figure 2 shows the front panel of JL678A.
Figure 3 shows the back panel of JL678A.
Features
- ¡ñ Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routing
- ¡ñ Convenient built-in 1/10GbE uplinks and up to 370W of Class 4 PoE for support of IoT devices
- ¡ñ Compact and fanless 12 port model for quiet deployment
- ¡ñ Manage via single pane of glass with Aruba Central across wired, wireless, and WAN
- ¡ñ Automated configuration and verification with Aruba NetEdit
- ¡ñ Software defined ready with REST APIs
- ¡ñ Simplify adds, moves and changes with colorless ports
Compare to Similar Items
Table 2 shows the comparison of JL678A.
|
Module |
JL678A |
JL677A |
|
Product type |
Managed Switch |
Switch |
|
Ports |
24 x 10/100/1000BASE-T |
24 x 10/100/1000BASE-T |
|
Power supply |
Internal |
Internal |
Get More Information
Do you have any question about the JL678A?
Contact us – Email Live Chat or [email protected].
JL678A Datasheet
JL678A specification |
|
|
Product name |
HPE Aruba 6100 24G Switch |
|
Product type |
Managed Switch |
|
Connectivity |
|
|
Ports |
24x ports 10/100/1000BASE-T ports |
|
Memory and processor |
Dual Core ARM Cortex A9 @ 1016 Mhz |
|
Latency |
1 Gbps: 1.5 ¦ÌSec , 10 Gbps: 1.8 ¦ÌSec |
|
Throughput |
95.2 Mpps |
|
Switching capacity |
128 Gbps |
|
Performance |
|
|
Stackable |
No |
|
PoE capability |
370W, maximum, depending on model |
|
Input voltage |
100-127 VAC / 200-240 VAC |
|
Power consumption |
Max Power (w/o PoE): 33W |
|
General |
|
|
Managed |
Yes |
|
Ventilation |
Fan |
|
Width |
17.4 in |
|
Depth |
7.9 in |
|
Height |
1.7 in |
|
Weight |
2.6 kg |
|
Physical properties |
|
|
Form factor |
Rack-mount |
|
Features |
|
|
Power supply |
Internal |
