Product Model: JH149A
Retail Price: US$6,105.00
Email Us To Get Special Price Today: [email protected]
The HPE FlexNetwork 5510 HI Switch Series delivers outstanding resiliency, security, and multiservice support for medium and large enterprise networks. JH149A supports 24 x SFP+ Gigabit ports, 4x 10GbE SFP+ ports, and one expansion slot.
Quick Spec

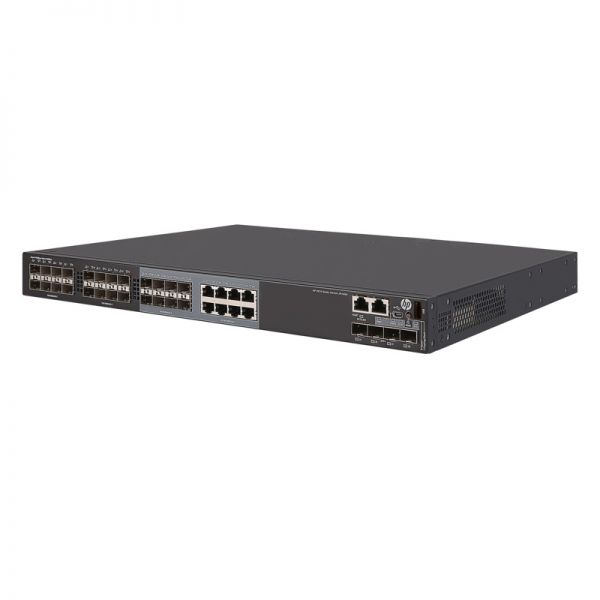

Figure 1 shows the appearance of HPE JH149A.
Table 1 shows the quick spec.
|
Product Code |
JH149A |
|
Type |
HPE FlexNetwork 5510 24G SFP 4SFP+ HI 1-slot Switch |
|
I/O ports and slots |
¡¤ 16 fixed Gigabit Ethernet SFP ports; Ports 1 – 8 support MACSec 8 Combo GbE (SFP and RJ45) dual-personality 1000 Mbps port, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only ¡¤ 4 SFP+ 10GbE ports ¡¤ 1 port expansion module slot ¡¤ Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports or 2 40GbE ports, with optional module |
|
Additional ports and slots |
¡¤ 1 dual-personality (RJ-45 or USB micro-B) serial console port ¡¤ 1 RJ-45 out-of-band management port ¡¤ 1 USB 2.0 |
|
1000 Mb Latency |
|
|
10 Gbps Latency |
|
|
Throughput |
up to 214 Mp/s |
|
Routing/Switching capacity |
288 Gb/s |
|
Routing table size |
IPv4 : 32768 entries IPv6 : 16384 entries |
|
MAC address table size |
32768 entries |
|
Dimensions (W x D x H) |
44.00 x 36.00 x 4.37 cm (17.32 x 14.17 x 1.72 in) |
|
Weight |
7.5 kg (16.53 lb) |
Product Details
Figure 2 shows the front panel of HPE JH149A.
Note:
|
¢Ù |
24 ¡Á SFP ports |
|
¢Ú |
4 ¡Á 10/100/1000Base-T autosensing Ethernet port |
|
¢Û |
4 ¡Á SFP+ Ports |
|
¢Ü |
USB port |
|
¢Ý |
Mini USB console port |
|
¢Þ |
Console port (CONSOLE) |
|
¢ß |
Management Ethernet port |
Figure 3 shows the back panel of HPE JH149A.
Note:
|
¢Ù |
Grounding screw |
|
¢Ú |
Interface card (optional) |
|
¢Û |
Fan tray 1 |
|
¢Ü |
Fan tray 2 |
|
¢Ý |
Power supply 1 |
|
¢Þ |
Power supply 2 (optional) |
Compare to Similar Items
Table 2 shows the comparison.
|
Product Code |
JH145A |
JH146A |
JH147A |
JH148A |
JH149A |
|
Type |
HPE FlexNetwork 5510 24G 4SFP+ HI 1-slot Switch |
HPE FlexNetwork 5510 48G 4SFP+ HI 1-slot Switch |
HPE FlexNetwork 5510 24G PoE+ 4SFP+ HI 1-slot Switch |
HPE FlexNetwork 5510 48G PoE+ 4SFP+ HI 1-slot Switch |
HPE FlexNetwork 5510 24G SFP 4SFP+ HI 1-slot Switch |
|
1000 Mb Latency |
|||||
|
10 Gbps Latency |
|||||
|
Throughput |
up to 214 Mp/s |
up to 250 Mp/s |
up to 214 Mp/s |
up to 250 Mp/s |
up to 214 Mp/s |
|
Routing/Switching capacity |
288 Gb/s |
336 Gb/s |
288 Gb/s |
336 Gb/s |
288 Gb/s |
|
Routing table size |
IPv4 : 32768 entries IPv6 : 16384 entries |
IPv4 : 32768 entries IPv6 : 16384 entries |
IPv4 : 32768 entries IPv6 : 16384 entries |
IPv4 : 32768 entries IPv6 : 16384 entries |
IPv4 : 32768 entries IPv6 : 16384 entries |
Before Purchasing
Do you have any?question about?the?JH149A
Contact us – Email Live Chat or [email protected].
JH149A Datasheet
JH149A Specifications |
|
|
System specifications |
|
|
Type |
HPE FlexNetwork 5510 24G SFP 4SFP+ HI 1-slot Switch |
|
I/O ports and slots |
· 16 fixed Gigabit Ethernet SFP ports; Ports 1 – 8 support MACSec 8 Combo GbE (SFP and RJ45) dual-personality 1000 Mbps port, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 4 SFP+ 10GbE ports · 1 port expansion module slot · Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports or 2 40GbE ports, with optional module |
|
Additional ports and slots |
· 1 dual-personality (RJ-45 or USB micro-B) serial console port · 1 RJ-45 out-of-band management port · 1 USB 2.0 |
|
Performance |
|
|
1000 Mb Latency |
< 5 μs |
|
10 Gbps Latency |
< 3 μs |
|
Throughput |
up to 214 Mp/s |
|
Routing/Switching capacity |
288 Gb/s |
|
Routing table size |
IPv4 : 32768 entries IPv6 : 16384 entries |
|
MAC address table size |
32768 entries |
|
Physical specifications |
|
|
Dimensions (W x D x H) |
44.00 x 36.00 x 4.37 cm (17.32 x 14.17 x 1.72 in) |
|
Weight |
7.5 kg (16.53 lb) |
|
Electrical specifications |
|
|
Frequency |
50/60 Hz |
|
Maximum heat dissipation |
409 BTU/hr (431.49 kJ/hr), Heat dissipation ranges from 163 BTU/hr to 498 BTU/hr, depending on power supply configuration |
|
Voltage |
100 – 240 V ac, rated (90 – 264 Vac, max) -48 to -60 V dc, rated (-36 to -72 V dc, max) (depending on power supply chosen) |
|
Maximum power rating |
120 W |
|
Idle power |
48 W |
|
PoE power |
NA |
|
Environmental specifications |
|
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Operating relative humidity |
10% to 90%, noncondensing |
|
Nonoperating/Storage temperature |
-40°C to 70°C (-40°F to 158°F) |
|
Nonoperating/Storage relative humidity |
5% to 95%, noncondensing |
|
Acoustic |
Low-speed fan: 50.5 dB, High-speed fan: 66.9 dB ISO 7779 |
|
Safety and emissions |
|
|
Safety |
UL 60950-1 EN 60825-1 Safety of Laser Products-Part 1 EN 60825-2 Safety of Laser Products-Part 2 IEC 60950-1 EN 60950-1 CAN/CSA-C22.2 No. 60950-1 FDA 21 CFR Subchapter J ROHS Compliance AS/NZS 60950-1 GB 4943 EAC (EurAsian Conformity Certification) |
|
Emissions |
EMC Directive 2004/108/EC FCC (CFR 47, Part 15) Class A EN 61000-4-11:2004 ANSI C63.4-2009 EN 61000-3-3:2008 VCCI V-3/2012.04 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-4-3:2006 EN 61000-4-4:2012; EN 61000-4-5:2006 EN 61000-4-6:2009 CISPR 22:2008 Class A EN 55022:2010 Class A EN 61000-4-29: 2000 CISPR 24:2010 EN 300 386 V1.6.1 VCCI V-3/2013.04 Class A |
|
Immunity |
Generic: EN 55024 ESD: EN300 386 |
|
Management |
IMC – Intelligent Management Center Command-line interface Web browser SNMP manager |
