Product Model: JG941A
Retail Price: US$3,579.00
Email Us To Get Special Price Today: [email protected]
HPE FlexNetwork 5130 EI Series switches are fully managed enterprise class Gigabit switches supporting Layer 3 static routing and RIP routing, IRF stacking up to nine units high, with four built in 10 Gigabit links. This JG941A has 48x 10/100/1000 PoE+ enabled ports, 2x 1GbE / 10GbE SFP+ ports, and 2x RJ 45 1GbE / 10GBASE T ports. Transceivers must be purchased separately.?
Quick Spec

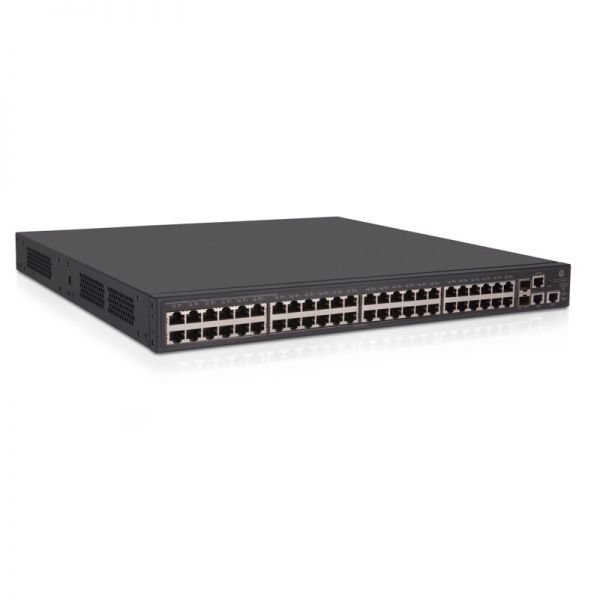

Figure 1 shows the appearance of HPE JG941A.
Table 1 shows the quick spec.
|
Product Code |
JG941A |
|
Type |
HPE FlexNetwork 5130 48G POE+ 2SFP+ 2XGT (370W) EI Switch |
|
I/O ports and slots |
|
|
Additional ports and slots |
1 x RJ-45 serial console port |
|
Memory and processor |
|
|
Dimensions |
17.32 x 16.54 x 1.72 in (43.99 x 42.01 x 4.37 cm) |
|
Weight |
15.43 lb (7 Kg) |
Product Details
Figure 2 shows the front panel of HPE JG941A.
Note:
|
¢Ù |
48 ¡Á 10/100/1000Base-T autosensing Ethernet port |
|
¢Ú |
2 ¡Á SFP+ port |
|
¢Û |
2 ¡Á 1/10GBase-T autosensing Ethernet port |
|
¢Ü |
Port mode LED, System status LED (SYS) and RPS status LED (RPS) |
|
¢Ý |
Port LED mode switching button |
|
¢Þ |
Console port |
Figure 3 shows the back panel of HPE JG941A.
Note:
|
¢Ù |
AC-input power receptacle |
|
¢Ú |
RPS receptacle |
|
¢Û |
Grounding screw |
Compare to Similar Items
Table 2 shows the comparison.
|
Product Code |
JG938A |
JG939A |
JG940A |
JG941A |
|
Type |
HPE FlexNetwork ?5130-24G-2SFP+-2XGT EI Switch |
HPE FlexNetwork ?5130-48G-2SFP+-2XT EI Switch |
HPE FlexNetwork 5130 24G POE+ 2SFP+ 2XGT (370W) EI Switch |
HPE FlexNetwork 5130 48G POE+ 2SFP+ 2XGT (370W) EI Switch |
|
I/O ports and slots |
¡¤ 24 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only ¡¤ 2 x SFP+ fixed 1000/10000 SFP+ ports ¡¤ 2 x RJ-45 1/10GBASE-T ports |
¡¤ 48 x 10/100/1000 ports, ¡¤ 2 x 1GbE / 10GbE SFP+ ports, ¡¤ 2 x RJ 45 1GbE / 10GBASE T ports. |
¡¤ 24 x RJ-45 autosensing 10/100/1000 ports ¡¤ 2 x SFP+ fixed 1000/10000 SFP+ ports ¡¤ 2 x RJ-45 1/10GBASE-T ports |
¡¤ 48 x RJ-45 autosensing 10/100/1000 ports ¡¤ 2 x SFP+ fixed 1000/10000 SFP+ ports ¡¤ 2 x RJ-45 1/10GBASE-T ports |
|
Additional ports and slots |
1 x RJ-45 serial console port |
1 x RJ-45 serial console port |
1 x RJ-45 serial console port |
1 x RJ-45 serial console port |
Before Purchasing
Do you have any?question about?the?JG941A
Contact us – Email Live Chat or [email protected].
JG941A Datasheet
JG941A Specification |
|
|
Type |
HPE FlexNetwork 5130 48G POE+ 2SFP+ 2XGT (370W) EI Switch |
|
Differentiator |
· Gigabit Ethernet switch with 48 10/100/1000BASE-T, 2 SFP+ and 2 10GBASE-T ports · Intelligent Resilient Framework (IRF) technology, static and RIP Layer 3 routing, and PoE/PoE+, supported |
|
Ports |
· 48 x RJ-45 autosensing 10/100/1000 ports · 2 x SFP+ fixed 1000/10000 SFP+ ports · 2 x RJ-45 1/10GBASE-T ports |
|
Memory and processor |
· 1 GB SDRAM · Packet buffer size: 3 MB · 512 MB flash |
|
Latency |
1000 Mb Latency: < 5 µs 10 Gbps Latency: < 1.5 µs |
|
Throughput |
up to 130.9 Mpps |
|
Routing/switching capacity |
176 Gbps |
|
PoE capability |
370 W PoE+ |
|
Stacking capabilities |
IRF 9 switches |
|
Management features |
IMC – Intelligent Management Center Command-line interface Web browser SNMP manager |
|
Input voltage |
100 – 240 VAC, rated -54 to -57 VDC, rated (depending on power supply chosen) |
|
Operating temperature range |
-5 to 45°C |
|
Operating humidity range |
10 to 90% (noncondensing) |
|
Power consumption |
70 W (maximum) |
|
Heat dissipation |
147 / 1603 BTU/hr (155.08 / 1691.17 kJ/hr) |
|
Minimum dimensions (W x D x H) |
17.32 x 16.54 x 1.72 in (43.99 x 42.01 x 4.37 cm) |
|
Weight |
15.43 lb (7 Kg) |
