Product Model: JG938A
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]
HPE FlexNetwork 5130 EI Series switches are fully managed enterprise class Gigabit switches supporting Layer 3 static routing and RIP routing, IRF stacking up to nine units high, with four built in 10 Gigabit links. This JG938A has 24 x 10/100/1000 ports, 2 x 1GbE / 10GbE SFP+ ports, and 2x RJ 45 1GbE / 10GBASE T ports. Transceivers must be purchased separately.
Quick Spec

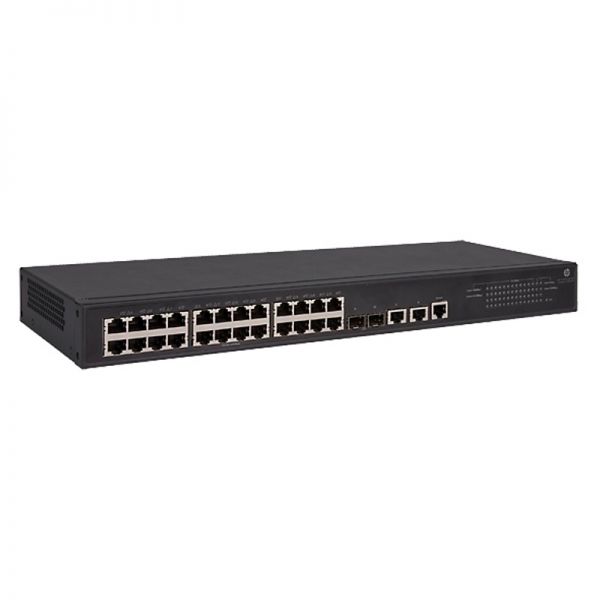

Figure 1 shows the appearance of HPE JG938A.
Table 1 shows the quick spec.
|
Product Code |
JG938A |
|
Type |
HP 5130-24G-2SFP+-2XGT EI Switch |
|
I/O ports and slots |
24 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
|
Additional ports and slots |
1 x RJ-45 serial console port |
|
Memory and processor |
1 GB SDRAM 512 MB flash packet buffer size: 1.5 MB |
|
Dimensions |
4.37 x 44 x 16 cm (1.72 x 17.32 x 6.3 in) (1U height) |
|
Weight |
3 kg (6.61 lb) |
Product Details
Figure 2 shows the front panel of HPE JG938A.
Note:
|
¢Ù |
24 ¡Á 10/100/1000Base-T autosensing Ethernet port |
|
¢Ú |
2 ¡Á SFP+ port |
|
¢Û |
2 ¡Á 1/10GBase-T autosensing Ethernet port |
|
¢Ü |
Console port |
|
¢Ý |
LEDs Area (10/100/1000Base-T autosensing Ethernet port LED, SFP+ port LED, System status LED (SYS), 1/10GBase-T autosensing Ethernet port LED) |
Figure 3 shows the back panel of HPE JG938A.
Note:
|
¢Ù |
AC-input power receptacle |
|
¢Ú |
Grounding screw |
Compare to Similar Items
Table 2 shows the comparison.
|
Product Code |
JG936A |
JG937A |
JG938A |
JG939A |
|
Type |
HPE FlexNetwork 5130-24G-PoE+-4SFP+ (370W) EI Switch |
HPE FlexNetwork 5130-48G-PoE+-4SFP+ (370W) EI Switch |
HPE FlexNetwork ?5130-24G-2SFP+-2XGT EI Switch |
HPE FlexNetwork ?5130-48G-2SFP+-2XT EI Switch |
|
I/O ports and slots |
¡¤ 24 x RJ-45 autosensing 10/100/1000 ports? ¡¤ 4 x SFP+ fixed 1000/10000 SFP+ ports |
¡¤ 48 x RJ-45 autosensing 10/100/1000 ports? ¡¤ 4 x SFP+ fixed 1000/10000 SFP+ ports |
¡¤ 24 x RJ-45 autosensing 10/100/1000 ports? ¡¤ 2 x SFP+ fixed 1000/10000 SFP+ ports ¡¤ 2 x RJ-45 1/10GBASE-T ports |
¡¤ 48 x 10/100/1000 ports, ¡¤ 2 x 1GbE / 10GbE SFP+ ports ¡¤ 2 x RJ 45 1GbE / 10GBASE T ports |
|
Additional ports and slots |
1 x RJ-45 serial console port |
1 x RJ-45 serial console port |
1 x RJ-45 serial console port |
1 x RJ-45 serial console port |
Before Purchasing
Do you have any?question about?the?JG938A
Contact us – Email Live Chat or [email protected].
JG938A Datasheet
JG938A Specifications |
|
|
Type |
HP 5130-24G-2SFP+-2XGT EI Switch |
|
System specifications |
|
|
I/O ports and slots |
· 24 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 2 x SFP+ fixed 1000/10000 SFP+ ports · 2 x RJ-45 1/10GBASE-T ports |
|
Additional ports and slots |
1 x RJ-45 serial console port |
|
Power supplies |
N/A |
|
Memory and processor |
· 1 GB SDRAM · 512 MB flash · packet buffer size: 1.5 MB |
|
Mounting and enclosure |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) |
|
Management |
IMC – Intelligent Management Center; command-line interface; Web browser; SNMP Manager |
|
Physical specifications |
|
|
Dimensions (H x W x D) |
4.37 x 44 x 16 cm (1.72 x 17.32 x 6.3 in) (1U height) |
|
Weight |
3 kg (6.61 lb) |
|
Environmental specifications |
|
|
Acoustic |
Low-speed fan: 19 dB High-speed fan: 44.5 dB ISO 7779 |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Operating relative humidity |
10% to 90%, noncondensing |
|
Nonoperating/Storage temperature |
-40°C to 70°C (-40°F to 158°F) |
|
Nonoperating/Storage relative humidity |
5% to 95%, noncondensing |
|
Electrical specifications |
|
|
Frequency |
50/60 Hz |
|
Maximum heat dissipation |
68/116 BTU/hr (71.74/122.38 kJ/hr) for AC power |
|
AC voltage |
100 – 240 V ac |
|
Safety certifications |
|
|
Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance |
|
Emissions |
EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-4/2012.04; EN 6100-3-2:2006+A1:2009 + A2:2009; EN 61000-3-2:2006+A1:2009+A2:2009 ; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; AS/NZS CISPR 22:2009 Class A; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A |
|
Immunity |
· Generic: EN 55024 · ESD: EN300 386 |
