Product Model: JG241A
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]
HPE FlexNetwork 5500 EI Series switches are fully managed, stackable, advanced Layer 2/3/4 enterprise class Gigabit switches. This JG241A has 24 x 10/100/1000 PoE enabled ports including four dual personality ports for fiber connectivity. IEEE 802.3af and 802.3at compliant Power over Ethernet with 370 Watts PoE budget with AC power.?
Quick Spec
Figure 1 shows the appearance of HPE JG241A.
Table 1 shows the quick spec.
|
Product Code |
JG241A |
|
Type |
HP A5500-24G-PoE+ EI Switch with 2 Interface Slots |
|
Ports |
24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 dual-personality ports; auto-sensing 10/100/1000Base-T or SFP 2 port expansion module slots 1 RJ-45 serial console port Supports a maximum of 24 autosensing 10/100/1000 ports |
|
Memory and processor |
256 MB SDRAM, 32 MB flash; packet buffer size: 2 MB |
|
Mounting |
Mounts in an EIA standard 19-in. telco rack or equipment cabinet (hardware included) |
|
Performance |
1000 Mb Latency: 10 Gbps Latency: Throughput: 107.2 million pps Routing/Switching capacity: 144 Gbps Routing table size: 12000 entries |
|
Dimensions |
16.54(d) x 17.32(w) x 1.72(h) in. (42 x 44 x 4.36 cm) (1U height) |
|
Weight |
13.23 lb. (6 kg) |
Product Details

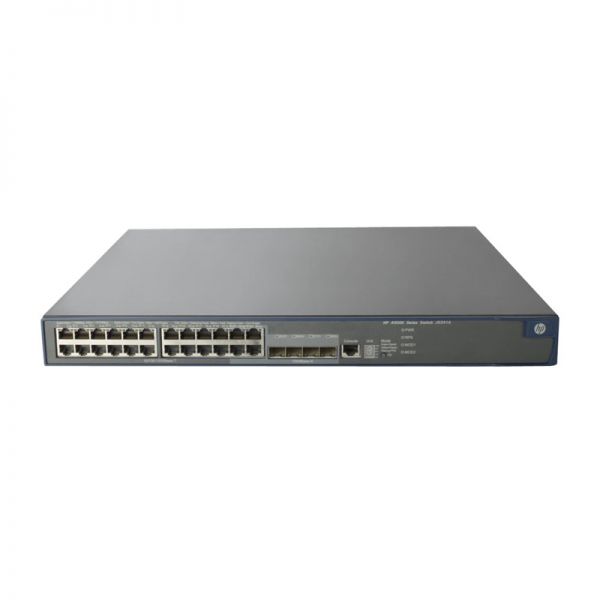

Figure 2 shows the front panel of HPE JG241A.
Note:
|
¢Ù |
24 x 10/100/1000Base-T auto-sensing Ethernet port |
|
¢Ú |
4 x 1000Base-X SFP port |
|
¢Û |
Console portPort LED mode switching button |
|
¢Ü |
Seven-segment LED (Unit) |
|
¢Ý |
Port LED mode switching button |
Figure 3 shows the back view of HPE JG241A.
Note:
There are a RPS receptacle, AC power input and 2 interface card slots on the back panel.
Compare to Similar Items
Table 2 shows the comparison.
|
Product Code |
JG240A |
JG241A |
|
Type |
HP A5500-48G-PoE+ EI Switch with 2 Interface Slots |
HP A5500-24G-PoE+ EI Switch with 2 Interface Slots |
|
Memory and processor |
256 MB SDRAM, 32 MB flash; packet buffer size: 4 MB |
256 MB SDRAM, 32 MB flash; packet buffer size: 2 MB |
|
Mounting |
Mounts in an EIA standard 19-in. telco rack or equipment cabinet (hardware included) |
Mounts in an EIA standard 19-in. telco rack or equipment cabinet (hardware included) |
|
Performance |
1000 Mb Latency: 10 Gbps Latency: Throughput: 142.9 million pps Routing/Switching capacity: 192 Gbps Routing table size: 12000 entries |
1000 Mb Latency: 10 Gbps Latency: Throughput: 107.2 million pps Routing/Switching capacity: 144 Gbps Routing table size: 12000 entries |
Before Purchasing
Do you have any?question about?the?JG241A
Contact us – Email Live Chat or [email protected].
JG241A Datasheet
JG241A Specification |
|
|
Type |
HP A5500-24G-PoE+ EI Switch with 2 Interface Slots |
|
Ports |
24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 dual-personality ports; auto-sensing 10/100/1000Base-T or SFP 2 port expansion module slots 1 RJ-45 serial console port Supports a maximum of 24 autosensing 10/100/1000 ports |
|
Dimensions |
16.54(d) x 17.32(w) x 1.72(h) in. (42 x 44 x 4.36 cm) (1U height) |
|
Weight |
13.23 lb. (6 kg) |
|
Memory and processor |
256 MB SDRAM, 32 MB flash; packet buffer size: 2 MB |
|
Mounting |
Mounts in an EIA standard 19-in. telco rack or equipment cabinet (hardware included) |
|
Performance |
1000 Mb Latency: < 3.2 µs 10 Gbps Latency: < 2.6 µs Throughput: 107.2 million pps Routing/Switching capacity: 144 Gbps Routing table size: 12000 entries |
|
Operating temperature |
32ºF to 113ºF (0ºC to 45ºC) |
|
Operating relative humidity |
10% to 90%, noncondensing |
|
Nonoperating/Storage temperature |
-58ºF to 158ºF (-40ºC to 70ºC) |
|
Nonoperating/Storage relative humidity |
5% to 95%, noncondensing |
|
Maximum heat dissipation |
700 BTU/hr (738.5 kJ/hr) |
|
Voltage |
100-240 WAC |
|
Maximum power rating |
575 W |
|
PoE power |
370 W |
|
Frequency |
50/60 Hz |
|
Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance |
|
Emissions |
FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A |
|
Management |
IMC – Intelligent Management Center; command-line interface; Web browser; SNMP Manager; IEEE 802.3 Ethernet MIB |
