HPE FlexNetwork 5500 EI Series switches are fully managed, stackable, advanced Layer 2/3/4 enterprise class Gigabit switches. This JG240A has 48 x 10/100/1000 PoE enabled ports including four dual personality ports for fiber connectivity.
Quick Spec
Figure 1 shows the appearance of HPE JG240A.
Table 1 shows the quick spec.
|
Product Code |
JG240A |
|
Type |
HP A5500-48G-PoE+ EI Switch with 2 Interface Slots |
|
Ports |
48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 dual-personality ports; auto-sensing 10/100/1000Base-T or SFP 2 port expansion module slots 1 RJ-45 serial console port Supports a maximum of 48 autosensing 10/100/1000 ports |
|
Memory and processor |
256 MB SDRAM, 32 MB flash; packet buffer size: 4 MB |
|
Mounting |
Mounts in an EIA standard 19-in. telco rack or equipment cabinet (hardware included) |
|
Performance |
1000 Mb Latency: 10 Gbps Latency: Throughput: 142.9 million pps Routing/Switching capacity: 192 Gbps Routing table size: 12000 entries |
|
Dimensions |
16.54(d) x 17.32(w) x 1.72(h) in. (42 x 44 x 4.36 cm) (1U height) |
|
Weight |
14.33 lb. (6.5 kg) |
Product Details

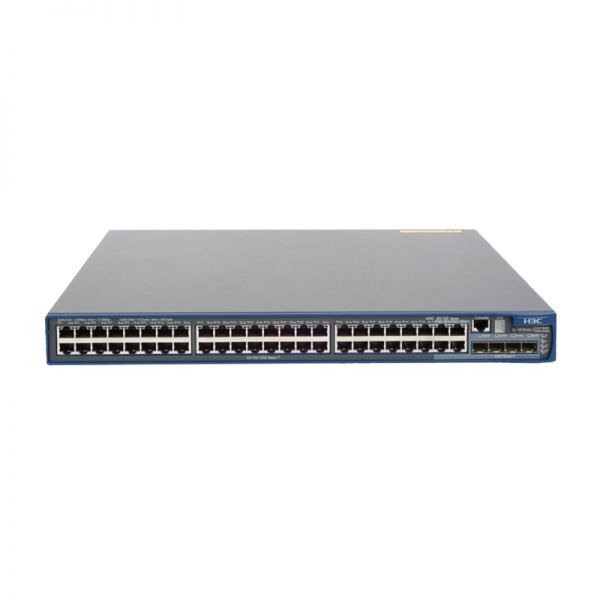

Figure 2 shows the front panel of HPE JG240A.
Note:
|
¢Ù |
48 x 10/100/1000Base-T auto-sensing Ethernet port |
|
¢Ú |
4 x 1000Base-X SFP port |
|
¢Û |
Port LED mode switching button |
|
¢Ü |
Seven-segment LED (Unit) |
|
¢Ý |
Console port |
Figure 3 shows the back view of HPE JG240A.
Note:
There are a RPS receptacle, AC power input and 2 interface card slots on the back panel.
Compare to Similar Items
Table 2 shows the comparison.
|
Product Code |
JG240A |
JG241A |
|
Type |
HP A5500-48G-PoE+ EI Switch with 2 Interface Slots |
HP A5500-24G-PoE+ EI Switch with 2 Interface Slots |
|
Memory and processor |
256 MB SDRAM, 32 MB flash; packet buffer size: 4 MB |
256 MB SDRAM, 32 MB flash; packet buffer size: 2 MB |
|
Mounting |
Mounts in an EIA standard 19-in. telco rack or equipment cabinet (hardware included) |
Mounts in an EIA standard 19-in. telco rack or equipment cabinet (hardware included) |
|
Performance |
1000 Mb Latency: 10 Gbps Latency: Throughput: 142.9 million pps Routing/Switching capacity: 192 Gbps Routing table size: 12000 entries |
1000 Mb Latency: 10 Gbps Latency: Throughput: 107.2 million pps Routing/Switching capacity: 144 Gbps Routing table size: 12000 entries |
Before Purchasing
Do you have any?question about?the?JG240A
Contact us – Email Live Chat or [email protected].
JG240A Datasheet
JG240A Specification |
|
|
Type |
HP A5500-48G-PoE+ EI Switch with 2 Interface Slots |
|
Ports |
48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 dual-personality ports; auto-sensing 10/100/1000Base-T or SFP 2 port expansion module slots 1 RJ-45 serial console port Supports a maximum of 48 autosensing 10/100/1000 ports |
|
Dimensions |
16.54(d) x 17.32(w) x 1.72(h) in. (42 x 44 x 4.36 cm) (1U height) |
|
Weight |
14.33 lb. (6.5 kg) |
|
Memory and processor |
256 MB SDRAM, 32 MB flash; packet buffer size: 4 MB |
|
Mounting |
Mounts in an EIA standard 19-in. telco rack or equipment cabinet (hardware included) |
|
Performance |
1000 Mb Latency: < 3.2 µs 10 Gbps Latency: < 2.6 µs Throughput: 142.9 million pps Routing/Switching capacity: 192 Gbps Routing table size: 12000 entries |
|
Operating temperature |
32ºF to 113ºF (0ºC to 45ºC) |
|
Operating relative humidity |
10% to 90%, noncondensing |
|
Nonoperating/Storage temperature |
-40ºF to 158ºF (-40ºC to 70ºC) |
|
Nonoperating/Storage relative humidity |
5% to 95%, noncondensing |
|
Maximum heat dissipation |
921 BTU/hr (971.66 kJ/hr) |
|
Voltage |
100-240 WAC |
|
Maximum power rating |
910 W |
|
PoE power |
740W |
|
Frequency |
50/60 Hz |
|
Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance |
|
Emissions |
FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A |
|
Management |
IMC – Intelligent Management Center; command-line interface; Web browser; SNMP Manager; IEEE 802.3 Ethernet MIB |
