Product Model: JG091B
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]
HPE FlexNetwork 5120 SI Series switches support stacking, static Layer 3 routing, ACLs and IPv6. This JG091B has 24 x 10/100/1000 PoE+ ports and 4 x GbE SFP ports. Power over Ethernet support is for IEEE 802.3at with a PoE+ power budget of 370 Watts. They are campus switches ideal for medium and large enterprise networks.
Quick Spec

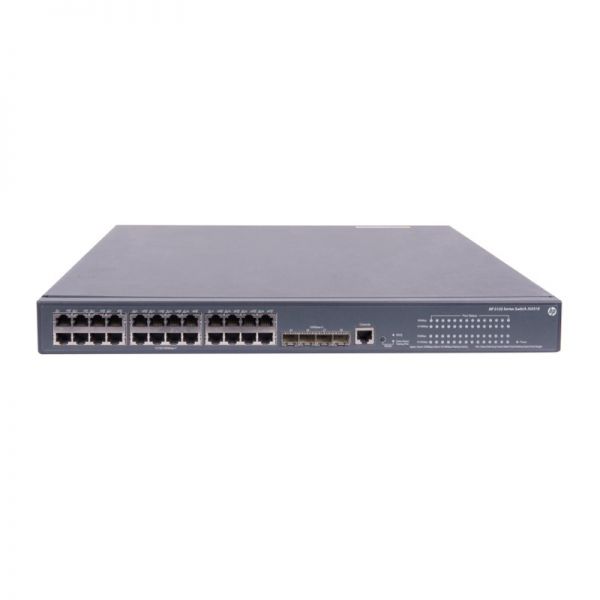

Figure 1 shows the appearance of HPE JG091B.
Table 1 shows the quick spec.
|
Product Code |
JG091B |
|
Type |
HPE 5120 24G PoE+ (370W) SI Switch |
|
I/O ports and slots |
24 x RJ-45 autosensing 10/100/1000 PoE+ ports Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 x fixed Gigabit Ethernet SFP ports |
|
PoE power |
720 W PoE+, optional |
|
Additional ports and slots |
1 RJ-45 serial console port |
|
Memory and processor |
128 MB flash 128 MB SDRAM Packet buffer size: 0.5 MB |
|
Performance |
1000 Mb Latency Throughput up to 41.7 Mpps Routing/Switching capacity 56 Gbps Routing table size 32 entries (IPv4) MAC address table size 8192 entries |
|
Dimensions (H x W x D) |
4.36 x 44.0 x 36 cm ( 1.72 x 17.32 x 14.17 in ) ( 1U height ) |
|
Weight |
7 kg (15.43 lb) |
Product Details
Figure 2 shows the front panel of HPE JG091B.
Note:
|
¢Ù |
24 ¡Á 10/100/1000Base-T auto-sensing Ethernet port |
|
¢Ú |
4 ¡Á 1000Base-X SFP port |
|
¢Û |
Console Port |
|
¢Ü |
Port LED mode switching button |
|
¢Ý |
RPS status LED (RPS) and Port mode LED |
|
¢Þ |
Port LED and Power LED (Power) |
Figure 3 shows the back panel of HPE JG091B.
Note:
|
¢Ù |
DC receptacle |
|
¢Ú |
AC-input power receptacle |
|
¢Û |
Grounding screw |
Compare to Similar Items
Table 2 shows the comparison.
|
Product Code |
JG091B |
JG309B |
JG310B |
|
Type |
HPE 5120 24G PoE+ (370W) SI Switch |
HPE 5120 8G PoE+ (180W) SI Switch |
HPE 5120 8G PoE+ (65W) SI Switch |
|
I/O ports and slots |
24 x RJ-45 autosensing 10/100/1000 PoE+ ports Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 x fixed Gigabit Ethernet SFP ports |
8 x RJ-45 autosensing 10/100/1000 PoE+ ports Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 1 x SFP fixed Gigabit Ethernet SFP port |
8 x RJ-45 autosensing 10/100/1000 PoE+ ports Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 1 x SFP fixed Gigabit Ethernet SFP port |
|
PoE power |
720 W PoE+, optional |
180 W PoE+ |
65 W PoE+ |
|
Performance |
1000 Mb Latency Throughput up to 41.7 Mpps Routing/Switching capacity 56 Gbps Routing table size 32 entries (IPv4) MAC address table size 8192 entries |
1000 Mb Latency – Throughput up to 13.4 Mpps Routing/Switching capacity 18 Gbps Routing table size 32 entries (IPv4) MAC address table size 8192 entries |
1000 Mb Latency Throughput up to 77.4 Mpps Routing/Switching capacity 104 Gbps Routing table size 32 entries (IPv4) MAC address table size 8192 entries |
Before Purchasing
Do you have any?question about?the?JG091B
Contact us – Email Live Chat or [email protected].
JG091B Datasheet
JG091B Specification |
|
|
Type |
HPE 5120 24G PoE+ (370W) SI Switch |
|
System specifications |
|
|
I/O ports and slots |
24 RJ-45 autosensing 10/100/1000 PoE+ ports Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 fixed Gigabit Ethernet SFP ports |
|
Additional ports and slots |
1 RJ-45 serial console port |
|
Memory and processor |
128 MB flash 128 MB SDRAM Packet buffer size: 0.5 MB |
|
Mounting and enclosure |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) |
|
Management |
IMC – Intelligent Management Center; Command-line interface; Web browser; SNMP manager |
|
Performance |
1000 Mb Latency < 3 μs Throughput up to 41.7 Mpps Routing/Switching capacity 56 Gbps Routing table size 32 entries (IPv4) MAC address table size 8192 entries |
|
Physical specifications |
|
|
Dimensions (H x W x D) |
4.36 x 44.0 x 36 cm ( 1.72 x 17.32 x 14.17 in ) ( 1U height ) |
|
Weight |
7 kg (15.43 lb) |
|
Electrical specifications |
|
|
Maximum heat |
539 BTU/hr (68.65 kJ/hr) |
|
Voltage |
100 – 240 V ac, rated (depending on power supply chosen) |
|
Maximum power rating |
832 W |
|
Idle power |
27.5 W |
|
PoE power |
720 W PoE+, optional |
|
Frequency |
50/60 Hz |
|
Environmental specifications |
|
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Operating relative humidity |
10% to 90%, noncondensing |
|
Nonoperating/Storage temperature |
-40°C to 70°C (-40°F to 158°F) |
|
Operating relative humidity |
10% to 90%, noncondensing |
|
Nonoperating/Storage temperature |
-40°C to 70°C (-40°F to 158°F) |
|
Nonoperating/Storage relative humidity |
5% to 95%, noncondensing |
|
Acoustic |
Pressure: 51.8 dB, Low-speed fan: 51.8 dB, High-speed fan: 55.3 dB; ISO 7779 |
|
Safety certifications |
|
|
Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance |
|
Emissions |
FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR 22 Class A; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A |
