Product Model: JC772A
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]

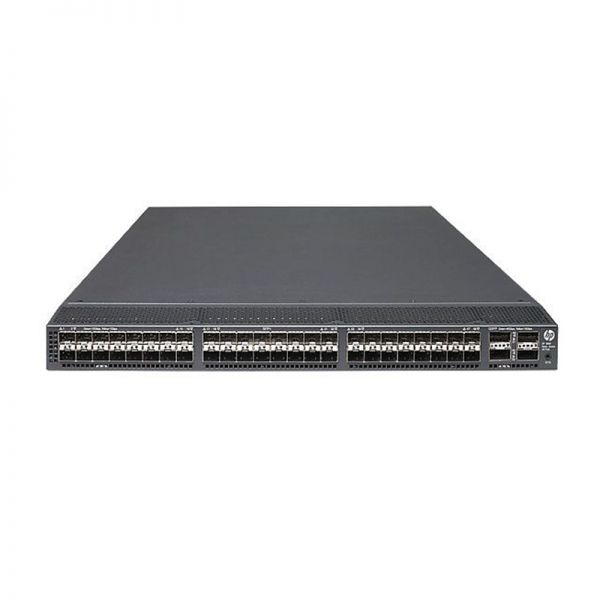

The HPE 5900AF-48XG-4QSFP+ Switch, designated as JC772A, is an integral component of modern data centers aiming to provide top-tier agility and scalability. This high-density, ultra-low-latency switch is engineered to manage the increasing demands of data center networks, facilitating a streamlined operation that enhances the performance and reliability of business-critical applications.
| Quick Spec | |
|---|---|
| Brand | HPE |
| Product Name | 5900AF-48XG-4QSFP+ Switch |
| Part Number | JC772A |
| Ports | 48 X 10 GbE SFP+ and 4 X 40 GbE QSFP+ |
| Switching Capacity | 1.28 Tbps |
Product Datasheet
- High-Density Scalability with up to 48 10GbE ports and 4 40GbE uplinks.
- Ultra-Low Latency for real-time application performance.
- IRF Support to simplify network management via virtualization.
- Energy Efficiency with the latest technologies for reducing power consumption.
- Advanced Layer 2 and Layer 3 feature set including IPV6 and MPLS support.
Product Applications
- Data Center Core Layers
- High-Performance Compute (HPC) clusters
- Enterprise Campus Networks
| Supported Options | |
|---|---|
| Power Supplies | JL086A, JL087A (for redundancy) |
| Fan Tray | JC683A |
| Direct Attach Cables | JG081C, JG326A, JG327A |
| Compare to Similar Items | |
|---|---|
| HPE 5900AF-48G-4XG-2QSFP+ (JG510A) | Lower port density and switching capacity |
| HPE FlexFabric 5700-48G-4XG-2QSFP+ (JG894A) | Comparatively less performance in high-demand environments |
| HPE FlexFabric 5930-32QSFP+ (JG726A) | More focused on ultra-high density with 40GbE ports |
Before Purchasing
For further details about the HPE 5900AF-48XG-4QSFP+ Switch and inquiries regarding price, feel free to contact us through Live Chat or at [email protected]. Our team is ready to provide you with the most advanced solutions tailored to your specific business needs.
JC772A Datasheet
JC772A Specifications | |
| Brand | HPE |
| Product Name | 5900AF-48XG-4QSFP+ Switch |
| Product Model | JC772A |
| Device Type | Switch – 48 ports – L3 – Managed |
| Form Factor | Rack-mountable 1U |
| Ports | 48 x 10 Gigabit SFP+ / 4 x 40 Gigabit QSFP+ |
| Performance | Throughput up to 1.44 Tbps, Switching capacity 960 Gbps |
| MAC Address Table Size | 128K entries |
| Jumbo Frame Support | Yes, up to 9,216 bytes |
| Routing Protocol | OSPF, RIP, BGP-4, IS-IS, IGMP, VRRP, PIM-SM, static IP routing, ECMP |
| Management | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH-2 |
| RAM | 2 GB |
| Flash Memory | 512 MB |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.32 x 26 x 1.72 in |
| Virtualization Technology | HP IRF Technology |
| Security Features | ACLs, RADIUS, Secure Shell v2 (SSHv2), SNMPv3, and more |
| Environmental Parameters | Operating temperature: 32 to 113 F, Storage temperature: -40 to 158 F |
| Compliance Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), and more |
| Warranty | Limited lifetime warranty |
