Product Model: JC104B
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]

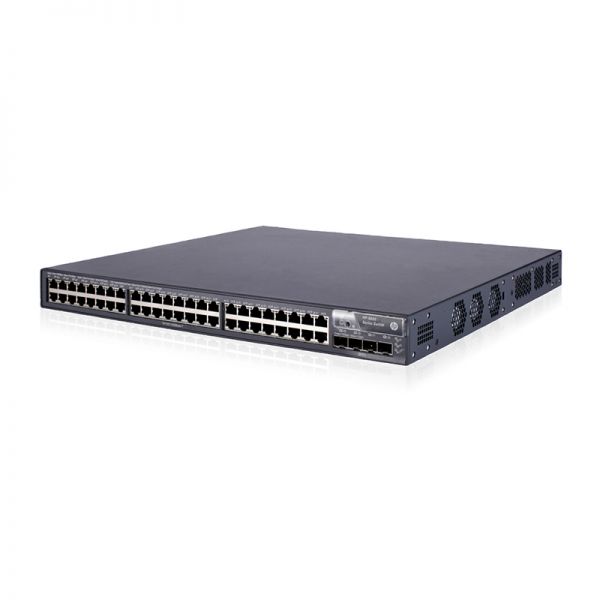

The HPE FlexFabric 5800 48G PoE+ 1-slot Switch, model JC104B, is a cutting-edge solution designed to meet the demands of high-speed, secure, and scalable network infrastructure. This switch is ideal for enterprises and data centers looking to enhance their network performance and reliability. With advanced features and robust security, the HPE FlexFabric 5800 switch ensures seamless connectivity and efficient network management.
Quick Spec
| Model Number | JC104B |
| Type | FlexFabric Switch |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| PoE Power | 740 W |
| Throughput | up to 130.9 Mpps |
Product Datasheet
- High-density PoE+ support for up to 48 ports
- High-performance data throughput at up to 130.9 million packets per second (Mpps)
- Flexible Gigabit Ethernet networking with 4 fixed Gigabit Ethernet SFP ports
- Scalability with a single expansion slot
- Robust security features including ACLs, firewall, and ID management
Product Applications
The HPE FlexFabric 5800 48G PoE+ switch, JC104B, is exceptionally versatile and can be used in various application scenarios, including:
- High-density PoE deployments in enterprise networks
- Aggregation layer in data centers
- Network backbone for SMBs requiring reliable and scalable connectivity
Supported Options
| Expansion Module | JC091C |
| Rack Mount Kit | JW098A |
| Power Supply | JL085A |
Compare to Similar Items
| Model | Differences |
| JC106B | Higher throughput and additional expansion slots |
| JC101A | Includes more SFP+ ports for 10 GbE |
| J9573A | Non-PoE+ version with similar port density |
Before Purchasing
To learn more about the HPE FlexFabric 5800 48G PoE+ 1-slot Switch (JC104B) and discuss your specific requirements, please contact us through Live Chat or [email protected]. Our team is ready to assist you with additional product details, pricing, and any other queries you may have.
JC104B Datasheet
JC104B Specifications | |
| Brand | HPE |
| Product Name | HPE FlexFabric 5800 48G PoE+ 1-slot Switch |
| Product Model | JC104B |
| Switch Type | Managed |
| Ports | 48 x Gigabit Ethernet Network, PoE+ |
| Expansion Slots | 1 x Expansion Slot |
| PoE Budget | 740 W |
| Switching Capacity | 176 Gbps |
| Throughput | up to 130.9 Mpps |
| Form Factor | Rack-mountable 1U |
| Memory and Processor | 1024 MB RAM, 512 MB flash; dual-core ARM Cortex-A9 @ 1016 MHz |
| Dimensions | 44.25 x 66.04 x 4.39 cm |
| Power Supply | Redundant power supply (optional) |
| Layer Supported | 3 |
| Operating Temperature | 0¡ãC to 45¡ãC |
| Storage Temperature | -40¡ãC to 70¡ãC |
| Operating Humidity | 10% to 90% (non-condensing) |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1Q, IEEE 802.3az, IEEE 802.3x, IEEE 802.1p, IEEE 802.1X, IEEE 802.3at (PoE+) |
| Security Features | Access Control Lists (ACL), Secure Shell (SSH), RADIUS, TACACS+, SNMPv3 |
| Management | Web-based GUI, Command Line Interface (CLI), SNMP |
| Warranty | Limited Lifetime Warranty |
