Product Model: JC101B
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]

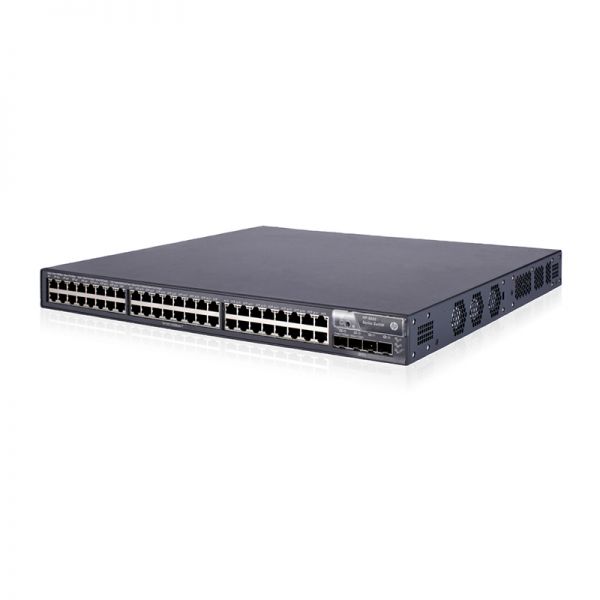

The HPE FlexFabric 5800 48G POE+ 2-slot Switch (JC101B) represents a cutting-edge convergence of high performance, adaptability, and manageability suitable for today’s demanding data center environments. Its feature set allows for flexible deployment across multiple network layers, while its POE+ capability ensures support for power-hungry devices directly through its interfaces, minimizing the need for additional power supplies and infrastructure.
| Quick Spec | |
|---|---|
| Brand | HPE |
| Model | JC101B |
| Product Name | HPE FlexFabric 5800 48G POE+ 2-slot Switch |
| Ports | 48 RJ-45 autosensing 10/100/1000 ports |
| POE+ | Supports up to 740W of POE+ power |
Product Datasheet
- High-density, Layer 2/3 switch with POE+ support.
- Resilient architecture with dual power supplies and fans.
- Scalable, with two expansion slots for additional modules.
- Comprehensive security features, including ACLs, firewall, and IDS/IPS.
- Energy-efficient design with Energy Efficient Ethernet (EEE) support.
Product Applications
- Enterprise LAN access layer in large campus networks for high-density user environments.
- Aggregation or core layer in small to medium-sized networks.
- Support for IoT deployments with POE-enabled devices like IP cameras and access points.
| Supported Options | |
|---|---|
| Expansion Module | JC092B (10GbE SFP+ Module) |
| Redundant Power Supply | JC087A |
| External Power System | JD183A (for extending POE+ power capacity) |
| Compare to Similar Items | |
|---|---|
| JC102B (FlexFabric 5820X) | Higher performance, supports 10GbE natively, no POE+ |
| J9773A (Aruba 2530 48G PoE+ Switch) | Similar POE+ support, but lower performance and does not support module expansion |
| J9853A (HP 2530 48G PoE+ 2SFP+ Switch) | Comparable with integrated 10GbE SFP+ ports, but lacks module expansion capability |
Before Purchasing about the HPE FlexFabric 5800 48G POE+ 2-slot Switch (JC101B) by contacting us through Live Chat or at [email protected]. Our team is ready to assist you with any inquiries regarding the product and its pricing.
JC101B Datasheet
JC101B Specifications | |
| Brand | HPE |
| Product Name | FlexFabric 5800 48G POE+ 2-slot Switch |
| Model Number | JC101B |
| Type | Switch |
| Form Factor | Rack-mountable |
| Ports | 48 x 10/100/1000 (POE+) + 4 x Gigabit / 10Gb SFP+ |
| Power Over Ethernet (PoE) | POE+ |
| Performance | Switching capacity: 208 Gbps Throughput: up to 154 Mpps |
| MAC Address Table Size | 32K entries |
| Management | Managed |
| Networking | Layer 3 switching |
| Routing Protocol | Static, RIP, OSPF, BGP, PIM |
| Features | Flow control, layer 3 switching, DHCP support, VPN support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, STP Root Guard, Non-Stop Routing (NSR), sFlow, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1p, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3at (PoE+), IEEE 802.3az |
| Memory | RAM: 2 GB Flash Memory: 512 MB |
| Power Supply | 1 (installed) / 2 (max) |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Dimension (W x D x H) | 17.32 in x 18.1 in x 1.73 in |
| Software Included | HP Intelligent Management Center |
| Warranty | Limited lifetime warranty |
