Product Model: IPC-HDW5241TM-AS

Retail Price: US$68.00

Email Us To Get Special Price Today: [email protected]

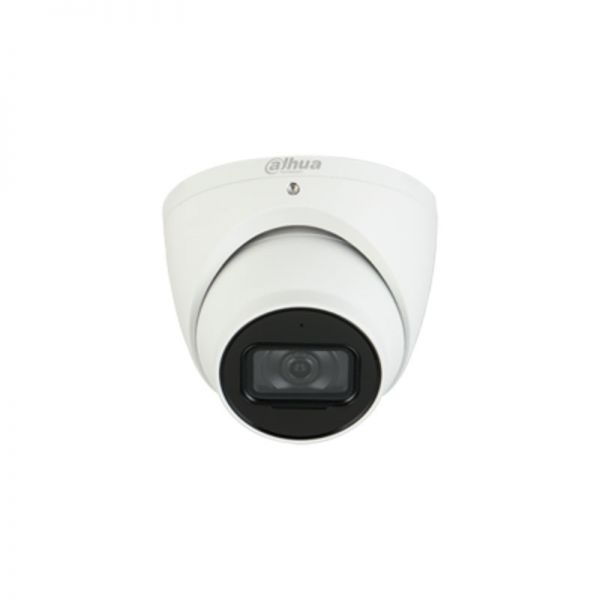

The Dahua IPC-HDW5241TM-AS is a robust 2MP WDR IR Eyeball AI Network Camera designed to provide high-quality surveillance in diverse lighting environments. This IP camera features advanced AI capabilities to enhance security and is ideal for both indoor and outdoor use. With its wide dynamic range (WDR) and infrared (IR) technology, the camera ensures clear and detailed images even in low-light conditions.

Quick Spec

Resolution	2MP (1920 x 1080)
Lens	2.8mm fixed lens
IR Distance	Up to 50 meters
WDR	120dB
AI Features	Face Detection, People Counting

Product Manual

● 2MP resolution with high-quality image capture
● Advanced AI capabilities including face detection and people counting
● Wide dynamic range (WDR) of 120dB for optimal image quality
● Infrared illumination enabling up to 50 meters of night vision
● Weather-resistant design suitable for outdoor use

Product Applications

● Commercial premises monitoring for detailed surveillance
● Residential security for enhanced safety and crime prevention
● Public spaces video monitoring to ensure public safety and manage crowd

Supported Options

Accessory	Model
Wall Mount	PFB203W
Junction Box	PFA130-E
POE Switch	PFS4218-16GT-240

Compare to Similar Items

Model	Differences
IPC-HDBW5241R-ZE	Varifocal lens, dome form factor
IPC-HFW5241E-Z12E	Motorized zoom lens, bullet form factor
IPC-HDW4631EM-ASE	6MP resolution, lower WDR (120dB)

Get more information

For further information about the Dahua IPC-HDW5241TM-AS, including pricing and detailed Manual, please contact us through Live Chat or at [email protected]. Check ‘Dahua IPC-HDW5241TM-AS’ price and ‘IPC-HDW5241TM-AS datasheet,’ and buy ‘Dahua IPC-HDW5241TM-AS Eyeball AI Network Camera’ with the best price and fast shipping. Free Live Chat support is available.

Specification

IPC-HDW5241TM-AS Datasheet

IPC-HDW5241TM-AS Specification

Camera

Image Sensor

1/2.8?? 2Megapixel progressive scan STARVIS? CMOS

Effective Pixels

1920 (H) ?? 1080 (V)

RAM/ROM

512 MB/128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3 s?C1/100000 s

Minimum Illumination

0.002 [email protected]

IR Distance

Distance up to 50 m (164 ft)

IR On/Off Control

Auto/Manual

IR LEDs

Lens

Lens Type

Fixed-focal

Mount Type

Board-in

Focal Length

2.8 mm, 3.6 mm, 6.0 mm

Max. Aperture

F1.6

Angle of View

H: 106??, V: 57??/H: 87??, V: 46??/H: 53??, V: 30??

Aperture Type

Fixed

Close Focus Distance

0.6 m (1.97 ft)/1.2 m (3.94 ft)/2.5 m (8.20 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

39m(128ft)

15m(49ft)

8m(26ft)

4m(13ft)

3.6mm

55m(180ft)

22m(72ft)

11m(36ft)

6m(20ft)

6.0mm

83m(272ft)

33m(108ft)

17m(56ft)

8m(26ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0??C360?; Tilt:0??C78?; Rotation:0??C360?

Artificial Intelligence

Face Detection

Support face image capture

Perimeter Protection

Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering

People Counting

Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection

General Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly

General Intelligence

Object Abandoned/Missing

Heat Map

Yes

Video

Compression

H.265,H.264,H.264B,H.264H,

MJPEG (sub stream)

Smart Codec

Yes

Streaming Capability

3 Streams

Resolution

1080P (1920 ?? 1080)/1.3M (1280 ?? 960)/720P (1280 ?? 720)/D1 (704 ?? 576/704 ?? 480)/VGA (640 ?? 480)/CIF (352 ?? 288/352 ?? 240)

Frame Rate

Main Stream: 1080P (1 fps?C25/30 fps)

Sub Stream: D1 (1 fps?C25/30 fps)

Third Stream: 1080P (1 fps?C6 fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 Kbps?C8192 Kbps

H.265: 19 Kbps?C7424 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC Mode

BLC/HLC/WDR (120 dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off/On (4 Zone, Rectangle)

Region of Interest

Off/On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Yes

Defog

Yes

Flip

0??/90??/180??/270??

Mirror

Off/On

Privacy Masking

Off/On (4 Area, Rectangle)

Audio

Compression

G.711a, G.711Mu, G.726, AAC, G.723

Network

Ethernet

RJ-45 (10/100 Base-T)

Protocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P

Streaming Method

Unicast/Multicast

Max. User Access

20 Users

Edge Storage

NAS;FTP;SFTP

Micro SD card 256 GB

Web Viewer

IE (versions newer than IE8), Chrome,

Firefox, Safari (versions newer than Safari 12)

Management Software

Smart PSS, DSS, DMSS

Smart Phone

iOS, Android

Certifications

CE-LVD: EN60950-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Interface

Audio Interface

Built-in MIC

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC 12V (??30%), PoE (802.3af) (Class 0)

Power Consumption

<6.8W

Environmental

Operating Conditions

-30?? C to +60?? C (-22?? F to +140?? F)/Less than 95% RH

Storage Conditions

-30?? C to +60?? C (-22?? F to +140?? F)

Ingress Protection

IP67

Construction

Casing

Metal

Dimensions

??106 mm ?? 93.6 mm (4.17?? ?? 3.69??)

Net Weight

0.55 kg (1.21 lb)

Gross Weight

0.71 kg (1.57 lb)
