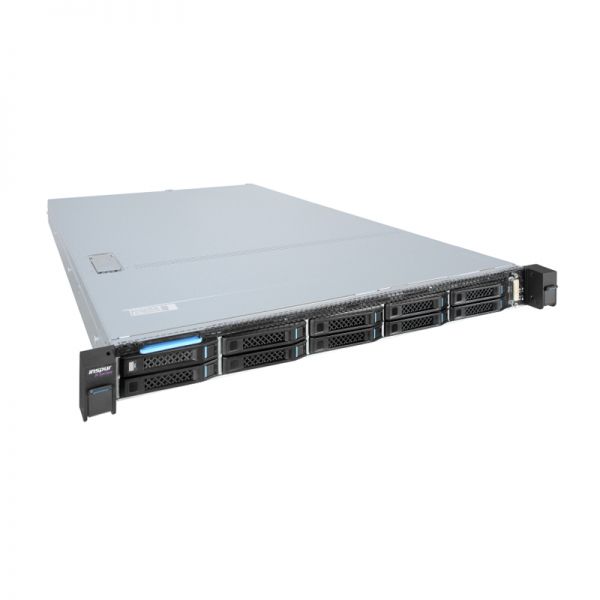

Inspur NF5180M5 Server – Inspur NF Rack Servers Price & Datasheet

Product Model: Inspur NF5180M5 Server

Retail Price: Price has expired

Email Us To Get Special Price Today:  [email protected]

Inspur NF5180M5 Server is a 1U two-socket rack mount server designed by Inspur to tackle the demands of the Internet, IDC (Internet Data Center), cloud computing, enterprise market and telecommunication business applications.

Quick Spec

Table 1 shows the quick spec.

Model	NF5180M5
Form Factor	1U
Chipset	Intel C622/C624 series chipset
Processor family	2 Intel Xeon Scalable processors, TDP up to 205W
Processor core available	Maximum 28-core per processor
Processor speed	3.6 GHz, maximum depending on processor
Processor cache	38.5 MB L3 cache
GPU	1 Compute Accelerator Card
Memory slot	24 DIMM slots, Capacity up to 1.5TB (64G x 24)
Memory type	RDIMMs, LDIMMs and NVDIMM

Product Details

Inspur NF5180M5 server provide these features:

Extreme Performance / World-class Performance

�� Accommodate latest Intel Xeon Scalable Processor product family and two 10.4 GT/s UPIs Internet link which provides the server with the best processing performance possible.

�� Supports 2666 MT/s ECC RDIMM, LRDIMM and NVDIMM memories, with excellent speed, high availability feature.

�� Support up to 10 hot plug NVMe SSD in full flash configurations, providing I0Ps 10 times as much as that of high-end enterprise-class SATA SSD.

�� Cooled with advanced air cooling system through unique intelligent control technology of Inspur, which offers optimal work environment, so as to guarantee stable system operation.

Flexible Design/Configurations

�� Within the limited space the server can take in one or two latest scalable CPUs based on the customer requirements.

�� Supports Up to 24 RDIMM or LRDIMM and can achieve maximum 3TB memory capacity. It also supports 16GB NVDIMM memories of 2,666 MT/ s bandwidth which is able to save complete memory data in case of power failure.

�� For optimal storage capacity, the server supports 4* 3.5�� or 12* 2.5�� hard disks at most.

�� Supports two built-in SATA M.2 and two PCIe M.2 hard disks.

�� Up to 3 standard PCIe 3.0 slots to further improve the server��s I/O scalability.

�� Support OCP or PHY network card to provide 1G, 10G, 25G, 40G, and other network interfaces on selection for more flexible network configuration for adapting various business scenarios.

Intelligent Management

�� Help users conduct accurate real-time monitoring and control system power consumption.

�� Together with Node manager 4.0 technology, system administrators can leverage efficient and comprehensive energy consumption control to further improve the energy efficiency performance of their overall IT infrastructure.

�� Provides a rapid visual diagnosis method through a LED display enables management personnel to quickly confirm faulty parts to be maintained, which greatly reduces the working pressure of system administrators.

Compare to Similar Item

Table 2 shows the comparison.

Model	NF5180M5	NF5280M5
Form Factor	1U	2U
Chipset	Intel C622/C624 series chipset	Intel C620 series chipset
Processor family	2 Intel Xeon Scalable processors, TDP up to 205W	2 Intel Xeon Scalable processors, TDP up to 205W
Processor core available	Maximum 28-core per processor	Maximum 28-core per processor
Processor speed	3.6 GHz, maximum depending on processor	3.6 GHz, maximum depending on processor
Processor cache	38.5 MB L3 cache	38.5 MB L3 cache
GPU	1 Compute Accelerator Card	4* NVIDIA Tesla GPU (V100,P100,P4, P40)
Memory slot	24 DIMM slots, Capacity up to 1.5TB (64G x 24)	24 DIMM slots, Capacity up to 1.5TB (64G x 24)
Memory type	RDIMMs, LDIMMs and NVDIMM	RDIMMs, LDIMMs and NVDIMM
