Product Model: IE-5000-12S12P-10G
Retail Price: US$14,118.00
Email Us To Get Special Price Today: [email protected]

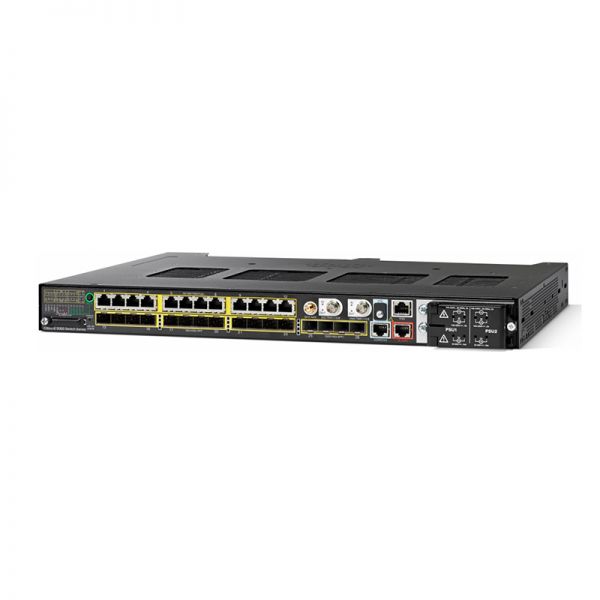

IE-5000-12S12P-10G is a Cisco IE 5000 switch, providing 12x1G SFP+12×10/100/1000 + 4 1G/10G LAN BASE. Cisco Industrial Ethernet (IE) 5000 Series Switches with four 10 Gigabit or four 1 Gigabit Ethernet uplinks and 24 Gigabit Ethernet downlinks is a rack mount, ruggedized switch that provides Layer 2 and Layer 3 line rate aggregation and copper Power over Ethernet (PoE) connectivity in the harshest of industrial environments. The IE 5000 Series uses superior high-bandwidth hardware switching and proven Cisco IOS Software. The IE 5000 is highly secure and scalable for access and aggregation layer deployments. It also provides Cisco stackable technologies for advanced network reliability. The switch is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements. The IE5000 has built-in SW image verification to ensure authenticity of the Cisco Software.
Quick Spec
Table 1 shows the quick spec.
|
Model |
IE-5000-12S12P-10G |
|
Total ports |
28 |
|
Uplinks |
4 SFP/SFP+ (1G/10G) |
|
SFP fiber ports (S) |
12 (FE/GE) |
|
Copper 10/100/1000 PoE/PoE+ ports |
12 (10/100/1000M) |
|
Default software |
LAN Base |
|
Dimensions (H?x?W?x?D) |
?/ PWR-RGD-LOW-DC-H |
|
Weight |
|
Product Details
Figure 1 shows the front view of IE 5000 switches.
Note:
|
¢Ù |
LEDs |
¢à |
Time of Day (TOD) Port (Not currently supported by software) |
|
¢Ú |
Display mode button |
¢á |
Power-input terminal |
|
¢Û |
Twelve 10/100/1000 PoE/PoE+ Ports (Downlinks) |
¢â |
Alarm port |
|
¢Ü |
GPS antenna port |
? |
Console port |
|
¢Ý |
Digital Timecode I/O (IRIG) (Not currently supported by software) |
? |
Four 1000 SFP/10G SFP+ Ports (Uplinks) |
|
¢Þ |
Analog Timecode I/O (IRIG) (Not currently supported by software) |
? |
Twelve 100/1000 SFP Ports (Downlinks) |
|
¢ß |
USB (mini-Type B) console port |
? |
Flash memory card slot |
Figure 2 shows the rear view of IE 5000 switches.
Note:
|
¢Ù |
Power Supply slot 1 |
|
¢Ú |
Power Supply slot 2 |
|
¢Û |
LED panel |
Supported Products
Table 2 shows the supported modules, cards, licenses and accessories.
|
Model |
Description |
|
L-IE5000-RTU= |
IE5000 electronic software license upgrade from LAN base to IP service Layer 3 features |
|
LIC-MRP-MANAGER= |
MRP ring manager license |
|
LIC-MRP-CLIENT= |
MRP ring client license |
|
C1F1PIE4K5K1K9 |
Cisco ONE Foundation Perpetual – IE 4000/5000 |
|
GLC-FE-100LX-RGD |
Cisco?GLC-FE-100LX-RGD?100Mbps Single Mode Rugged SFP |
|
GLC-FE-100FX |
100BASE-FX SFP for FE port |
|
GLC-FE-100LX |
100BASE-LX SFP for FE port |
|
GLC-TE |
1000BASE-T SFP transceiver module for Category 5 copper wire |
|
GLC-ZX-SM |
1000BASE-ZX SFP |
|
GLC-BX-U |
1000BASE-BX SFP, 1310NM |
|
SFP-GE-L |
1000BASE-LX/LH SFP (DOM) |
|
GLC-ZX-SMD |
Cisco?GLC-ZX-SMD?1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
|
GLC-SX-MMD |
Cisco?GLC-SX-MMD?1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
Compare to Similar Item
Table 3 shows the comparison.
|
Model |
IE-5000-12S12P-10G |
IE-5000-16S12P |
|
Total ports |
28 |
28 |
|
Uplinks |
4 SFP/SFP+ (1G/10G)1 |
4 SFP (1G) |
|
SFP fiber ports (S) |
12 (FE/GE) |
12 (FE/GE) |
|
Copper 10/100/1000 PoE/PoE+ ports |
12 (10/100/1000M) |
12 (10/100/1000M) |
|
Default software |
LAN Base2 |
LAN Base2 |
1?Uplink?ports?can?run?at?1?Gigabit?Ethernet?or?10?Gigabit?Ethernet mode?depending?on?the?SFP?or?SFP+?inserted.
2?Can?be?upgraded?to?IP?Services license?with the PID.
Ordering Guide
? [PDF]?Cisco Industrial Ethernet Switches Ordering Guide
? [PDF]?Simple Cisco Industrial Ethernet Switches (IE 4000, IE 2000 included) Selection Guides
Before Purchasing
Do you have any question about the IE-5000-12S12P-10G
Contact us – Email Live Chat or [email protected].
IE-5000-12S12P-10G Datasheet
IE-5000-12S12P-10G Specification |
|
|
Total ports |
28 |
|
Uplinks |
4 SFP/SFP+ (1G/10G) |
|
SFP fiber ports (S) |
12 (FE/GE) |
|
Copper 10/100/1000 PoE/PoE+ ports |
12 (10/100/1000M) |
|
Default software |
LAN Base |
|
Dimensions (H x W x D) |
¡ñ 1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H ¡ñ 1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x 38.56 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-250 |
|
Weight |
¡ñ Without Power Supply: 13.7 lb (6.21 kg) ¡ñ PWR-RGD-AC-DC-H: 2.55 lb (1.16kg) ¡ñ PWR-RGD-LOW-DC-H-H: 2.5 lb (1.13kg) ¡ñ PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg) |
|
Hardware |
¡ñ 1-GB DRAM ¡ñ 256-MB onboard flash memory ¡ñ 1-GB removable SD flash memory card ¡ñ Mini-USB connector ¡ñ RJ-45 traditional console connector ¡ñ GPS antenna interface (needs future software support) – GPS antenna input ¡ñ Analog Timing I/O interface (needs future software support) – For analog IRIG support ¡ñ Digital Timing I/O interface (needs future software support) – For digital timing such as IRIG-B TTL ¡ñ TOD interface (needs future software support) – Cisco Time-of-Day port to provide RS422 1 PPS, IRIG-B TTL or IOS-8601 and NMEA Time-of-Day support |
|
Alarm |
¡ñ Alarm I/O: four alarm inputs to detect dry contact open or closed, one Form C alarm output relay |
|
Power consumption |
¡ñ Maximum of 90W not including PoE consumption |
|
Accessories |
¡ñ SD-IE-1GB= – Spare SD card |
|
Forwarding bandwidth |
28Gbps (IE-5000-16S12P) or 64Gbps (IE-5000-12S12P-10G) – Line rate/Non-blocking |
|
Switching bandwidth |
56Gbps (IE-5000-16S12P) or 128Gbps (IE-5000-12S12P-10G) |
|
Forwarding rate |
41.67Mpps (IE-5000-16S12P) or 95.238Mpps (IE-5000-12S12P-10G) with 64 byte packets (Line rate) |
|
Number of queues |
4 egress |
|
Unicast MAC addresses |
16,000 |
|
IGMP multicast groups |
1,000 |
|
Number of VLANs |
1,005 |
|
IPv4 MAC security ACEs |
1,000 with default TCAM Template |
|
NAT translation |
Bidirectional, 256 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
