Product Model: IE-4010-16S12P
Retail Price: US$4,001.00
Email Us To Get Special Price Today: [email protected]
IE-4010-16S12P is an IE4010 series switch providing 16x1G SFP and 12×10/100/1000, and LAN Base. Cisco Industrial Ethernet (IE) 4010 Series Switches with 28 Gigabit Ethernet interfaces are high-performance ruggedized Layer2/3 switches with high-density Power-over-Ethernet (PoE) capabilities, making them an ideal choice for use as access switches in industrial environments. The 4010 delivers comprehensive Cisco IOS? Software security features and high-availability ring protocols. The switch is ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.
Quick Spec
Table 1 shows the quick spec.
|
Model |
IE-4010-16S12P |
|
Total Ports |
28 |
|
Uplinks |
4 SFP (100MB/1G) |
|
SFP fiber ports |
12 (100/1000M) |
|
Copper 10/100/1000 PoE/PoE+ Ports |
12 (10/100/1000M) |
|
Default software |
LAN Base feature set (Can be upgraded to IP Services license.) |
|
Dimensions, (H x W x D) |
|
|
Weight |
|
Product Details

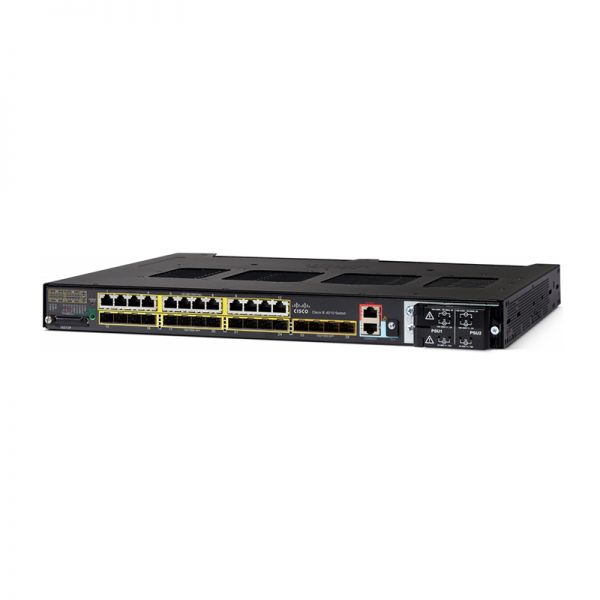

Figure 1 shows the front view of IE-4010-16S12P.
Note:
|
¢Ù |
12 (10/100/1000M) |
|
¢Ú |
Alarm contacts |
|
¢Û |
Field Replaceable Power supplies |
|
¢Ü |
Console port |
|
¢Ý |
4 SFP (100MB/1G) |
|
¢Þ |
12 (100/1000M) |
|
¢ß |
Swap Drive: SD Flash |
Supported Products
Table 2 shows the supported modules, cards, licenses and accessories.
|
Model |
Description |
|
L-IE4000-RTU= |
Electronic IP SERVICES License for IE4000 Switches |
|
C1F1PIE4K5K1K9 |
Cisco ONE Foundation Perpetual – IE 4000/5000 |
|
C1A1PIE40001K9 |
Cisco ONE Advanced Perpetual – IE 4000 |
|
PWR-RGD-AC-DC-H= |
Hazloc grade power supply high voltage (88-300VDC/85-264VAC), 150W |
|
PWR-RGD-AC-DC-250 |
Higher PoE, 250W PSU for IE4010/5000, 100-240VAC/100-250VDC |
|
PWR-RGD-LOW-DC-H |
IE4010/5000 Hazloc Pwr Supply Low DC 24-60V/10A |
|
GLC-SX-MM-RGD |
Cisco GLC-SX-MM-RGD 1000Mbps Multi-Mode Rugged SFP |
|
GLC-BX40-U-I |
1000BASE-BX10 SFP module for single-strand SMF, 1310-nm TX/1550-nm RX wavelength, single LC/PC connector |
|
GLC-TE |
1000BASE-T SFP transceiver module for Category 5 copper wire |
|
GLC-ZX-SM |
1000BASE-ZX SFP |
|
GLC-BX-U |
1000BASE-BX SFP, 1310NM |
|
SFP-GE-L |
1000BASE-LX/LH SFP (DOM) |
|
GLC-ZX-SMD |
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
|
GLC-SX-MMD |
Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
GLC-FE-100EX |
100BASE-EX SFP (40km) |
|
GLC-FE-100BX-U |
100BASE-BX10-U SFP |
Compare to Similar Items
Table 3 shows the comparison.
|
Model |
IE-4010-16S12P |
IE-4010-4S24P |
|
Total Ports |
28 |
28 |
|
Uplinks |
4 SFP (100MB/1G) |
4 SFP (100MB/1G |
|
SFP fiber ports |
12 (100/1000M) |
N/A |
|
Copper 10/100/1000 PoE/PoE+ Ports |
12 (10/100/1000M) |
24 (10/100/1000M) |
|
Default software |
LAN Base feature set (Can be upgraded to IP Services license.) |
LAN Base feature set (Can be upgraded to IP Services license.) |
Ordering Guide
[PDF] Cisco Industrial Ethernet Switches Ordering Guide
[PDF] Simple Cisco Industrial Ethernet Switches (IE 4000, IE 2000 included) Selection Guides
Before Purchasing
Do you have any question about the IE-4010-16S12P?
Contact us – Email Live Chat or [email protected].
IE-4010-16S12P Datasheet
IE-4010-16S12P Specifications |
|
|
Total Ports |
28 |
|
Uplinks |
4 SFP (100MB/1G) |
|
SFP fiber ports |
12 (100/1000M) |
|
Copper 10/100/1000 PoE/PoE+ Ports |
12 (10/100/1000M) |
|
Default software |
LAN Base feature set (Can be upgraded to IP Services license.) |
|
Hardware |
¡ñ 1 GBDRAM ¡ñ 128 MB onboard flash memory ¡ñ 1-GB removable SD flash memory card ¡ñ Mini-USB and traditional RJ-45 console connector |
|
Alarm |
Alarm I/O: four alarm inputs to detect dry contact open or closed, one Form C alarm output relay |
|
Dimensions, (H x W x D) |
¡ñ 1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H ¡ñ 1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x 38.56 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-250 |
|
Weight |
¡ñ Without power supply: 12.7 lb (5.78 kg) ¡ñ PWR-RGD-AC-DC-H:2.55 lb (1.16 kg) ¡ñ PWR-RGD-LOW-DC-H:2.5 lb (1.13 kg) ¡ñ PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg) |
|
Power consumption |
¡ñ Maximum of 90W not including PoE consumption |
|
Accessories |
¡ñ SD-IE-1GB= – Spare SD card ¡ñ L-IE4000-RTU= -Electronic RTU IP services software license for 4010 switches ¡ñ 21¨Cin. and 23¨Cin. ETSI rack mount brackets |
|
Forwarding bandwidth |
28 Gbps (line rate/non-blocking) |
|
Switching bandwidth |
56 Gbps(Switching bandwidth is full-duplex capacity) |
|
Forwarding rate |
41.67 mpps with 64 byte packets (line rate for all ports and packet sizes) |
|
Number of queues |
4 egress |
|
Unicast MAC addresses |
16,000 |
|
IGMP multicast groups |
1000 |
|
Number of VLANs |
1000 |
|
IPv4 MAC security ACEs |
1000 with default TCAM template |
|
NAT translation |
Bidirectional, 128 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
