Product Model: IE-3010-16S-8PC
Retail Price: US$2,525.00
Email Us To Get Special Price Today: [email protected]

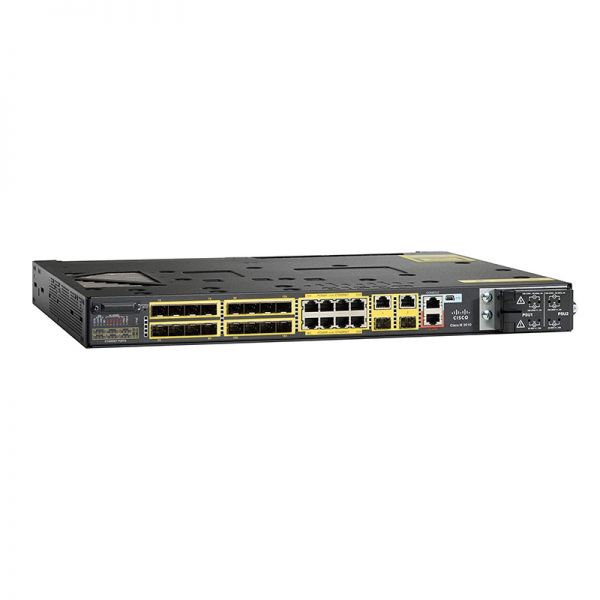

IE-3010-16S-8PC is the Cisco IE 3010 Switch, providing 16 100SFP, 8 10/100 PoE, 2 GE combo uplinks, no PSU included. Cisco Industrial Ethernet 3010 Series (IE 3010) is a family of rack-mount L2/L3 switches provide fiber SFP layer 3 aggregation and Power over Ethernet (PoE) configurations in the harsh industrial environment. It brings Cisco’s leadership in switching to industrial Ethernet application with innovative features, robust security, and end-to-end Ethernet in the industrial network.
Quick Spec
Table 1 shows the quick spec.
|
Model |
IE-3010-16S-8PC |
|
Ports |
16 Fast Ethernet SFP ports, 8 10/100BASETX/PoE ports, and 2 dual-purpose Gigabit Ethernet uplink ports. (each dual-purpose uplink port has one 10/100/1000 Ethernet port and one SFP-based Gigabit Ethernet port, one port active) |
|
Performance and scalability |
? Wire-speed switching, 8 Gbps switching fabric ? Forwarding rate based on 64-byte packets: 6.5 Mpps ? 256 MB DDR2 SDRAM ? 1 GB SD Flash memory (128 MB enabled) ? Layer 2 LAN Base image supports 255 Vlans, 2000 MAC addresses, 256 IGMP groups. ? Layer 3 IP Services image supports 1000 Vlans, 3000 MAC addresses, 1000 IGMP groups, 3000 unicast routes ? Configurable maximum transmission unit (MTU) of up to 9000 bytes, with a maximum Ethernet frame size of 9018 bytes (jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1998 bytes for bridging on both Fast Ethernet ports |
|
Dimensions (H x W x D) |
1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1RU (rack unit) height |
|
Weight |
10 lb (4.5kg) (without power supply unit) |
Product Details
Figure 1 shows the front view of this switch.
Note:
|
¢Ù |
SD flash memory card slot |
¢Ý |
Power-input terminal |
|
¢Ú |
Dual purpose ports |
¢Þ |
Alarm port |
|
¢Û |
RJ-45 console port |
¢ß |
10/100 PoE ports |
|
¢Ü |
USB (mini-Type B) console port |
¢à |
100BASE-FX SFP ports |
Figure 2 shows the rear view.
Supported Products
Table 2 shows the accessories.
|
Model |
Description |
|
PWR-RGD-LOW-DC/IA |
Low DC (24/48V) power supply module for the IE-3010 switch (available Q1 CY2011) |
|
PWR-RGD-AC-DC/IA |
High AC/DC (88-300VDC/85-264VAC) power supply module for the IE-3010 switch |
|
SD-IE-1GB |
Spare 1 GB SD flash memory card |
|
CAB-CONSOLE-RJ45 |
Spare console cable 6 ft with RJ45 and DB9F |
|
CAB-CONSOLE-USB |
Spare console cable 6 ft with USB Type A and mini-B |
|
GLC-SX-MM-RGD |
Rugged Gigabit Ethernet SFP, LC connector, multimode fiber, 220-550 m |
|
GLC-LX-SM-RGD |
Rugged Gigabit Ethernet SFP, LC connector, single mode fiber, 550 m – 10 km |
|
GLC-ZX-SM-RGD |
Rugged Gigabit Ethernet SFP, LC connector, single mode fiber, 70 km |
|
GLC-FE-100FX-RGD |
Rugged Fast Ethernet SFP, LC connector, multimode fiber, 2 km |
|
GLC-FE-100LX-RGD |
Rugged Fast Ethernet SFP, LC connector, single mode fiber, 10 km |
Compare to Similar Items
Table 3 shows the comparison.
|
Model |
IE-3010-24TC |
IE-3010-16S-8PC |
|
Ports |
24 10/100BASETX ports and two dual-purpose Gigabit Ethernet uplink ports. (each dual-purpose uplink port has one 10/100/1000 Ethernet port and one SFP-based Gigabit Ethernet port, one port active) |
16 Fast Ethernet SFP ports, 8 10/100BASETX/PoE ports, and 2 dual-purpose Gigabit Ethernet uplink ports. (each dual-purpose uplink port has one 10/100/1000 Ethernet port and one SFP-based Gigabit Ethernet port, one port active) |
|
Performance and scalability |
? Wire-speed switching, 8 Gbps switching fabric ? Forwarding rate based on 64-byte packets: 6.5 Mpps ? 256 MB DDR2 SDRAM ? 1 GB SD Flash memory (128 MB enabled) ? Layer 2 LAN Base image supports 255 Vlans, 2000 MAC addresses, 256 IGMP groups. ? Layer 3 IP Services image supports 1000 Vlans, 3000 MAC addresses, 1000 IGMP groups, 3000 unicast routes ? Configurable maximum transmission unit (MTU) of up to 9000 bytes, with a maximum Ethernet frame size of 9018 bytes (jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1998 bytes for bridging on both Fast Ethernet ports |
? Wire-speed switching, 8 Gbps switching fabric ? Forwarding rate based on 64-byte packets: 6.5 Mpps ? 256 MB DDR2 SDRAM ? 1 GB SD Flash memory (128 MB enabled) ? Layer 2 LAN Base image supports 255 Vlans, 2000 MAC addresses, 256 IGMP groups. ? Layer 3 IP Services image supports 1000 Vlans, 3000 MAC addresses, 1000 IGMP groups, 3000 unicast routes ? Configurable maximum transmission unit (MTU) of up to 9000 bytes, with a maximum Ethernet frame size of 9018 bytes (jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1998 bytes for bridging on both Fast Ethernet ports |
|
Dimensions (H x W x D) |
1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1RU (rack unit) height |
1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1RU (rack unit) height |
|
Weight |
9.1 lb (4.1kg) (without power supply unit) |
10 lb (4.5kg) (without power supply unit) |
Ordering Guide
? [PDF]?Cisco Industrial Ethernet Switches Ordering Guide
? [PDF]?Simple Cisco Industrial Ethernet Switches (IE 4000, IE 2000 included) Selection Guides
Before Purchasing
Do you have any question about the IE-3010-16S-8PC
Contact us – Email Live Chat or [email protected].
IE-3010-16S-8PC Datasheet
IE-3010-16S-8PC Specification |
|
|
Ports |
16 Fast Ethernet SFP ports, 8 10/100BASETX/PoE ports, and 2 dual-purpose Gigabit Ethernet uplink ports. (each dual-purpose uplink port has one 10/100/1000 Ethernet port and one SFP-based Gigabit Ethernet port, one port active) |
|
Performance and scalability |
• Wire-speed switching, 8 Gbps switching fabric • Forwarding rate based on 64-byte packets: 6.5 Mpps • 256 MB DDR2 SDRAM • 1 GB SD Flash memory (128 MB enabled) • Layer 2 LAN Base image supports 255 Vlans, 2000 MAC addresses, 256 IGMP groups. • Layer 3 IP Services image supports 1000 Vlans, 3000 MAC addresses, 1000 IGMP groups, 3000 unicast routes • Configurable maximum transmission unit (MTU) of up to 9000 bytes, with a maximum Ethernet frame size of 9018 bytes (jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1998 bytes for bridging on both Fast Ethernet ports |
|
Dimensions (H x W x D) |
1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1RU (rack unit) height |
|
Weight |
10 lb (4.5kg) (without power supply unit) |
|
Connectors and cabling |
10/100 ports: • 10/100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 unshielded twisted pair (UTP) or shielded twisted pair (STP) cabling • 100FX SFP ports (IE-3010-16S-8PC only): • 100BASE-FX, -LX, -ZX, and -BX10: Duplex LC receptacle fiber connectors (multimode and single mode) Gigabit ports: • 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP/STP cabling • 1000BASE-SX, -LX/LH, -ZX, and -BX10: Duplex LC receptacle fiber connectors (multimode and single-mode fiber) Console ports: • Management console port: RJ45 connector for serial connection • Management console port: USB mini type B connector for USB connection |
|
Indicators |
• Per-port status LEDs: Link integrity, port disabled, and activity indications • System-status LED: System activity, system integrity, • Alarm-in status LEDs: Four alarm inputs status indicator • Alarm-out status LED: Alarm status indicator • Power supply unit LED: Power output integrity and power supply presence • PoE (IE-3010-16S-8PC only): PoE activity, PoE integrity, and PoE disabled • SD Flash LED: SD flash integrity and SD flash presence • RS232 LED: RS232 console selection • USB LED: USB console selection |
|
Environmental ranges |
• -40 ºF to 140ºF (-40 to +60ºC) continuous operating temperature range • -40 ºF to 185ºF (-40 to +85ºC) type test for 16 hours at 85ºC • Operating altitude: 3000 m (9843 ft) at 40ºC (104ºF) • Operating relative humidity: 5% to 95% noncondensing |
|
Storage and transportation |
• Temperature: -40 ºF to 185ºF (-40 to +85 ºC) • Altitude: 15,000 ft (4570 m) • Relative humidity: 5% to 95% noncondensing |
|
Mean time between failure (MTBF) |
• Cisco IE-3010-24TC: 207,731 hrs • Cisco IE-3010-16S-8PC: 230,112 hrs |
|
Warranty |
Five years limited warranty |
