Product Model: ICX7250-48-2X10G
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]

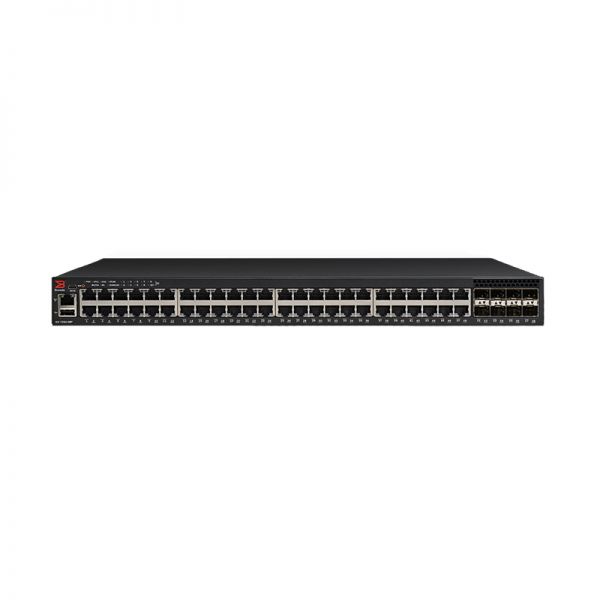

The Ruckus ICX 7250-48-2X10G brings high performance, flexibility, and scalability to small and medium-sized enterprise networks. This 48-port switch is designed to handle high traffic loads with its 2×10 GbE uplinks, making it an ideal solution for organizations seeking reliable, high-speed network connectivity.
Quick Spec
| Brand | Ruckus |
| Model | ICX7250-48-2X10G |
| Port Count | 48 |
| Uplinks | 2×10 GbE |
| Stacking Capability | Yes |
Product Datasheet
- ● High-Performance Switching and Routing
- ● Advanced Security Features
- ● Non-Stop Forwarding and Fast Failover
- ● Simple to Manage and Deploy
- ● Energy Efficient Design
Product Applications
The Ruckus ICX7250-48-2X10G switch is well-suited for a range of environments, including:
- ● Medium to large-sized enterprise LAN access applications
- ● Aggregated or standalone WLAN access point deployments
- ● Unified communications and video conferencing systems integration
Supported Options
| 1G SFP Transceiver | RJ45 |
| 10G SFP+ Transceiver | LR/SR |
| Stacking Cable | 1m/3m Options |
Compare to Similar Items
| Item | Differences |
| ICX7150-48 | Fewer uplink options, no 10GbE |
| ICX7450-48 | Higher scalability, more uplink capabilities |
| ICX6650-48 | High-end, more expensive, designed for very large networks |
For more information about the Ruckus ICX 7250-48-2X10G and to discuss how it might fit your networking needs, do not hesitate to reach out via Live Chat or email us at [email protected]. Our team is ready to assist you with any questions about the product and its pricing.
ICX7250-48-2X10G Datasheet
ICX7250-48-2X10G Specifications | |
| Brand | Ruckus |
| Product Name | ICX7250-48-2X10G |
| Type | 48-Port Switch with 2×10 GBE Uplinks |
| Number of Ports | 48 |
| Uplink Ports | 2 x 10 GbE |
| Data Transfer Rate | 10 Gbps |
| Switching Capacity | Up to 256 Gbps |
| Forwarding Rate | 191 Mpps |
| Form Factor | Rack Mountable |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ae |
| Power Over Ethernet (PoE) | Optional |
| Power Supply | Internal AC Power Supply |
| Stacking Capability | Yes, up to 12 units |
| Management | Web-based, SNMP, CLI |
| Memory | 1 GB RAM, 1 GB Flash |
| Layer 3 Features | Static Routing, RIP, OSPF, VRRP, PIM, MLD, DVMRP, IPv4/IPv6 |
| Quality of Service (QoS) | Advanced QoS Features |
| Security Features | 802.1X, MACsec, Access Control Lists (ACLs), IP Source Guard, Dynamic ARP Inspection |
| Dimensions (HxWxD) | 1.7 x 17.3 x 16.2 inches |
| VLAN Support | Yes |
| Fan | Removable, replaceable fans |
| Warranty | Limited Lifetime Warranty |
