Product Model: ICX7150-48P-4X10GR
Retail Price: US$2,928.00
Email Us To Get Special Price Today: [email protected]
The RUCKUS ICX 7150 family of stackable switches delivers the performance, flexibility, and scalability required for enterprise access deployment, raising the bar with non-blocking performance and up to 8×10 GbE ports for uplinks or stacking.
Quick Specs

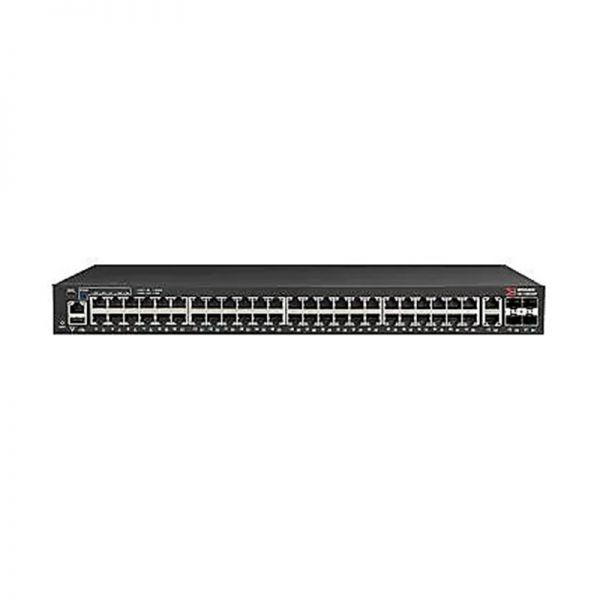

Figure 1 shows the appearance of ICX7150-48P-4X10GR.
Table 1 shows the Quick Specs.
|
Product Code |
ICX7150-48P-4X10GR |
|
Ports |
48 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
|
Power Over Ethernet (PoE) |
PoE+ |
|
PoE Budget |
370 W |
|
Power Device |
Internal power supply |
Product Details
Figure 2 shows the front panel of ICX7150-48P-4X10GR.
Figure 3 shows the back panel of ICX7150-48P-4X10GR.
ICX7150-48P-4X10GR provides these features:
RUCKUS Campus Fabric technology delivers unmatched flexibility, scalability and simplified management for campus network deployments. Incorporating all of the ICX 7000 switch families with up to 1800 ports in a single logical domain, Campus Fabric allows customers the benefits of a traditional chassis, with the flexibility of stackable switches at a dramatically reduced Total Cost of Ownership (TCO).
Advanced stacking goes beyond traditional stacking with capabilities that take flexibility, ease of management and cost effectiveness to then next level, including:
- Stacking on standard Ethernet ports
- Long-distance stacking
- No hardware module require for stacking
- In Service Software Upgrade (ISSU) to minimize downtime
- Superior scalability with the industry-leading number of switches per stack
- Stacking at the access, aggregation and core layers
Enterprise-Class Availability to improve resiliency and minimize downtime, including:
- Hitless stack failover
- Hot-insertion/removal of stack members
- Redundant power supplies
- In Service Software Upgrades for switch stacks
On-boarding and security policies across ICX switches and wireless networks.
OpenFlow 1.3 protocol support in hybrid mode allows user to deploy traditional Layer 2/3 forwarding with OpenFlow on the same port for Software Defined Network (SDN) enabled programmatic control of the network
Open Standards based management, monitoring and authentication
- sFlow-based network monitoring to help analyze traffic statistics and trends on every link and overcome unexpected network congestion
- Open-standards management includes Command Line Interface (CLI), Secure Shell (SSHv2), Secure Copy (SCP), and SNMPv3
- Support for Access Controller Access Control System (TACACS/TACACS+) and RADIUS authentication helps ensure secure operator access
- LLDP and LLDP-MED protocol support for configuring, discovering, and managing network infrastructure such as QoS, security policies, VLAN assignments, PoE power levels, and service priorities
Compare to Similar Items
Table 2 shows the comparison of ICX7150-48P-4X10GR.
|
Module |
ICX7150-24P-4X10GR |
ICX7150-48P-4X10GR |
|
Ports |
24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 2 x Gigabit SFP + 2 x 10 Gigabit SFP+ (uplink) |
48 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
|
Power Over Ethernet (PoE) |
PoE+ |
PoE+ |
|
PoE Budget |
370 W |
370 W |
|
Power Device |
Internal power supply |
Internal power supply |
Get More Information
Do you have any question about the ICX7150-48P-4X10GR?
Contact us – Email Live Chat or [email protected].
ICX7150-48P-4X10GR Datasheet
ICX7150-48P-4X10GR specification |
|
|
General |
|
|
Device Type |
Switch – 48 ports – L3 – managed – stackable |
|
Enclosure Type |
Front and side to back rack-mountable 1U |
|
Subtype |
Gigabit Ethernet |
|
Ports |
48 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
|
Power Over Ethernet (PoE) |
PoE+ |
|
PoE Budget |
370 W |
|
Performance |
Switching capacity: 180 Gbps | Forwarding performance: 134 Mpps | Stacking bandwidth: 320 Gbps |
|
Capacity |
Virtual interfaces (VLANs): 4095 | Spanning Tree Protocol instances: 254 | ARP entries: 2048 | QoS hardware queues: 8 |
|
MAC Address Table Size |
16384 entries |
|
Jumbo Frame Support |
9216 bytes |
|
Max Units In A Stack |
8 |
|
Routing Protocol |
RIP-1, RIP-2, static IPv4 routing, static IPv6 routing, RIPng |
|
Remote Management Protocol |
Telnet, SNMP 3, HTTP, HTTPS, TFTP, CLI, SCP |
|
Encryption Algorithm |
AES |
|
Authentication Method |
RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
|
Features |
Flow control, DoS attack prevention, DiffServ support, Weighted Round Robin (WRR) queuing, IPv6 support, sFlow, Virtual Cable Test (VCT) technology, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Trusted Platform Module (TPM), IPv4 support, DHCP relay, Class of Service (CoS), Strict Priority (SP), tagged VLAN, 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, OpenFlow support, Network Timing Protocol (NTP) |
|
Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1BR |
|
RAM |
1 GB |
|
Flash Memory |
2 GB |
|
Expansion / Connectivity |
|
|
Interfaces |
48 x 1000Base-T RJ-45 12 ports (PoE+) / 24 ports (PoE) | 2 x 1000Base-T RJ-45 uplink | 1 x management RJ-45 | 1 x console RJ-45 | 1 x USB-C management | 4 x Gigabit / 10Gbit LAN SFP+ uplink/stacking |
|
Power |
|
|
Power Device |
Internal power supply |
|
Installed Qty |
1 (installed) / 1 (max) |
|
Power Provided |
525 Watt |
|
Voltage Required |
AC 120/230 V (50/60 Hz) |
|
Miscellaneous |
|
|
Compliant Standards |
FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN50081-1, EN55022, ICES-003, EN 61000-3-3, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, RoHS, EN 61000-6-3, EN 60825-2, IEC 60950-1 Second Edition, VCCI Class A, EN 60950-1:2006, AS/NZS 55022, IEC 60068-2-36 |
|
Dimensions |
|
|
Width |
17.3 in |
|
Depth |
14.6 in |
|
Height |
1.7 in |
|
Manufacturer Warranty |
|
|
Service & Support |
Limited warranty – lifetime |
|
Environmental Parameters |
|
|
Min Operating Temperature |
23 ¡ãF |
|
Max Operating Temperature |
122 ¡ãF |
|
Humidity Range Operating |
5 – 95% (non-condensing) |
|
Min Storage Temperature |
-13 ¡ãF |
|
Max Storage Temperature |
158 ¡ãF |
|
Humidity Range Storage |
0 – 95% (non-condensing) |
