Product Model: Huawei RH1288 V3 Rack Server
Retail Price: Price has expired
Email Us To Get Special Price Today: [email protected]

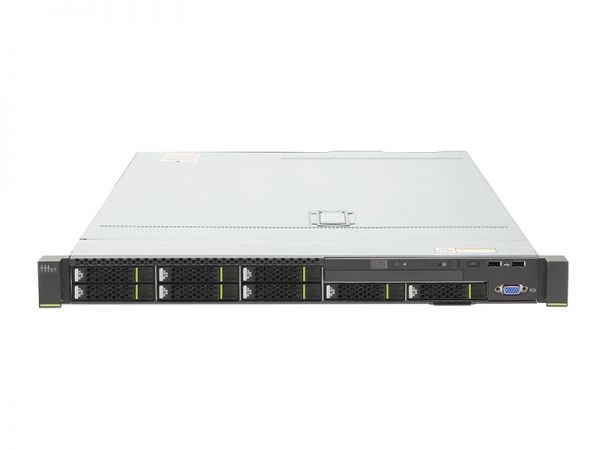

Huawei FusionServer RH1288 V3 is a standard 1U, 2-socket rack server. It supports Intel® Xeon® E5-2600 v3 and v4 series processors with up to 20 cores per processor, unlocking superior performance for enterprises’ computing-intensive applications. Designed for cloud computing applications, enterprise applications requiring computing and storage resources, RH1288 V3 strikes an optimal balance between performance and density by supporting up to 1 TB memory and 16 TB local storage. This RH1288 V3 Rack Server offers 3 configurations, including 8-disk configuration 1, 8-disk configuration 2 and 4-disk configuration.
Quick Specs
Table 1.
|
Product |
Huawei RH1288 V3 Rack Server |
|
Processors |
Intel® Xeon® E5-2600 v3/v4 series processors |
|
Memory |
16 DDR4 RDIMMs/LRDIMMs |
|
Internal Storage |
Hard disk configurations: · 8 x 2.5-inch SAS/SATA HDDs or SSDs (4 NVMe SSDs supported by the NVMe model) Built-in flash memory: · 2 mini-SSD cards (SATADOMs) |
|
RAID |
· RAID 0, 1, 10, 5, 50, 6, or 60 · Configured with a supercapacitor for power-off protection for the cache (optional) · RAID state transition, configuration memory, self-diagnosis, and web-based remote configuration |
|
LOM Network Ports |
2 GE or 4 GE ports, or 2 x 10 GE ports, or 2 x 56 Gbit/s FDR InfiniBand ports |
|
PCIe Expansion |
Up to 3 PCIe slots |
|
Fan Modules |
5 hot-swappable fan modules in N+1 redundancy mode |
|
Power Supply Units |
2 hot-swappable PSUs in 1+1 redundancy mode |
|
Management |
· Uses Huawei Hi1710 management chip and independent ports · Supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring · Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios |
|
Operating Temperature |
5ºC to 45ºC (41ºF to 113ºF), ASHRAE Class A3 and A4 compliant |
|
Dimensions (W x D x H) |
RH1288 V3 with 3.5-inch hard disks: 436 mm x 748 mm x 43 mm RH1288 V3 with 2.5-inch hard disks: 436 mm x 708 mm x 43 mm |
Product Details
Figure 1 shows the appearance of RH1288 V3 server.
Figure 1-1 RH1288 V3 server 4-disk configuration.
Figure 1-2 RH1288 V3 server 8-disk configuration.
Figure 2 shows the front panel of RH1288 V3 server.
Figure 2-1 RH1288 V3 server 4-disk configuration.
Note:
|
① |
Hard Disks |
⑤ |
UID button/indicator |
|
② |
Label (including the ESN label) |
⑥ |
USB 2.0 port |
|
③ |
NMI button |
⑦ |
USB 2.0 port |
|
④ |
Power button/indicator |
⑧ |
VGA port |
Figure 2-2 RH1288 V3 server 8-disk configuration 1 (2.5-inch backplane for SAS HDDs, SATA HDDs, or SSDs).
Note:
|
① |
Hard Disks |
⑤ |
UID button/indicator |
|
② |
Video graphics array (VGA) port |
⑥ |
USB 2.0 port |
|
③ |
NMI button |
⑦ |
USB 2.0 port |
|
④ |
Power button/indicator |
Figure 2-3 RH1288 V3 server 8-disk configuration 2 (2.5-inch backplane for NVMe PCIe SSDs).
Note:
|
① |
Hard Disks |
|
② |
NVMe PCIe SSD |
Figure 3 shows the back panel of RH1288 V3 server.
Note:
|
① |
Full-height PCIe slot |
⑥ |
USB 3.0 port |
|
② |
Half-height PCIe slot |
⑦ |
VGA port |
|
③ |
LAN on motherboard (LOM) |
⑧ |
Serial port |
|
④ |
Management network port (Mgmt) |
⑨ |
PSU |
|
⑤ |
USB 3.0 port |
⑩ |
Power socket for a power supply unit (PSU) |
Compare to Similar Items
Table 2 shows the comparison of HUAWEI RH1288 V3 RACK SERVER and HUAWEI RH2288H V3 RACK SERVER.
|
Model |
HUAWEI RH1288 V3 RACK SERVER |
HUAWEI RH2288H V3 RACK SERVER |
|
Processors |
Intel® Xeon® E5-2600 v3/v4 series processors |
Intel® Xeon® E5-2600 v3/v4 series processors |
|
Memory |
16 DDR4 RDIMMs/LRDIMMs |
24 DDR4 RDIMMs/LRDIMMs |
|
LOM Network Ports |
2 GE or 4 GE ports, or 2 x 10 GE ports, or 2 x 56 Gbit/s FDR InfiniBand ports |
2 GE or 4 GE ports, or 2 x 10 GE ports, or 2 x 56 Gbit/s FDR InfiniBand ports |
|
PCIe Expansion |
Up to 3 PCIe slots |
Up to 9 PCIe 3.0 slots |
|
Fan Modules |
5 hot-swappable fan modules in N+1 redundancy mode |
Hot-swappable fan modules in N+1 redundancy mode |
|
Power Supply Units |
2 hot-swappable PSUs in 1+1 redundancy mode |
2 hot-swappable PSUs in 1+1 redundancy mode |
Get more information
Do you have any question about the HUAWEI RH1288 V3 RACK SERVER
Contact us now via Live Chat or [email protected].
Huawei RH1288 V3 Rack Server Datasheet
HUAWEI RH1288 V3 RACK SERVER Manual |
|
|
Form factor |
1U rack server |
|
Number of processors |
1 or 2 |
|
Processor model |
Intel® Xeon® E5-2600 v3/v4 series processors |
|
Memory |
16 DDR4 RDIMMs/LRDIMMs |
|
Internal Storage |
Hard disk configurations: · 8 x 2.5-inch SAS/SATA HDDs or SSDs (4 NVMe SSDs supported by the NVMe model) Built-in flash memory: · 2 mini-SSD cards (SATADOMs) |
|
RAID |
· RAID 0, 1, 10, 5, 50, 6, or 60 |
|
LOM Network Ports |
2 GE or 4 GE ports, or 2 x 10 GE ports, or 2 x 56 Gbit/s FDR InfiniBand ports |
|
PCIe Expansion |
Up to 3 PCIe slots |
|
Fan Modules |
5 hot-swappable fan modules in N+1 redundancy mode |
|
Power Supply Units |
2 hot-swappable PSUs in 1+1 redundancy mode |
|
Management |
· Uses Huawei Hi1710 management chip and independent ports |
|
Operating Temperature |
5ºC to 45ºC (41ºF to 113ºF), ASHRAE Class A3 and A4 compliant |
|
Dimensions (W x D x H) |
RH1288 V3 with 3.5-inch hard disks: 436 mm x 748 mm x 43 mm RH1288 V3 with 2.5-inch hard disks: 436 mm x 708 mm x 43 mm |
