Huawei AR G3 AR1200 series Wireless router AR0M012WBA00 builds with 2 Gigabit Ethernet 10/100/1000 WAN, 8 Fast Ethernet 10/100 LAN ports,802.11b/g/n AP, 2 USB, 2 SIC. Huawi AR1220W series router designs for small enterprise or small offices and provide up to 200Mbps system bandwidth. The AR 1200 series router also integrates wireless controller functionality to support up to 12 Wireless APs(2 APs by default).The non-blocking architecture combines with multi-core CPU of AR1200 Series router deliver resilient bandwidth for data traffic to optimal system performance. The comprehensive security features, fault detection, and dynamic hot-swapping ensure safe, secure, scalable communications.
Quick Specs

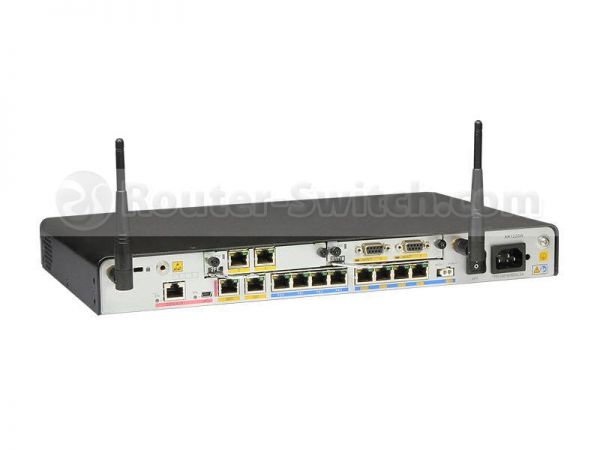

Figure 1 shows the appearance of Huawei Router – AR0M012WBA00.
?
Table 1 shows the Quick Specs.
|
Product Code |
AR0M012WBA00 |
|
Memory |
512 MB |
|
Flash |
256 MB |
|
Fixed port: |
8xFE(can be configured as WAN interfaces), 2xGE |
|
Extended slots |
2 SIC slots |
|
Power module type |
Pluggable power module |
|
Weight |
2.9 kg (6.39 lb) |
|
Dimensions (W x D x H) |
390.0 mm x 232.5 mm x 44.5 mm |
Product Details
Figure 2 shows the front panel of AR0M012WBA00.
?
Note:
|
① |
Two USB interfaces (host) |
|
② |
RST button |
|
③ |
WLAN button |
Figure 3?shows the back?panel of AR0M012WBA00.
?
Note:
|
① |
CON/AUX |
|
② |
Mini?USB |
|
③ |
Two GE combo interfaces |
|
④ |
Eight GE electrical interfaces |
|
⑤ |
PoE |
|
⑥ |
AC power jack |
|
⑦ |
Two SIC slots |
The?Cards
Table 2 shows the recommended elements for the AR0M012WBA00.
|
Model |
Description |
|
Ethernet LAN interface card |
|
|
AR-4ES2G-S |
4-Port 1000BASE-RJ45 L2 Ethernet Interface Card |
|
AR-9ES2-W |
8 Port 100M-RJ45 and 1 Port 1000M- RJ45 L2 Ethernet Interface Card |
|
WAN interface card |
|
|
AR-1E3T3M-W |
1-Port Channelized/Unchannelized E3/T3 WAN Interface Card |
|
xDSL interface card |
|
|
AR01SLV1XA |
1-Port VDSL2 over POTS WAN Interface Module |
|
xPDN interface card |
|
|
AR0MSOPP2A00 |
1-Port GPON/EPON Dual-mode Interface Card |
Compare to Similar Items
Table 3?shows the comparison between AR0M012WBA00?and AR0M12VWBA00.
|
Model |
AR0M012WBA00 |
AR0M12VWBA00 |
|
WAN Speed with Services |
200 Mbit/s |
200 Mbit/s |
|
Fixed WAN Ports |
2 x GE |
2 x GE |
|
Fixed LAN Ports |
8 x FE (can be configured as WAN interfaces) |
8 x FE (can be configured as WAN interfaces) |
|
Slots |
SIC slots: 2 WSIC slots (default/max): 0/1 |
|
|
Memory |
512 MB |
512 MB |
Get more information
Do you have any?question?about?the?AR0M012WBA00
Contact us now via Live Chat or [email protected].
Specification
AR0M012WBA00 Datasheet
AR0M012WBA00 Specifications |
|
|
Hardware |
|
|
WAN speed with services*** |
200 Mbit/s |
|
Firewall Performance (large packet) |
900 Mbit/s |
|
Device Switching Capacity |
8 Gbit/s |
|
Slot Switching Bandwidth |
SIC & WSIC slots 2 Gbit/s |
|
Number of Recommended Users |
100 |
|
Fixed WAN Ports |
2 x GE |
|
Fixed LAN Ports |
8 x FE (can be configured as WAN interfaces) |
|
SIC Slots |
2 |
|
WSIC Slots (default/max) |
0/1 |
|
DSP Slots |
– |
|
Wi-Fi |
802.11b/g/n |
|
USB 2.0 Ports |
2 |
|
Mini-USB Ports |
1 |
|
Serial Auxiliary/Console Port |
1 |
|
Memory |
512 MB |
|
Flash |
256 MB |
|
Max. Power |
60W |
|
PoE Power |
External 100W |
|
AC Power |
100V to 240V |
|
Frequency |
50 Hz/60 Hz |
|
DC Power |
– |
|
Dimensions (H x W x D) |
44.5 mm x 390 mm x 220 mm |
|
Weight |
2.9 kg (without interface cards) |
|
Ambient Temperature |
0°C to 45°C |
|
Relative Humidity |
5% to 95% (non-condensing) |
|
Software |
|
|
Basic Features |
DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and Sub interface management |
|
Voice |
RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC (only voice models support voice features) |
|
WLAN (AP) |
AP management, WLAN QoS (WMM), WLAN security (WEP/WPA/WPA2/key management), WLAN radio management (802.11b/g/n), and WLAN user management (only WLAN models support WLAN AP features) |
|
WLAN (AC) |
AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management） |
|
3G |
3G Interface card (WCDMA) |
|
LTE |
LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s) |
|
LAN |
IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP |
|
IPv4 Unicast Routing |
Routing policy, static route, RIP, OSPF, IS-IS, and BGP |
|
IPv6 Unicast Routing |
Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+ |
|
Multicast |
IGMPv1/v2/v3, PIM SM, PIM DM, and MSDP |
|
MPLS |
LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR |
|
VPN |
IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN |
|
QoS |
DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, WLAN QoS, FR QoS, and Smart Application Control (SAC) |
|
Security |
ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, and IP source tracing |
|
Management and Maintenance |
Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, Auto-Config, deployment using USB disk, and CLI |
**Note: The maximum number of slots includes the number of combined slots
***Note: Service performance depending on specific feature configuration
